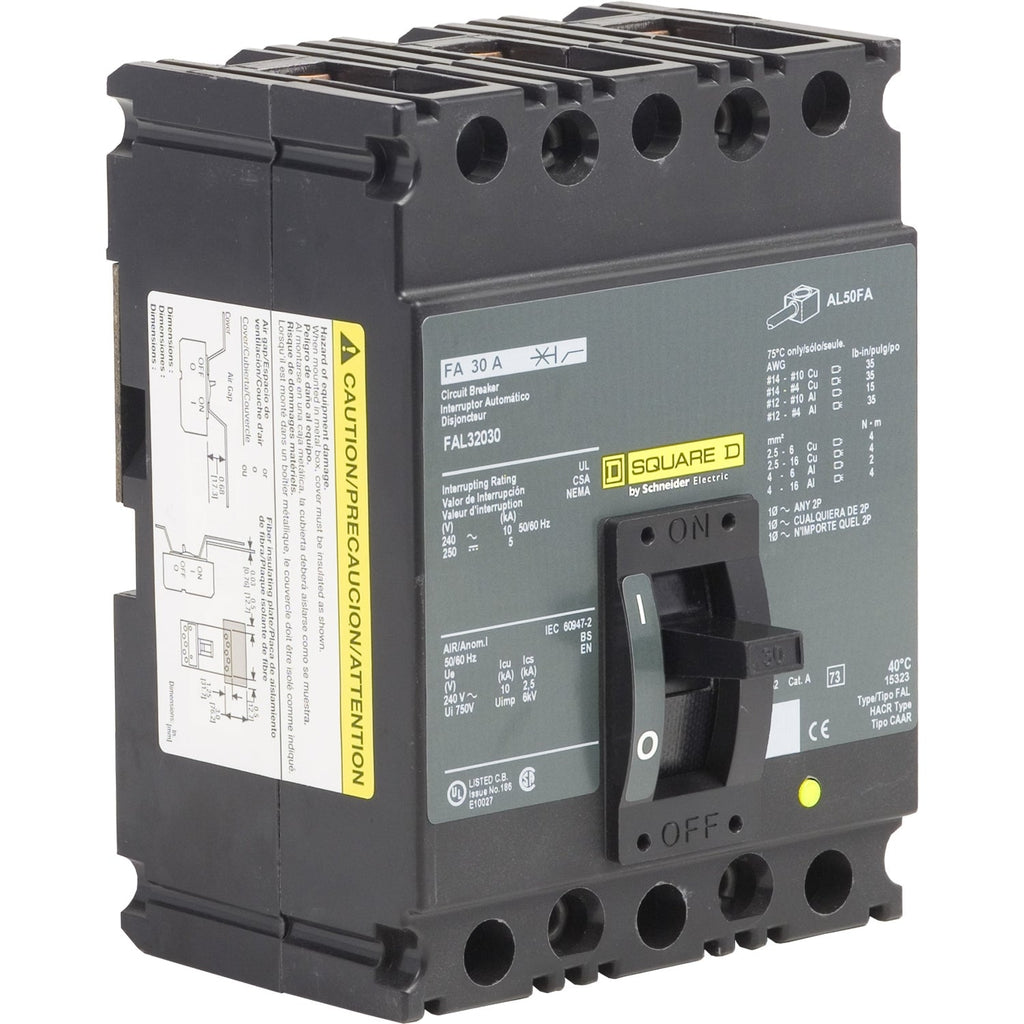

FAL32030 - Square D 30A 240VAC 3 Pole F Frame Molded Case Circuit Breaker Bolt-On

FAL32030

FAL32030 is a Square D 3 Pole molded case circuit breaker rated for 30 Amps and 240VAC/250VDC operation.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, a 10kA interrupt rating at 240VAC, and a bolt-on mounting type.

Key Specifications
• Manufacturer: Square D
• Part Number: FAL32030
• Amperage: 30 Amps
• Voltage Rating: 240VAC / 250VDC
• Poles: 3
• Frame Type: F Frame (FAL Series)
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240VAC, 5kA at 250VDC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL, CSA, CE Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL32030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901422990
• GTIN : 00785901422990
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4
• Certification : UL LISTED
• Wire Size : 12 AWG to 4 AWG, 14 AWG to 4 AWG, Aluminum/Copper
