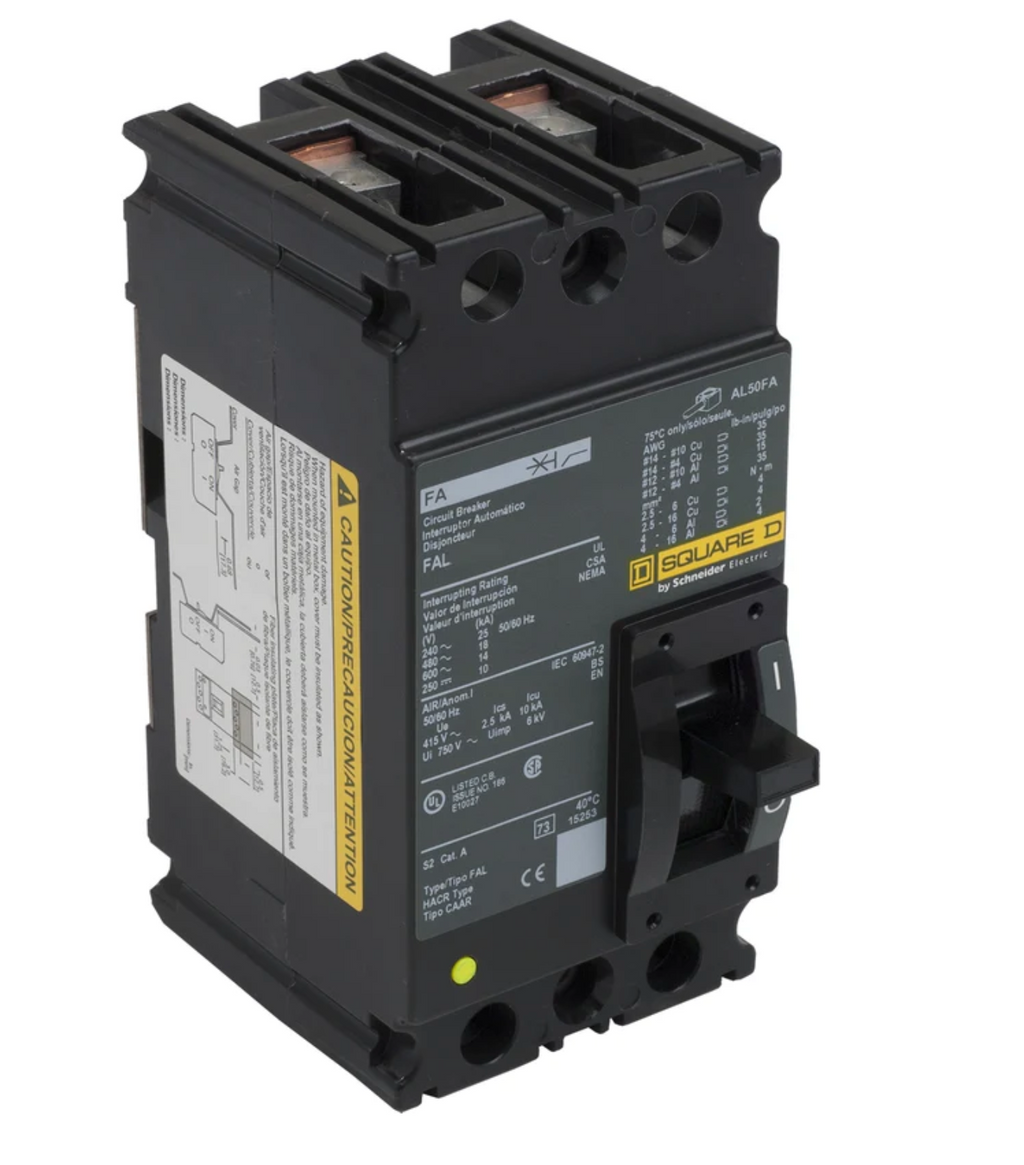

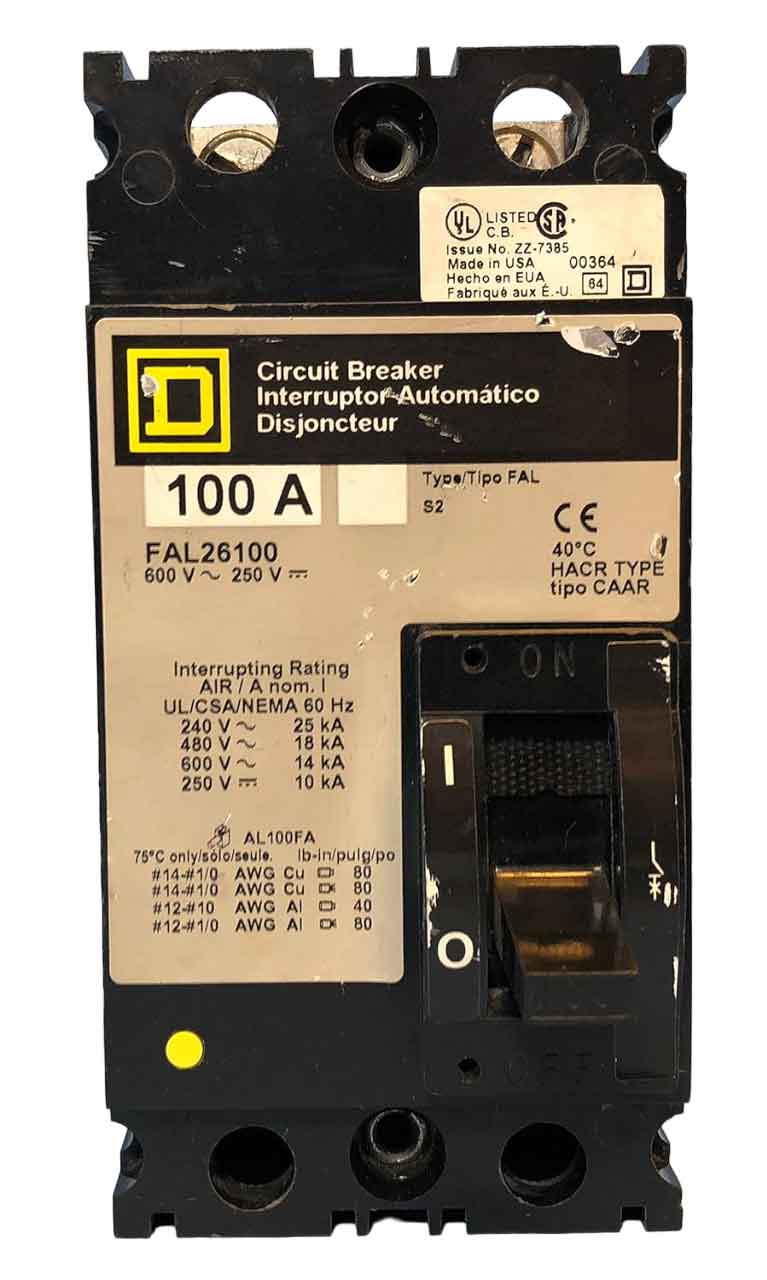

FAL26100 - Square D 100A 600V 2 Pole Feed-Thru Molded Case Circuit Breaker

FAL26100

FAL26100 is a Square D 2 pole, 100 amp, 600 volt feed-thru molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V and includes line and load side lug terminals. The breaker is designed for unit mount installation and is part of the FAL series frame.

• Amperage: 100A
• Voltage: 600V AC
• Poles: 2
• Frame Type: FAL
• Interrupt Rating: 18kA @ 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Unit Mount
• Feed-Thru Design
• Line and Load Side Lug Terminals
• Single Phase
• Manufacturer: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL26100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901255055
• GTIN : 00785901255055
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
• Certification : CSA-UL LISTED
