Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL26090

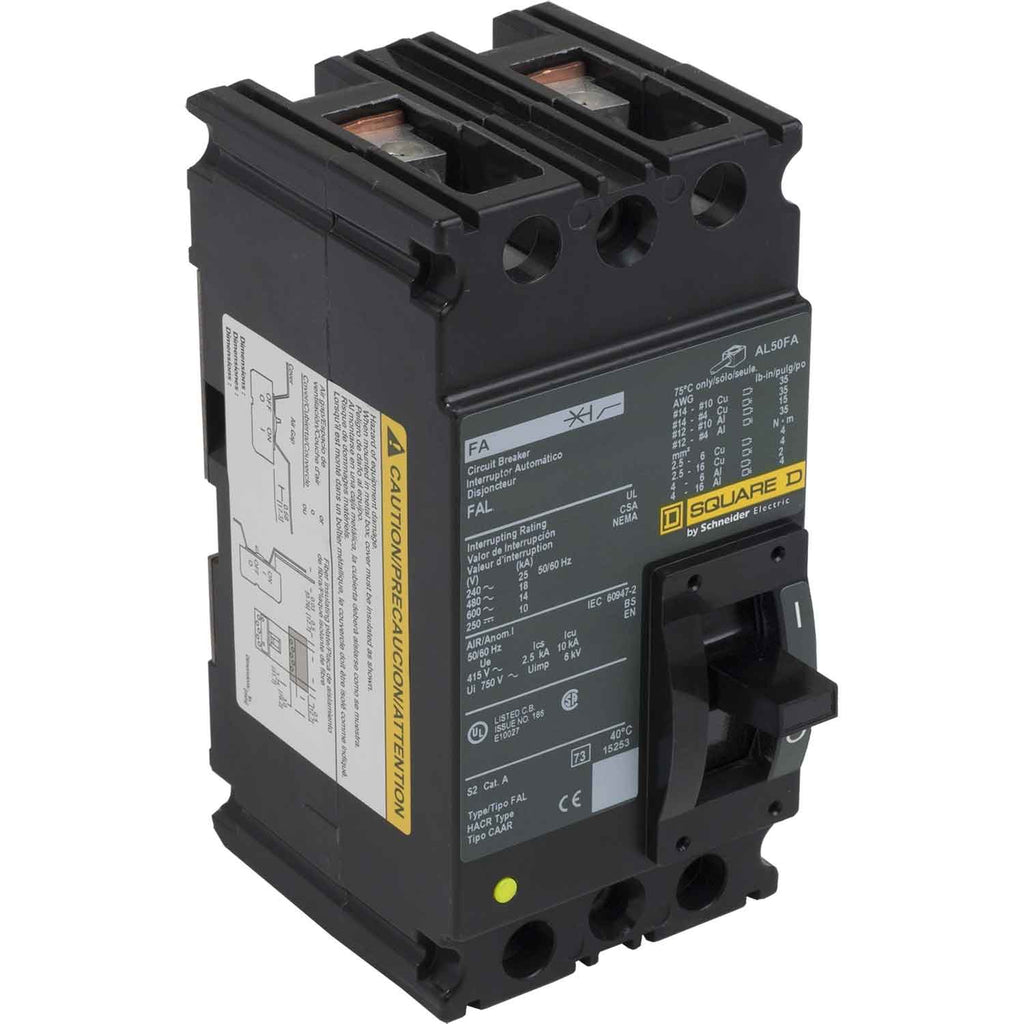

FAL26090 is a Square D molded case circuit breaker designed for 600V applications with a 90 amp rating and 2 poles.This FAL series breaker features thermal magnetic trip technology and a feed-thru mounting type, providing reliable circuit protection. It has an interrupting rating of 18kA at 480V and includes line and load side lug terminals. The breaker is UL listed and suitable for industrial and commercial electrical systems.
- Type: FAL Series Molded Case Circuit Breaker
- Amperage: 90 Amps
- Voltage Rating: 600 Volts AC
- Poles: 2 Pole
- Mounting Type: Feed-Thru
- Interrupting Capacity: 18kA at 480V
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Line and Load Side Lug Terminals
- Frame: FAL
Specifications
- Part Number: FAL26090
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901183907
- GTIN : 00785901183907
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 3
