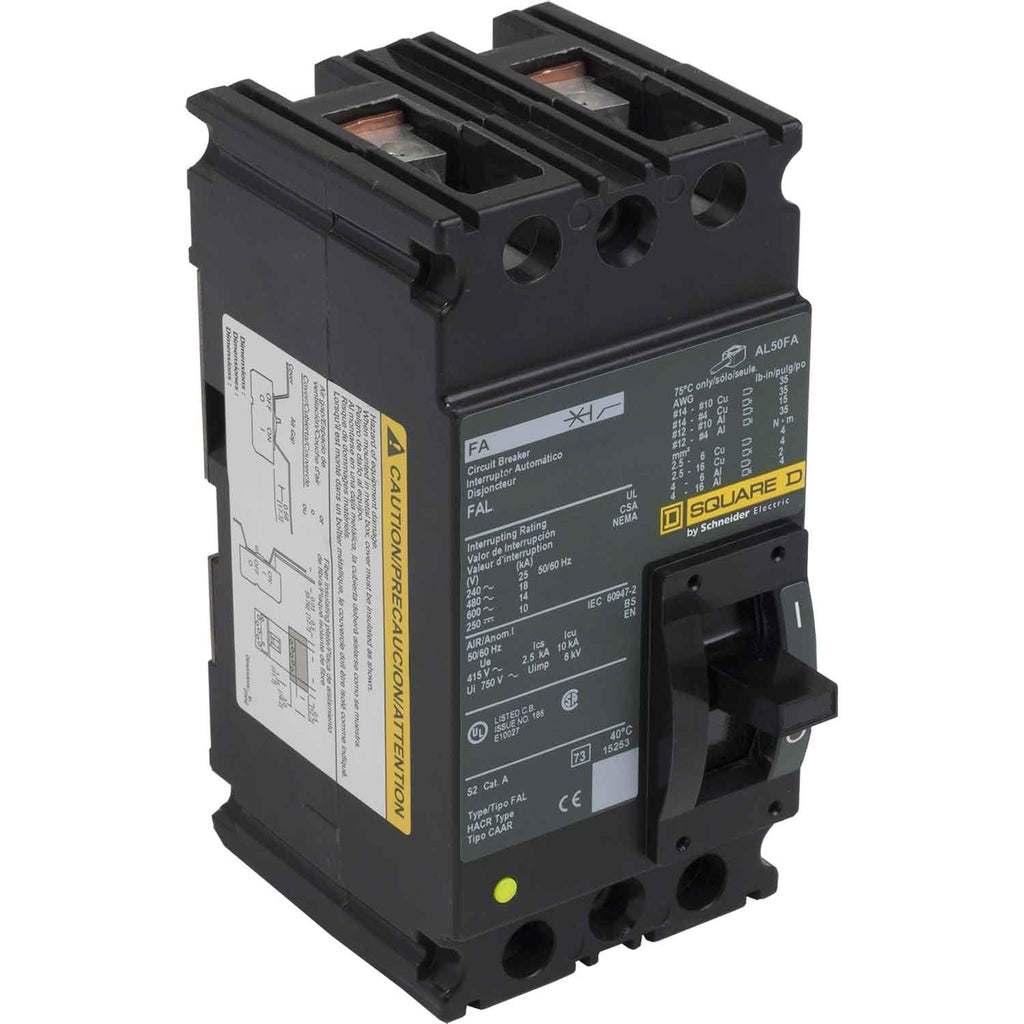

FAL26080 - Square D 80A 600V 2 Pole Molded Case Circuit Breaker, FAL Frame, Feed-Thru, Thermal Magnetic, 18kA@480V

FAL26080

FAL26080 is a 2 pole, 80 amp, 600V molded case circuit breaker from Square D, designed for reliable protection in commercial and industrial applications. This FAL series breaker features a feed-thru mounting style, thermal magnetic trip unit, and a robust interrupting rating for dependable circuit protection. Engineered for use in a wide range of electrical systems, the FAL26080 offers long-time and instantaneous trip functions, line and load lug terminals, and is suitable for both new installations and upgrades. Its compact design and high interrupting capacity make it ideal for demanding environments.

• Part Number: FAL26080
• Manufacturer: Square D
• Amperage: 80A
• Voltage: 600V AC
• Poles: 2
• Mounting Type: Feed-Thru
• Interrupt Rating: 18kA @ 480V
• Series/Frame: FAL
• Frame Size: F
• Trip Unit: Thermal Magnetic, LI (Long-Time and Instantaneous)
• Terminal Type: Line and Load Lug
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL26080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901848684
• GTIN : 00785901848684
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
