Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL26015

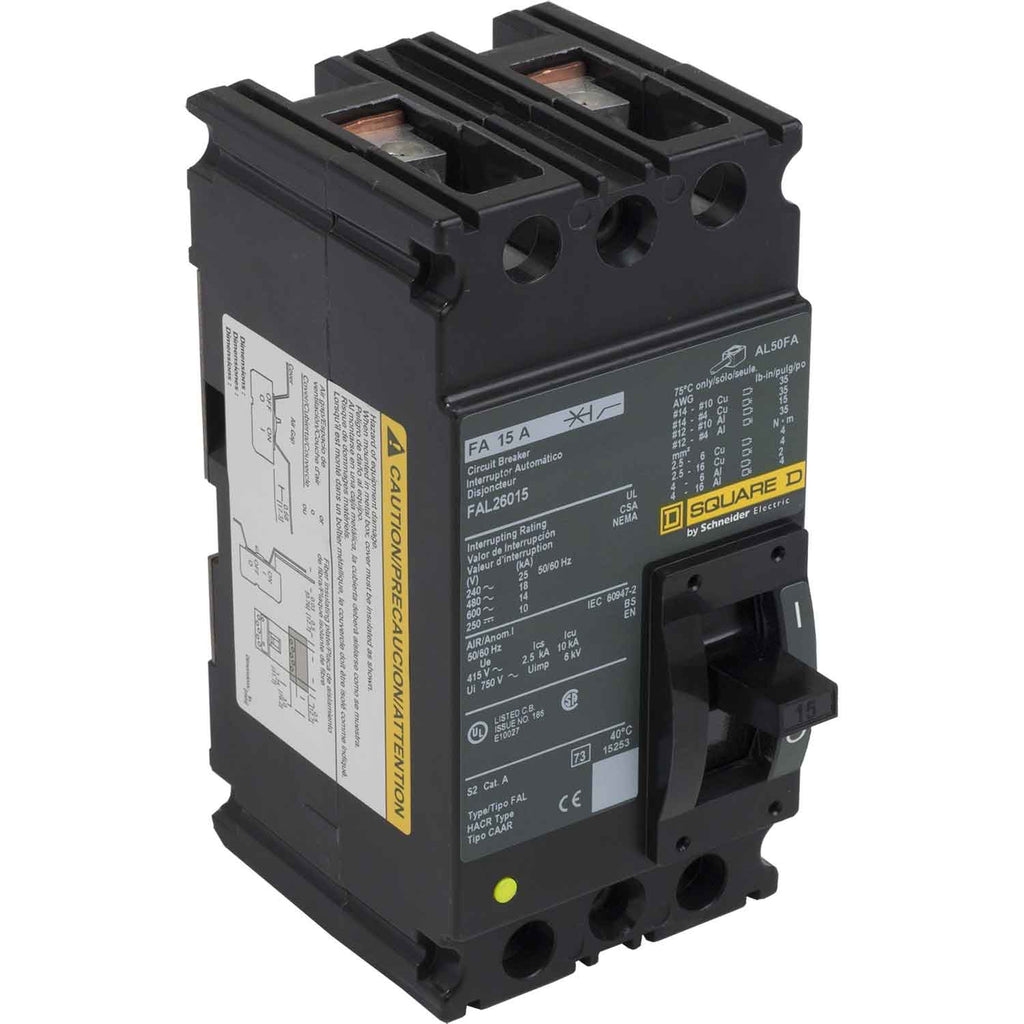

FAL26015 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 15 Amps and 600VAC operation.
This FAL Series breaker features a feed-thru mounting type with line and load side lug terminals. It provides an interrupting rating of 18kA at 480V and includes LI (Long-Time and Instantaneous) trip functions. The breaker is UL and CSA certified and meets HACR standards, making it suitable for reliable circuit protection in industrial and commercial applications.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 600VAC
- Poles: 2
- Mounting Type: Unit (Feed-Thru)
- Interrupt Rating: 18kA at 480V
- Series/Frame: FAL
- Trip Unit: Thermal Magnetic with LI functions
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA
- Standards: HACR
- Phase: Single Phase
- Part Number: FAL26015
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
- UPC : 785901254973
- GTIN : 00785901254973
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 3.501
- Certification : UL LISTED-CSA
