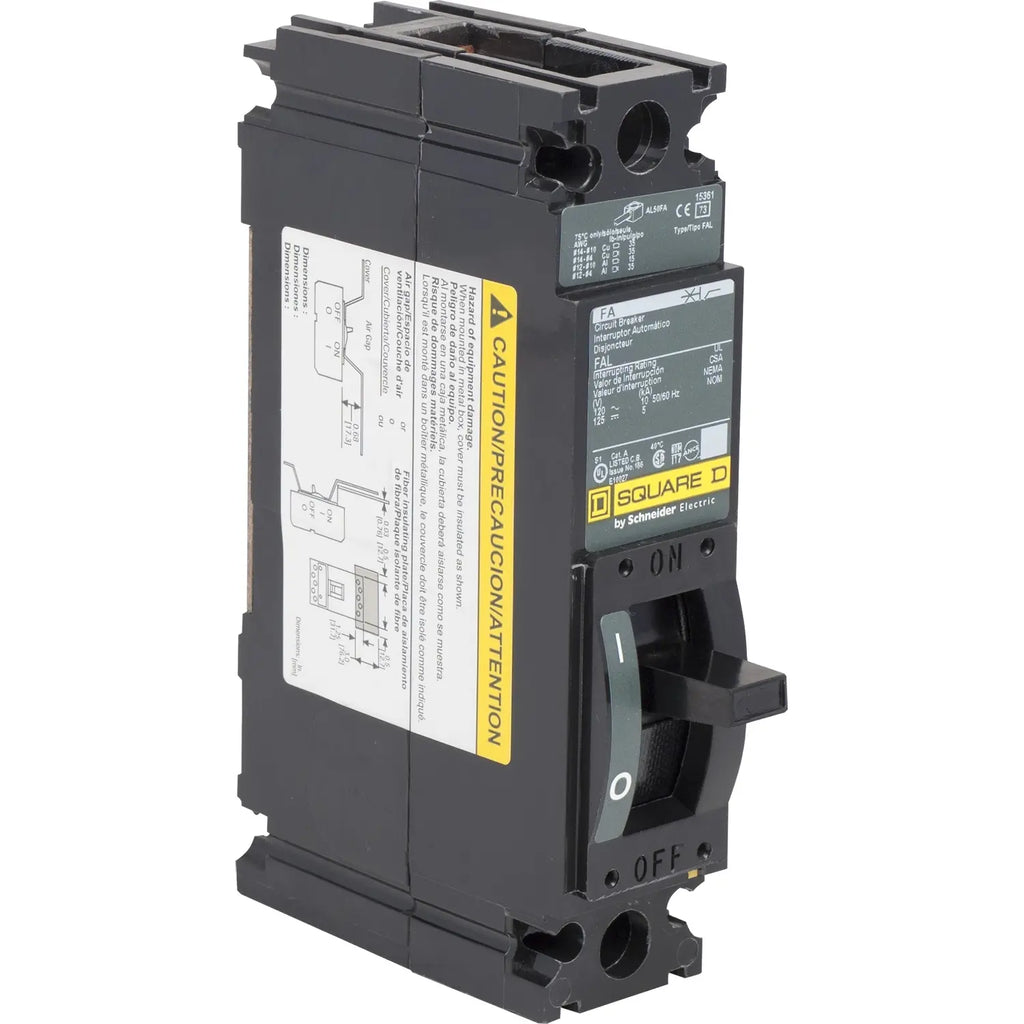

FAL14070 - Square D 70 Amp 277 Volt 1 Pole Thermal Magnetic Molded Case Circuit Breaker

FAL14070

FAL14070 is a Square D 70 Amp, 277 Volt, 1 Pole thermal magnetic molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a Type FA frame with thermal magnetic trip, suitable for use in 277 VAC and 125 VDC applications. It has a breaking capacity of 18kA at 277V AC and 10kA at 125V DC, with lug-type line and load side terminations. The compact dimensions are approximately 1.5 inches wide, 4.13 inches deep, and 6 inches high.

Key Specifications
• Manufacturer: Square D by Schneider Electric
• Part Number: FAL14070
• Amperage: 70 Amp
• Voltage Rating: 277 VAC / 125 VDC
• Number of Poles: 1 Pole
• Trip Type: Thermal Magnetic
• Interrupt Rating: 18kA @ 277V AC, 10kA @ 125V DC
• Mounting Type: Molded Case
• Frame/Series: Type FA
• Line/Load Termination: Lugs
• Dimensions (W x D x H): 1.5 x 4.13 x 6 inches
• Certifications: UL Listed (implied by manufacturer standard)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FAL14070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 785901183754
• GTIN : 00785901183730
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Wire Size : AWG 14, AWG 1/0 Copper)1, AWG 12, AWG 1/0 Aluminium)1
