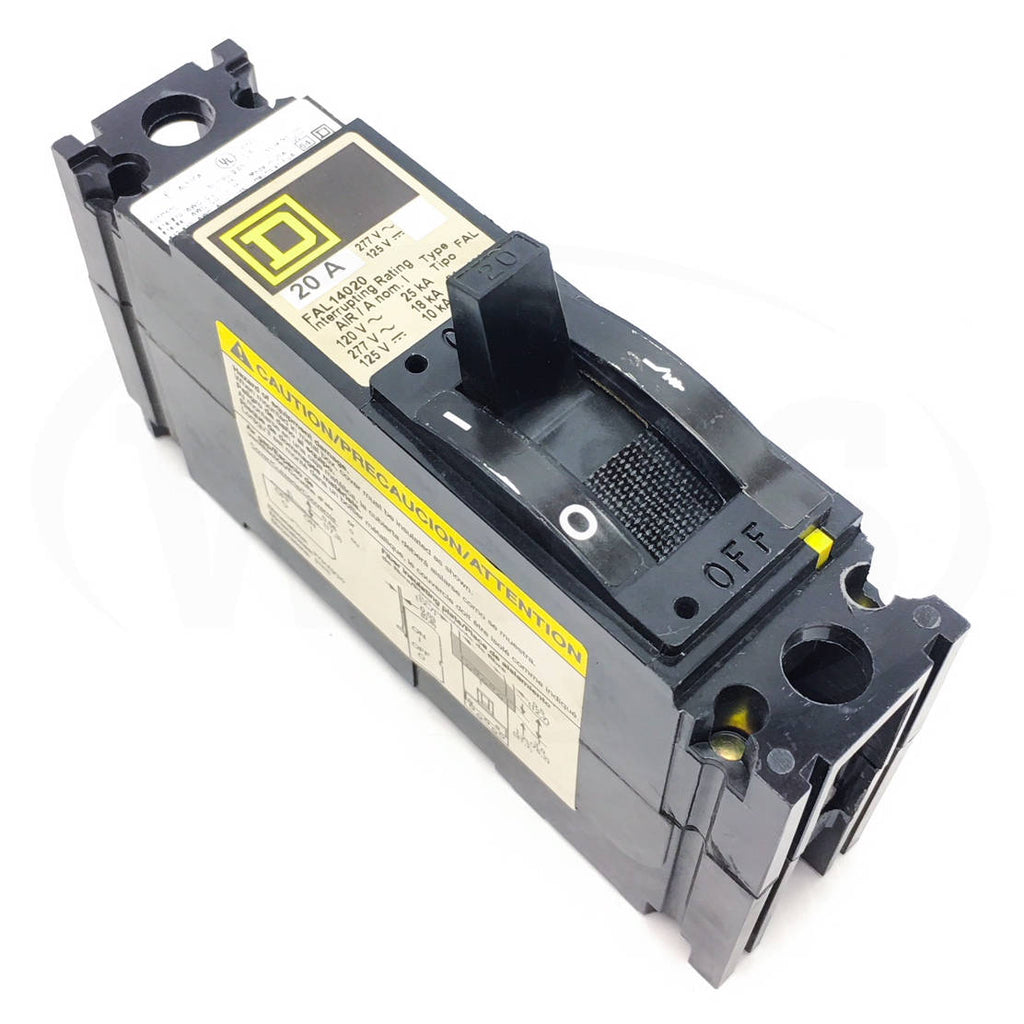

FAL14020 - Square D 20A 277V 1-Pole Molded Case Circuit Breaker FAL Series

FAL14020

FAL14020 is a Square D molded case circuit breaker designed for 20 amp, 277 volt, single-pole applications in the FAL Series.This circuit breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It supports feed-thru mounting with line and load lug terminals and has an interrupt rating of 18kA at 277V. The breaker is compact with dimensions approximately 4.13 x 1.5 x 6.4 inches and is UL listed for safety and reliability.

Key Specifications
• Manufacturer: Square D
• Part Number: FAL14020
• Amperage: 20A
• Voltage: 277V AC
• Poles: 1
• Series/Frame: FAL Series
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Feed-Thru
• Interrupt Rating: 18kA @ 277V
• Dimensions: 4.13 x 1.5 x 6.4 inches
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL14020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 040892869064
• GTIN : 00040892869064
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 0.192
• Certification : UL, CSA
