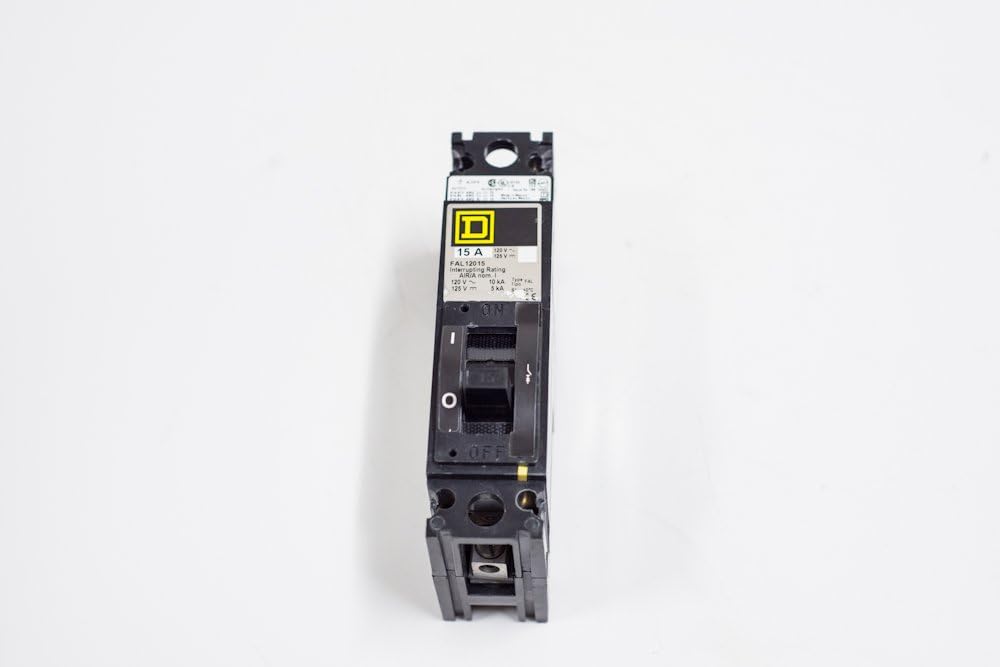

FAL14015 - Square D 15A 277V 1 Pole Feed-Thru Molded Case Circuit Breaker

FAL14015

FAL14015 is a 1 pole, 277V, 15A molded case circuit breaker designed for feed-thru applications with a thermal magnetic trip unit and an interrupt rating of 18kA@277V. This Square D FAL14015 breaker is part of the FAL Series, featuring a compact design and reliable protection for commercial and industrial power distribution systems. It offers long-time and instantaneous trip functions, line and load side lug terminals, and is suitable for use in panels requiring feed-thru mounting.

• Part Number: FAL14015
• Manufacturer: Square D
• Series/Frame: FAL Series
• Amperage: 15A
• Voltage: 277V AC
• Poles: 1
• Mounting Type: Feed-Thru
• Interrupt Rating: 18kA@277V
• Trip Unit: Thermal Magnetic
• Protection: Long-Time and Instantaneous
• Terminal Type: Line and Load Side Lug
• Standards: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL14015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901648994
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2.006
• Certification : UL, CSA
