Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FAF22015V

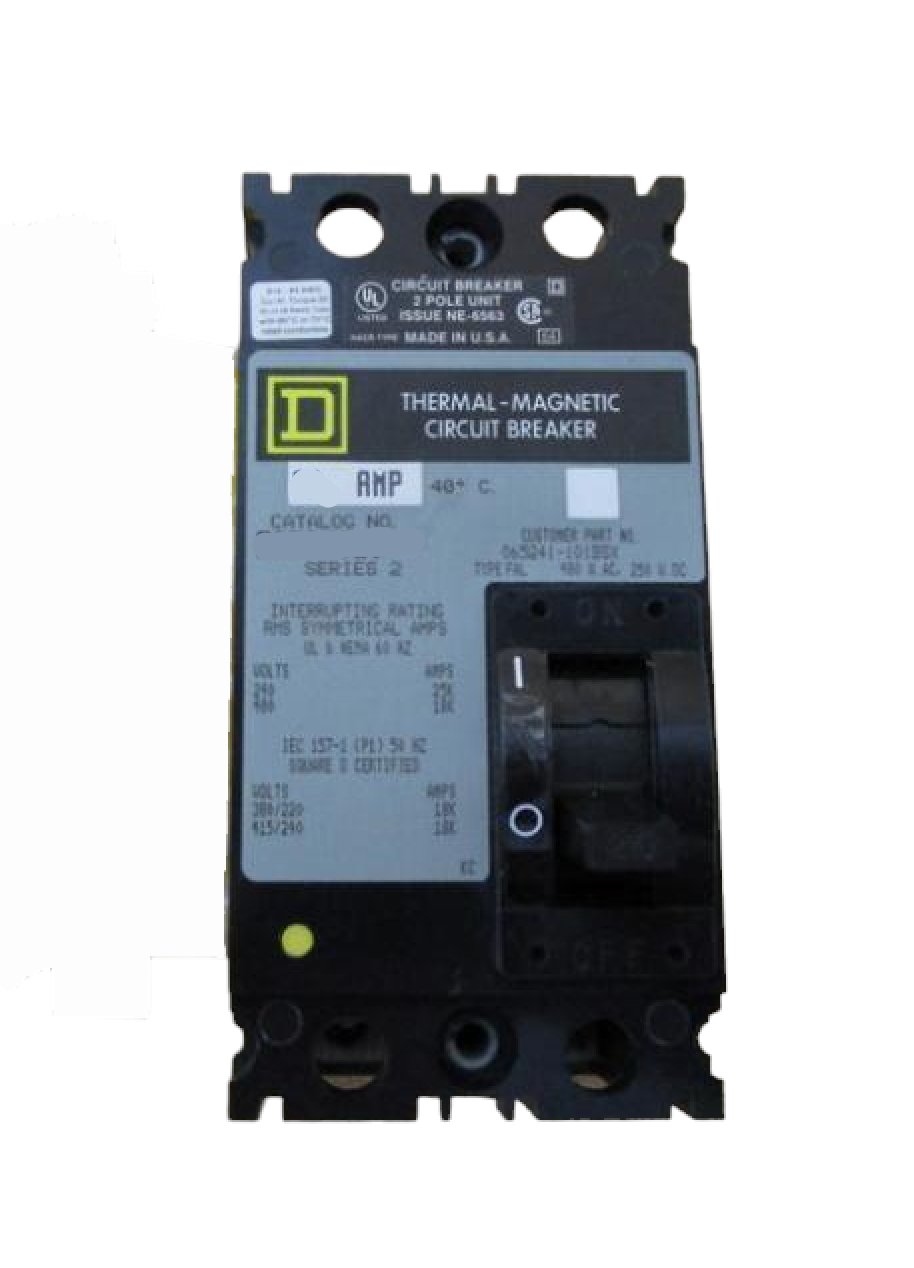

FAF22015V is a 240V, 15-amp, 2-pole bolt-on molded case circuit breaker manufactured by Square D. This thermal-magnetic trip unit breaker is designed for use in I-Line panelboards and switchboards, providing reliable overload and short-circuit protection for residential and light commercial applications. The breaker features a standard interrupting rating of 10kA at 240V and is UL and CSA approved for safe operation.
- Voltage Rating: 240V AC
- Amperage: 15A
- Poles: 2
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupting Rating: 10kA at 240V
- Frame Size: 100A
- Series: FA
- Panelboard Class: 650/651 I-Line
- Certifications: UL, CSA
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: FAF22015V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAF Series
- Type : FAF
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 3
