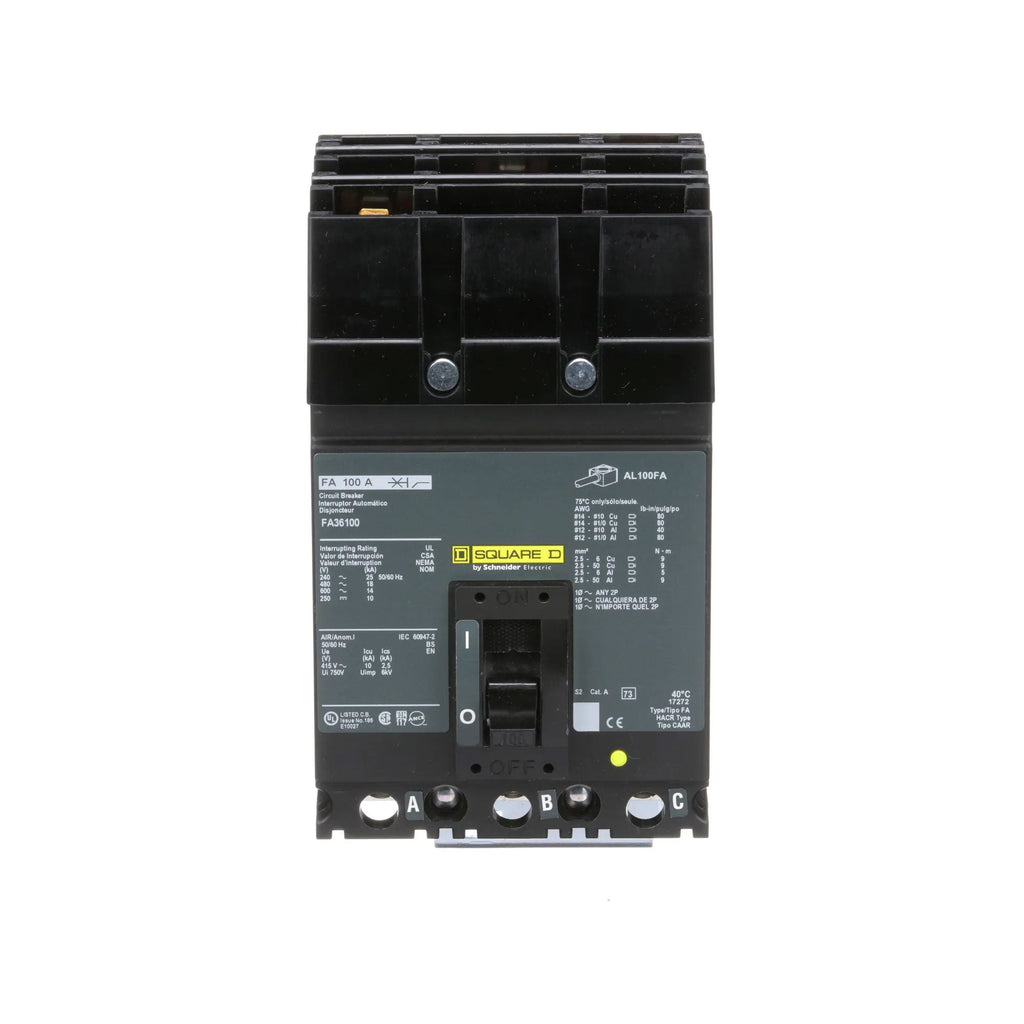

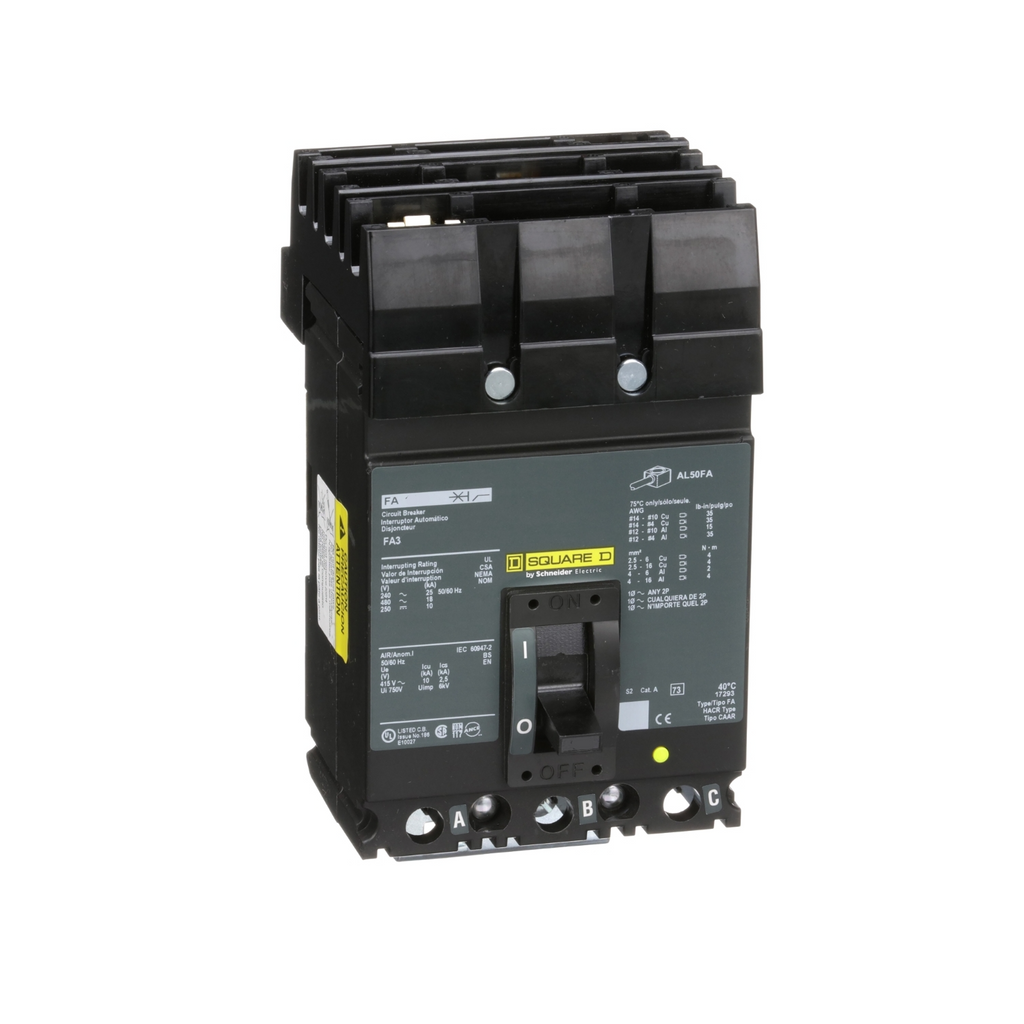

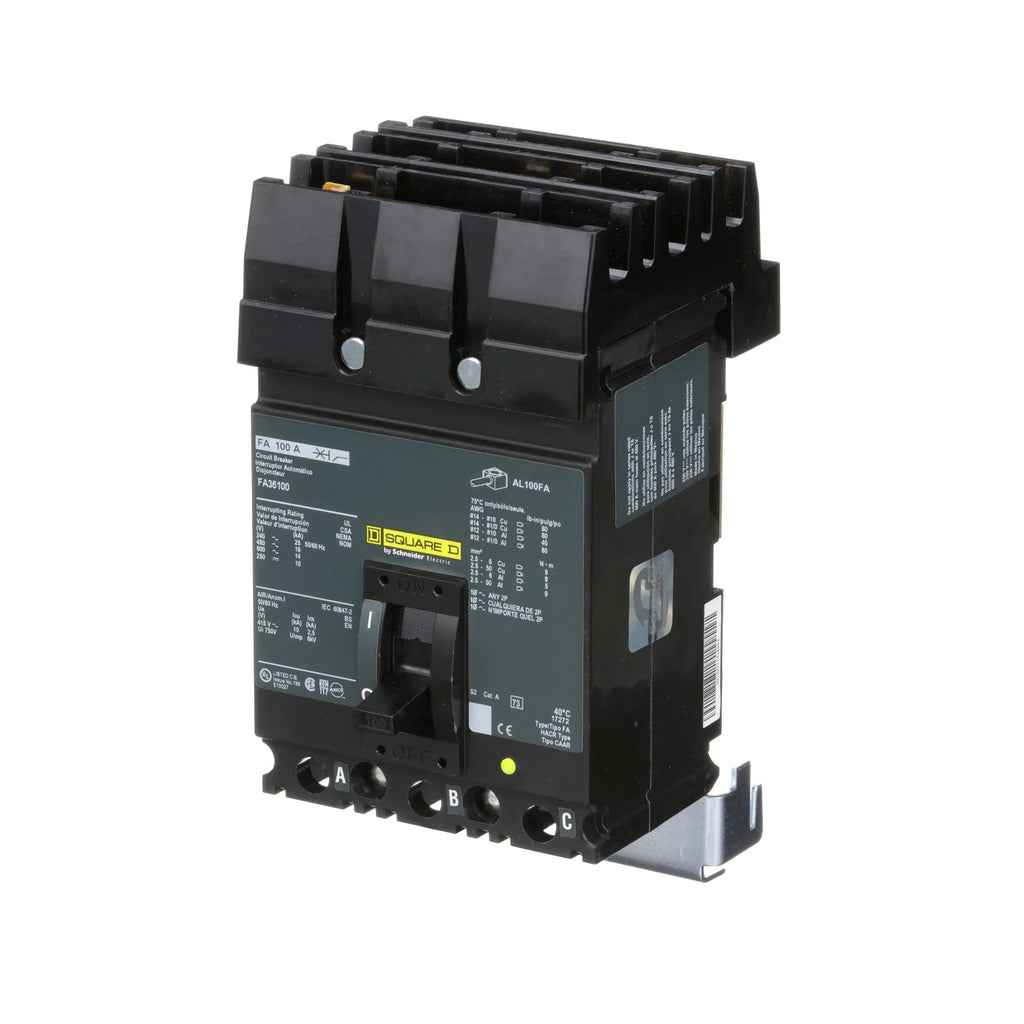

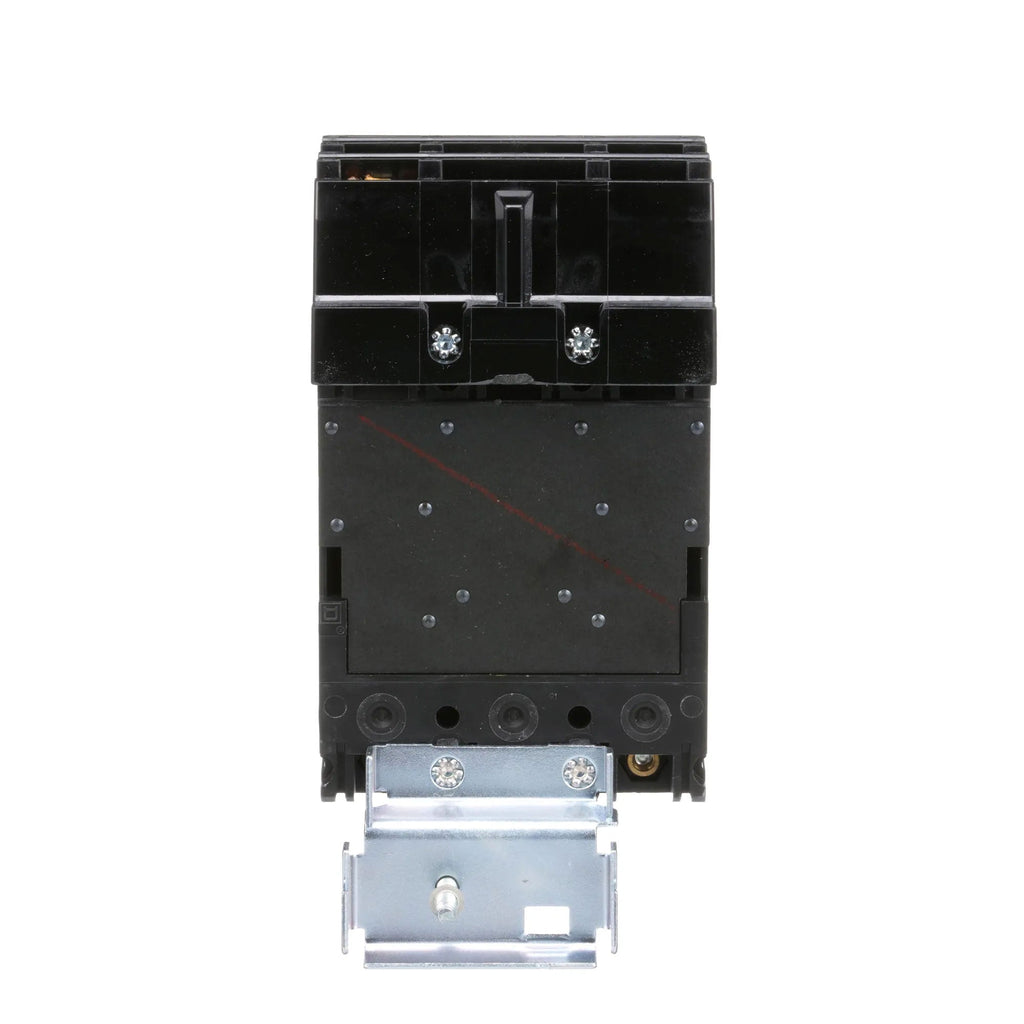

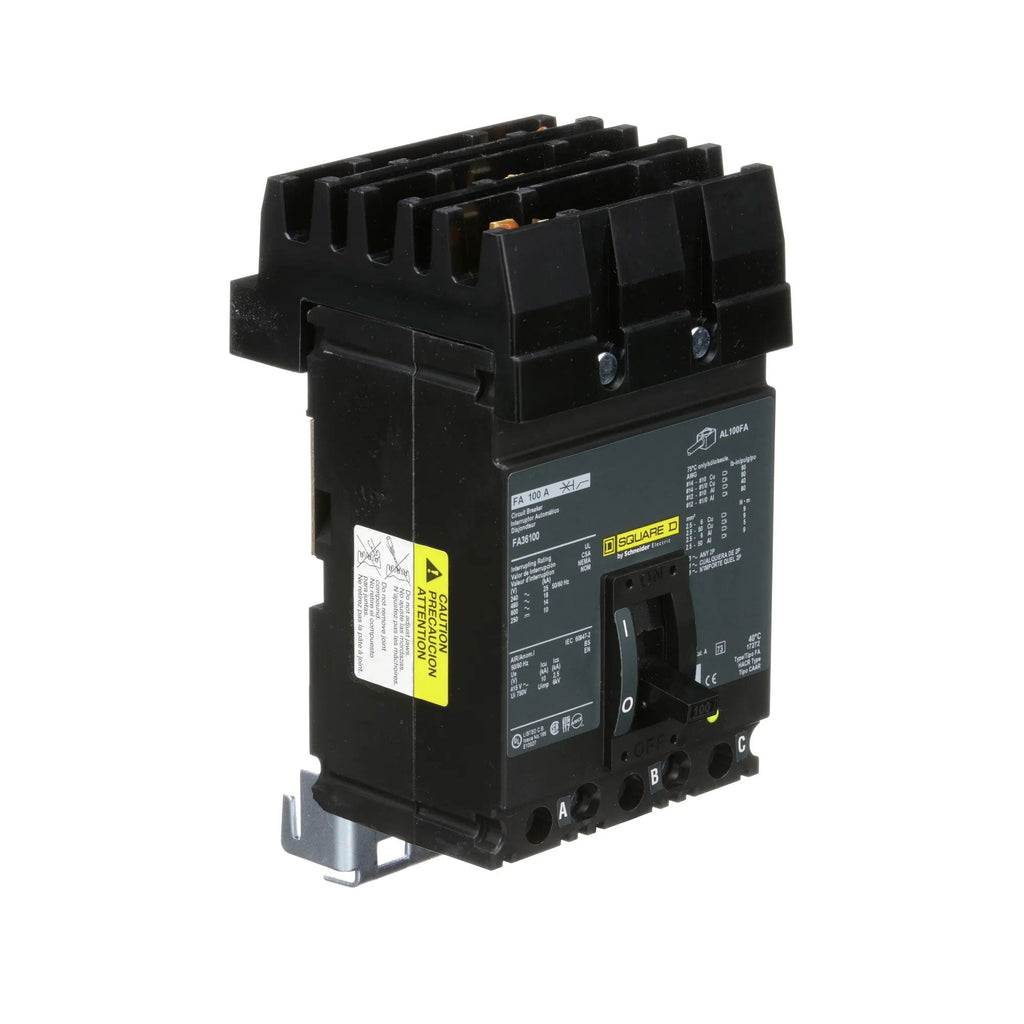

FA36100 - Square D 100 Amp 600V 3 Pole I-Line Molded Case Circuit Breaker FA Frame

FA36100

FA36100 is a Square D 3 Pole 100 Amp 600 Volt I-Line molded case circuit breaker designed for reliable thermal magnetic protection.This FA frame circuit breaker features a 3-pole configuration with a 600VAC voltage rating and an 18kA interrupting rating at 480V. It uses an I-Line style plug-in connection and includes long-time and instantaneous trip functions for enhanced circuit protection. Certified to UL and CSA standards, it is suitable for industrial and commercial applications requiring robust circuit interruption.

• Manufacturer: Square D
• Part Number: FA36100
• Amperage: 100 Amps
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 18kAIC at 480V
• Frame Type: FA
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL, CSA
• Terminal Connection: Load Side Lug
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901429487
• GTIN : 00785901429487
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
