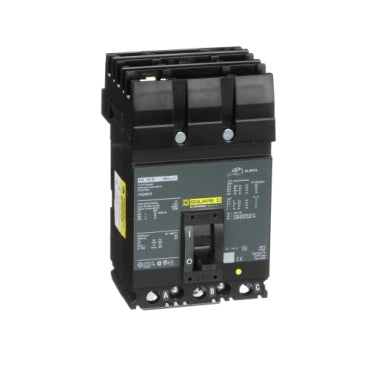

FA34020G - Square D 20 Amp 480V 3 Pole Circuit Breaker I-Line Plug-In Thermal Magnetic FA Frame

FA34020G

FA34020G is a 3 pole, 20 amp thermal magnetic molded case circuit breaker from Square D designed for I-Line panelboards.FA34020G features a 480VAC voltage rating, 18kA interrupting rating at 480V, and a plug-in mounting type. It includes long-time and instantaneous trip functions and is UL and CSA certified. This breaker is part of the FA frame series and supports 3-phase ABC connection.

• Manufacturer: Square D
• Part Number: FA34020G
• Amperage: 20A
• Voltage Rating: 480VAC / 250VDC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 18kA at 480V
• Frame Type: FA
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Certifications: UL Listed, CSA Certified, HACR Rated
• Dimensions (HxWxD): 6.4 x 4.5 x 4.13 inches
• Phase: 3 (ABC)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with ground fault shunt trip wiring protection

Specifications

• Part Number: FA34020G
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 12
