FA24100AC - Square D 100 Amp 2 Pole 480VAC I-Line Circuit Breaker Thermal Magnetic F Frame

FA24100AC

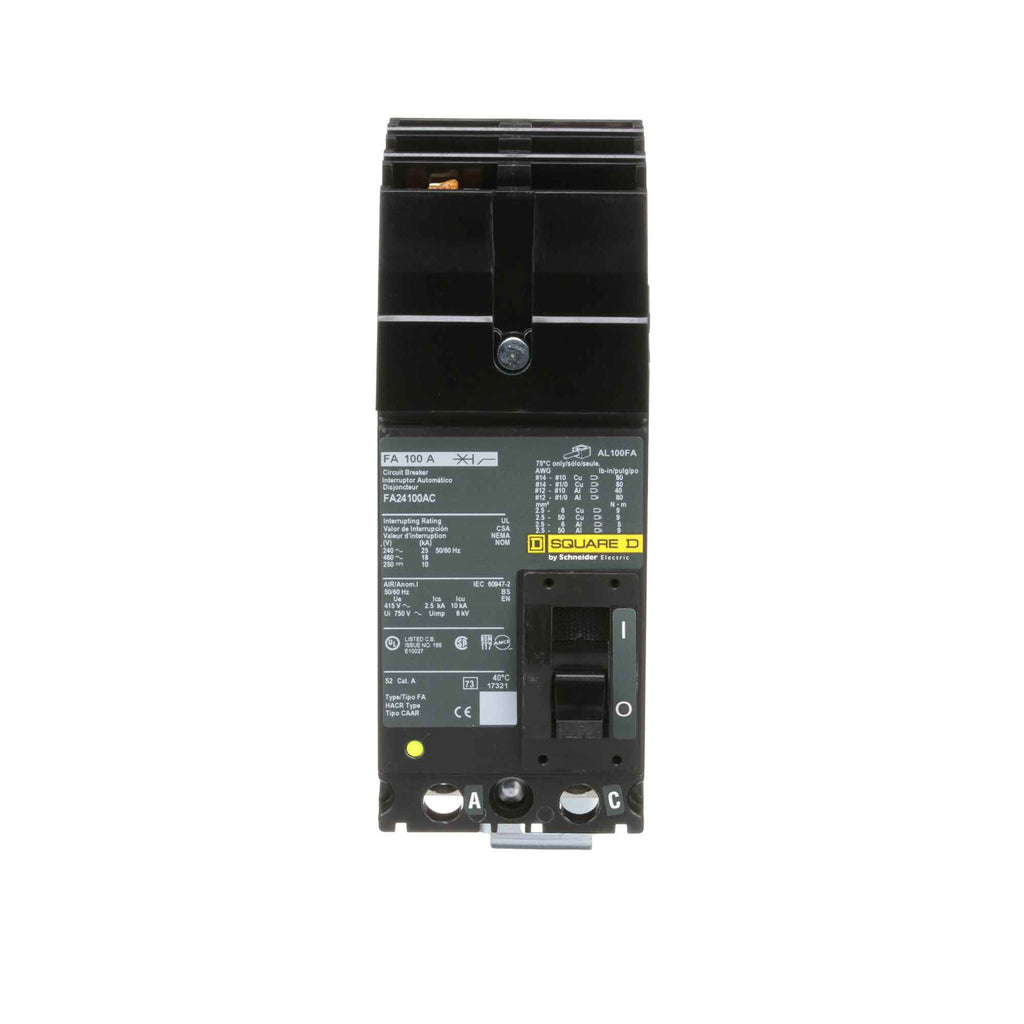

FA24100AC is a Square D 100 Amp, 2 Pole, 480VAC I-Line circuit breaker with thermal magnetic trip protection and F frame type.This Square D FA24100AC circuit breaker features a 2 pole configuration designed for single-phase power distribution applications. It has a voltage rating of 480VAC and an interrupting rating of 18kA at 480V. The breaker uses an I-Line style plug-in mounting system and operates with thermal magnetic trip units providing long-time and instantaneous protection. It is UL and CSA certified and suitable for use in class 650/651 I-Line panel boards and switchboards.

• Amperage: 100 Amp
• Voltage: 480VAC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA at 480V
• Frame Type: F
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Phase: Single Phase
• Certifications: UL, CSA
• Terminal Wire Size: 14 to 4 AWG Copper, 12 to 4 AWG Aluminum
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA24100AC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901253723
• GTIN : 00785901253723
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
