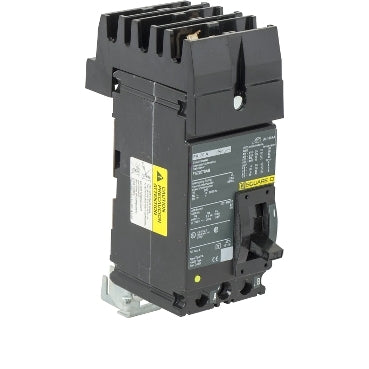

FA22090AB - Square D 90A 240V 2-Pole Thermal Magnetic I-Line Circuit Breaker

FA22090AB

FA22090AB is a Square D 2-pole circuit breaker rated for 90 amps and 240 volts, designed for reliable thermal magnetic protection.This FA series breaker features an I-Line style plug-in mounting with a frame type F, providing a 10kA interrupting rating at 240V. It includes long-time and instantaneous trip functions and is UL and CSA certified for safety and performance.

• Manufacturer: Square D
• Series: FA
• Amperage: 90A
• Voltage: 240V
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupting Rating: 10kA at 240V
• Frame Type: F
• Trip Unit: Thermal Magnetic with LI functions
• Certifications: UL, CSA
• Phase: Single
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA22090AB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901184881
• GTIN : 00785901184881
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
