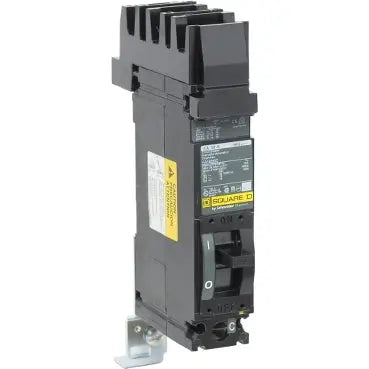

FA14090C - Square D 90A 277V 1 Pole I-Line Style Plug-In Circuit Breaker

FA14090C

FA14090C is a Square D I-Line style plug-in circuit breaker rated for 90 amps and 277 volts with a single pole configuration.FA14090C features thermal magnetic trip functions with long time and instantaneous trip capabilities. It is designed for use in residential, commercial, and industrial applications and provides an interrupt rating of 18kA at 277V. This breaker is part of the legacy Square D FA frame series and connects via a C phase I-Line style plug-in mounting.

• Manufacturer: Square D
• Amperage: 90A
• Voltage: 277V AC
• Poles: 1
• Frame Type: FA (I-Line style)
• Interrupt Rating: 18kA at 277V
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Mounting Type: I-Line style plug-in
• Phase: Single phase (C phase connection)
• Application: Residential, commercial, industrial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA14090C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 277
• Amperage : 90
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
• Wire Size : AWG 14, AWG 1/0 (Copper) 1 Cable(s), AWG 12, AWG 1/0 (Aluminium) 1 Cable(s)
