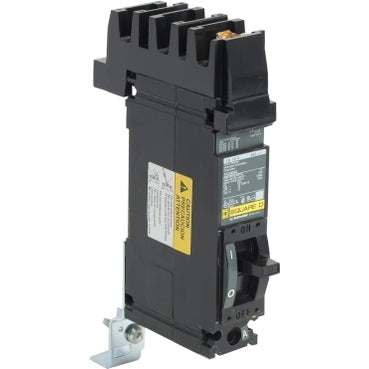

FA14050A - Square D 50A 1-Pole Circuit Breaker 480Y/277V I-Line Frame

FA14050A

FA14050A is a Square D 50 Amp, 1 Pole circuit breaker designed for reliable protection in electrical distribution systems.FA14050A features a thermal magnetic trip unit and is rated for 480Y/277V AC operation with an interrupting rating up to 18 kA at 240/277 VAC. It mounts on an I-Line frame and provides robust overload and short circuit protection for industrial and commercial applications.

• Amperage: 50 Amps
• Voltage Rating: 480Y/277 VAC
• Poles: 1 Pole
• Mounting Type: I-Line Frame
• Interrupting Rating: 18 kA at 240/277 VAC (UL/CSA/NOM)
• Trip Unit: Thermal Magnetic
• Series/Frame: FA Series
• Certifications: UL, CSA, NOM
• Frequency: 50/60 Hz
• DC Voltage Rating: 125 VDC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA14050A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 277
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901648932
• GTIN : 00785901648932
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
