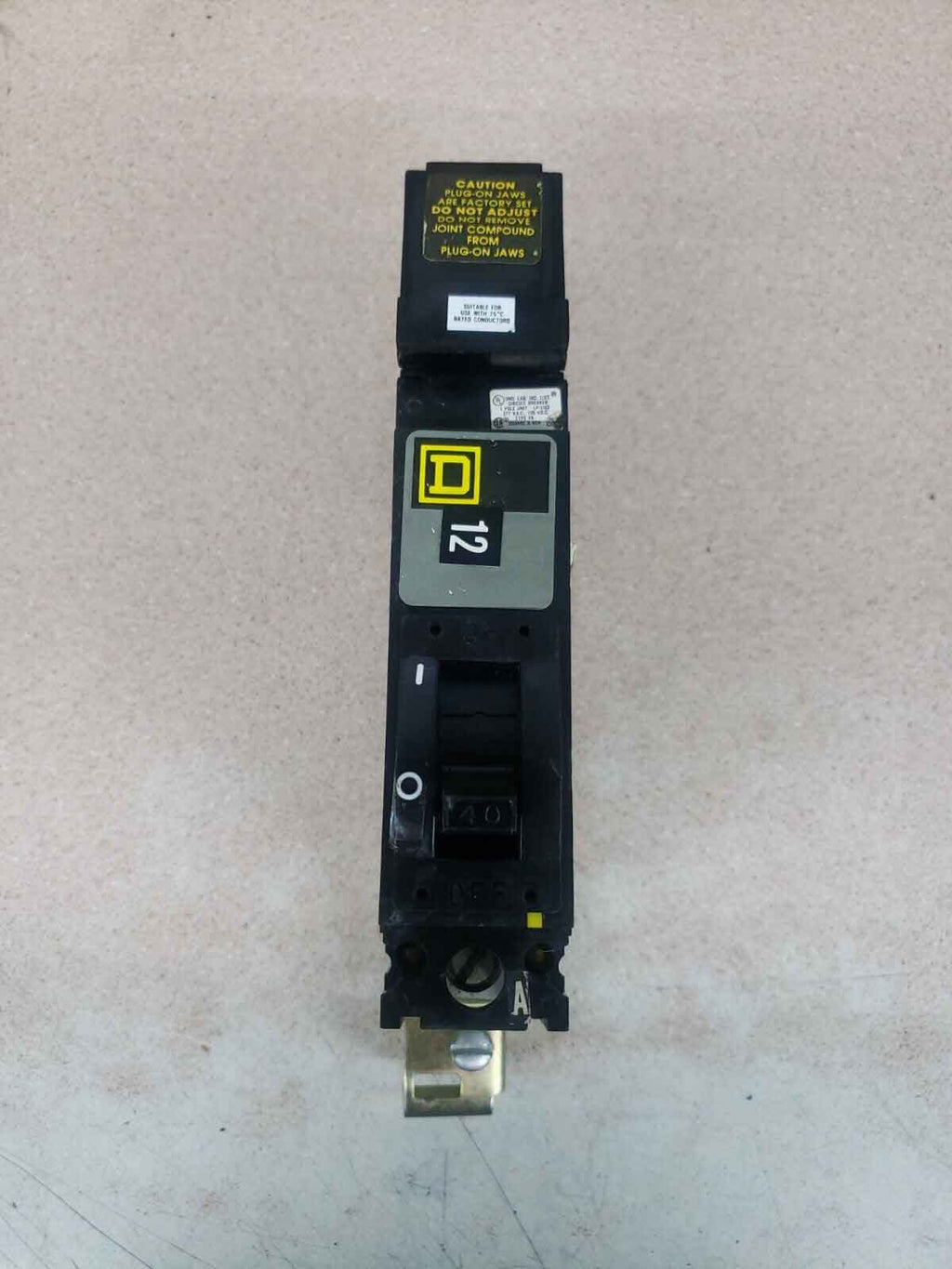

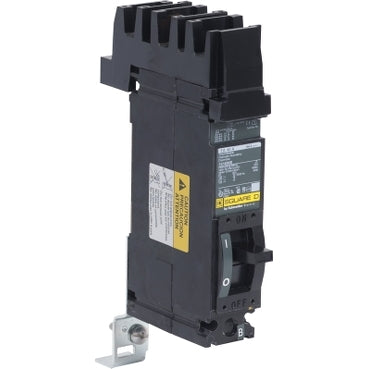

FA14040A - Schneider Electric 40A 277V 1 Pole I-Line Style Circuit Breaker

FA14040A

FA14040A is a 1 pole, 40 amp circuit breaker from Schneider Electric designed for 277 Volt applications with I-Line style plug-in mounting.This thermal magnetic molded case circuit breaker features a 1 pole configuration, 40 amp rating, and 18kA interrupting capacity at 277V. It is part of the FA series with an F frame and provides reliable overload and short circuit protection. The breaker is unit mount type and certified to industry standards for safety and performance.

• Manufacturer: Schneider Electric
• Part Number: FA14040A
• Amperage: 40 Amps
• Voltage Rating: 277 Volts
• Poles: 1 Pole
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA @ 277V
• Frame/Series: FA, F Frame
• Trip Unit: Thermal Magnetic
• Phase: Single Phase
• Connection: Unit Mount
• Certifications: Industry Standard Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA14040A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 277
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
• Certification : UL, CSA
• Wire Size : AWG 14 to AWG 1/0, Al/Cu
