Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
EZM1400TB

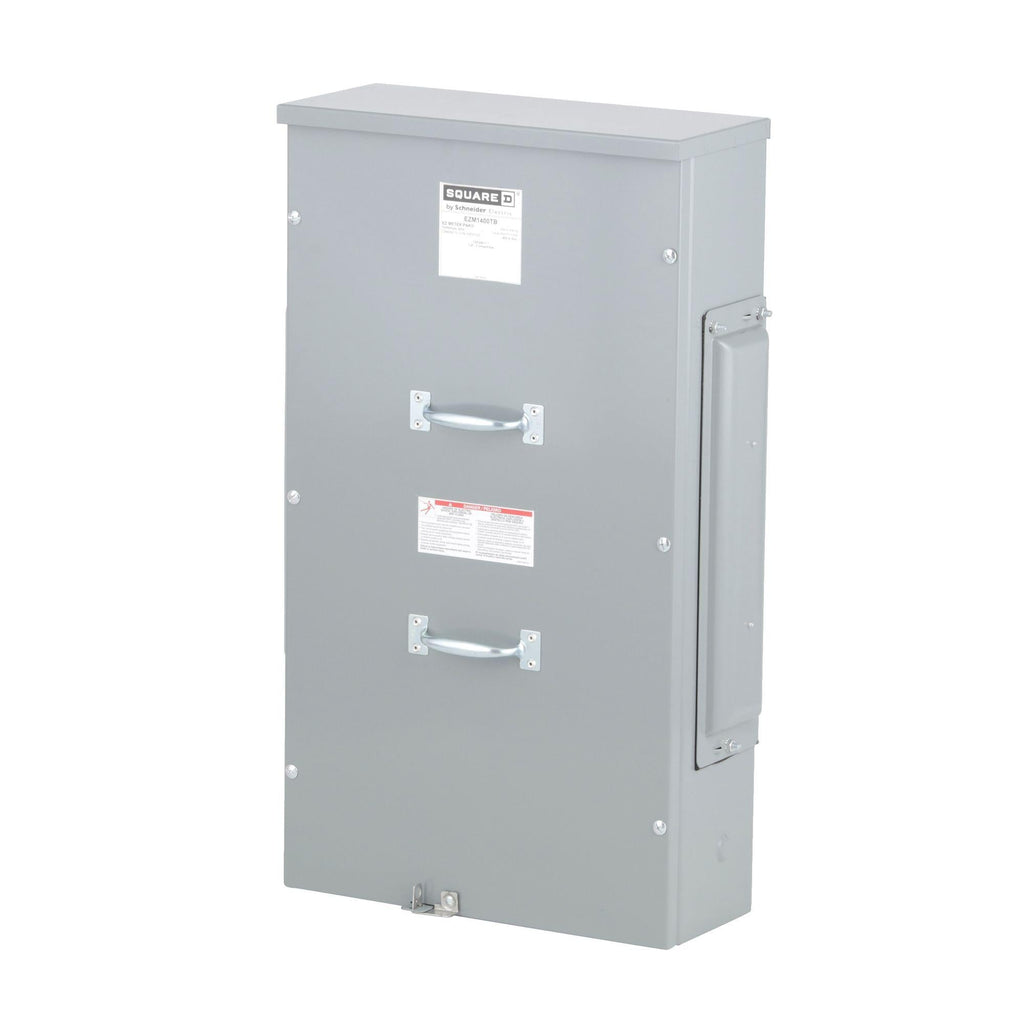

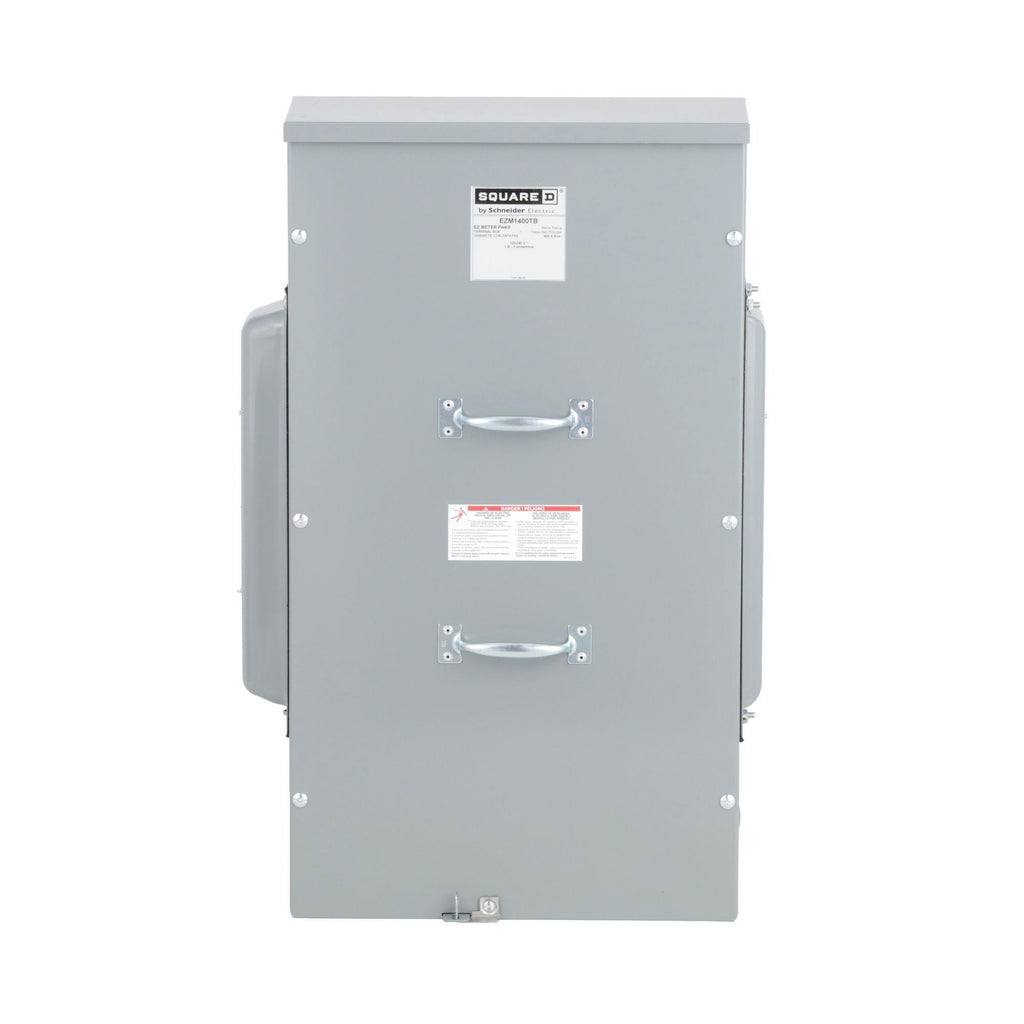

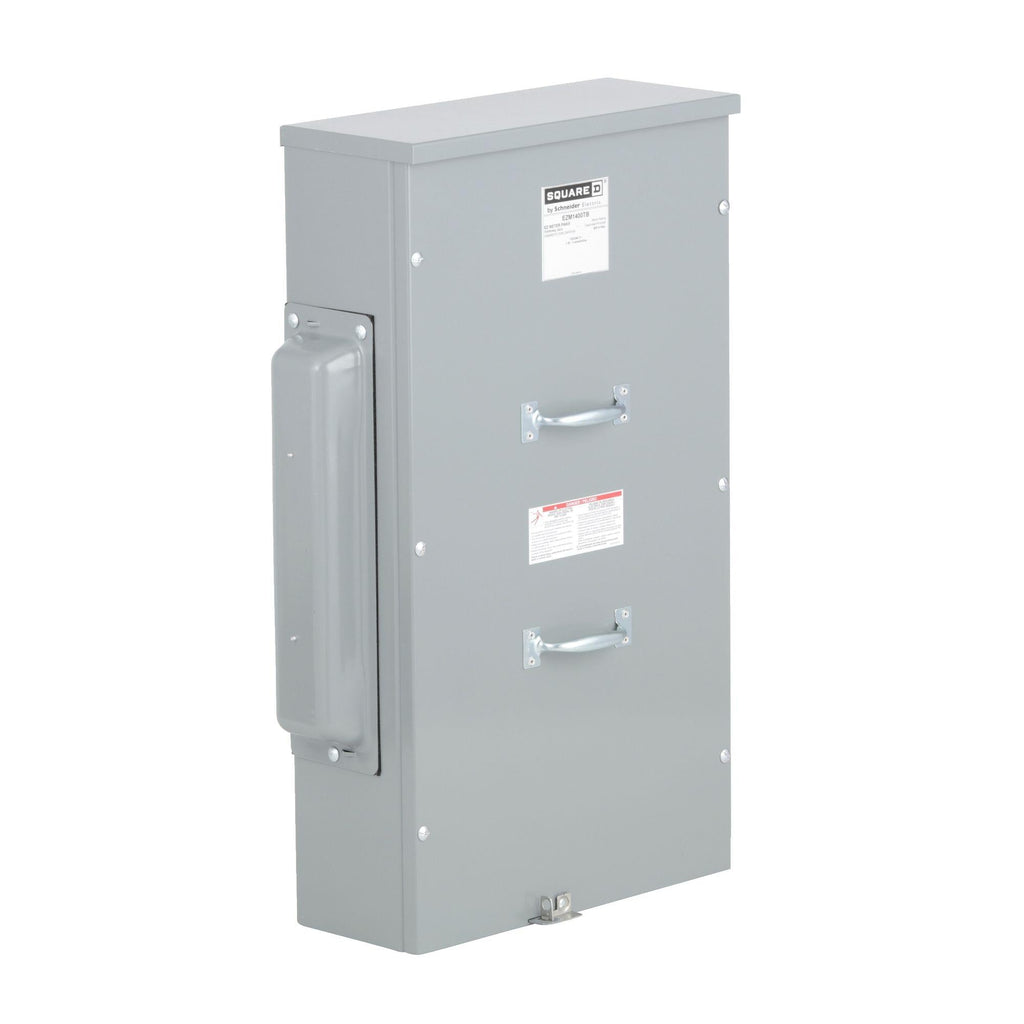

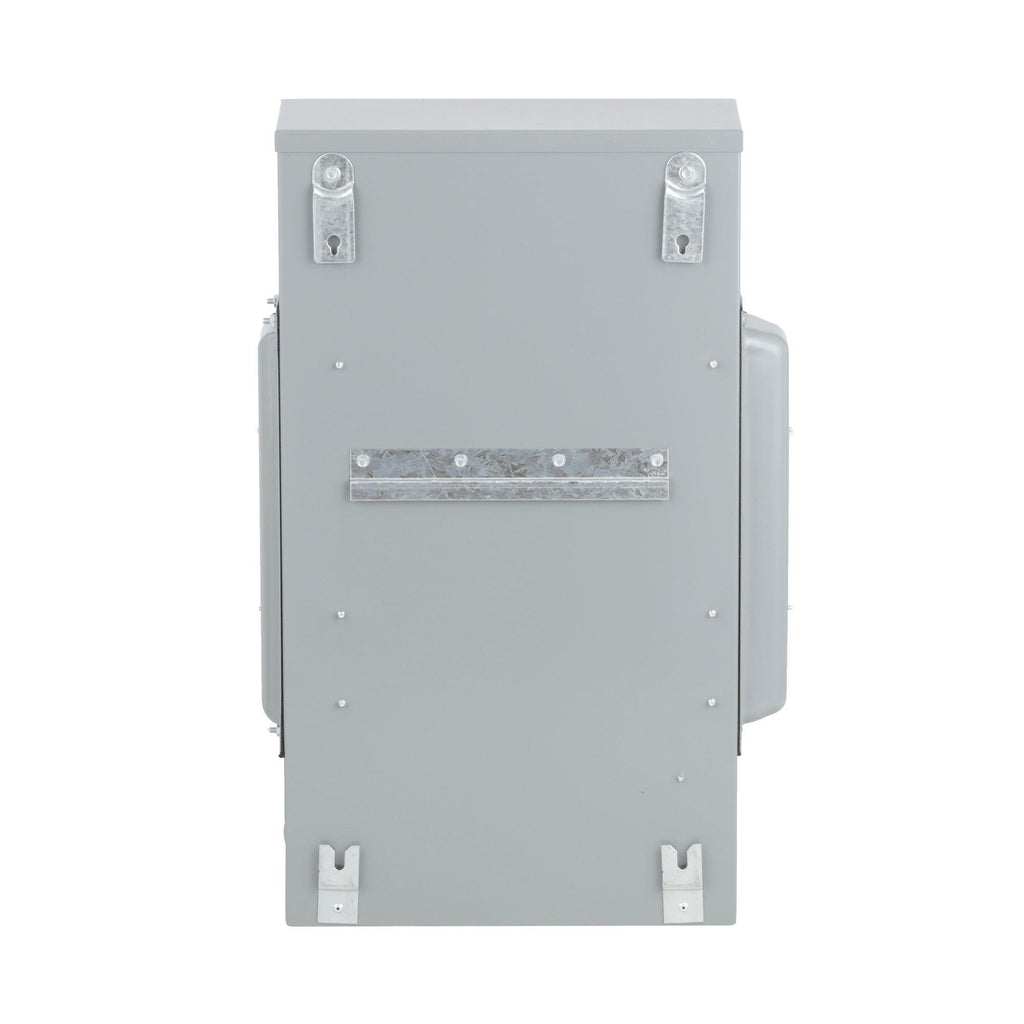

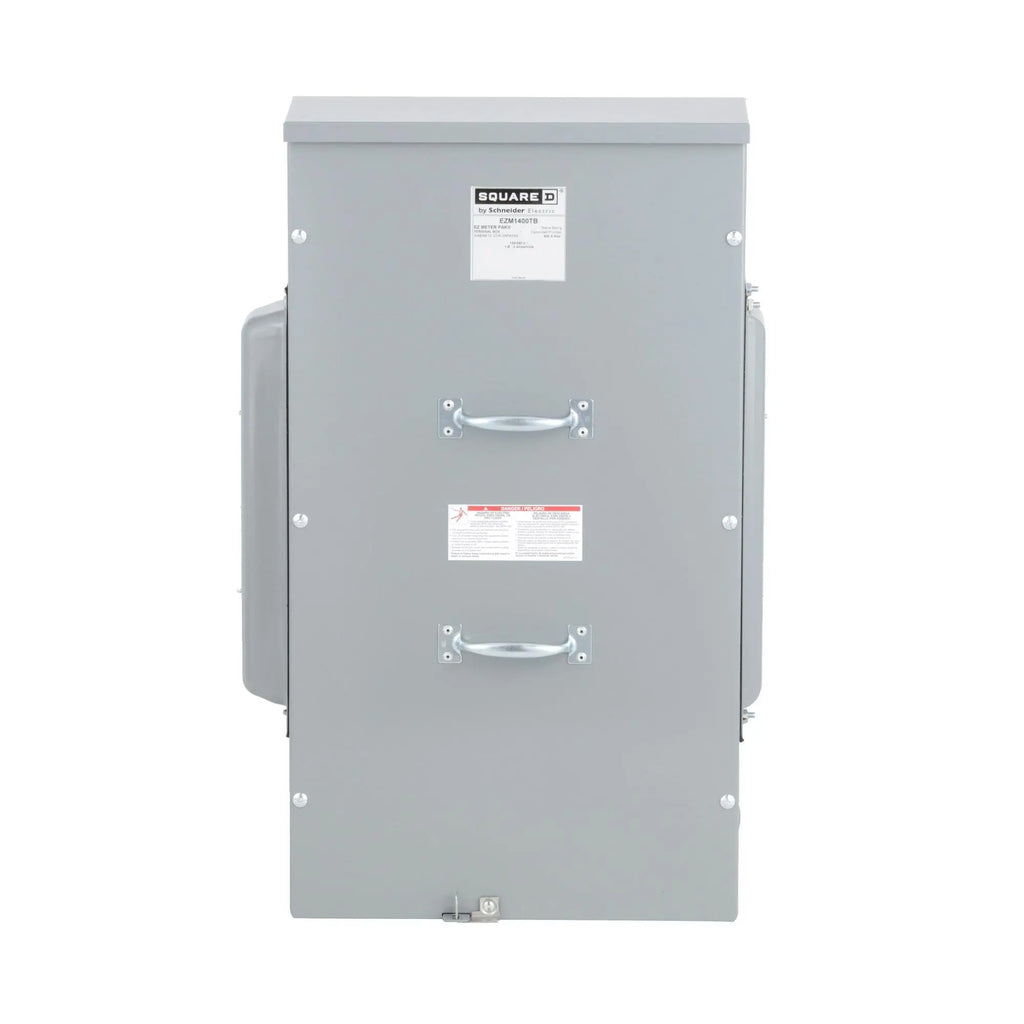

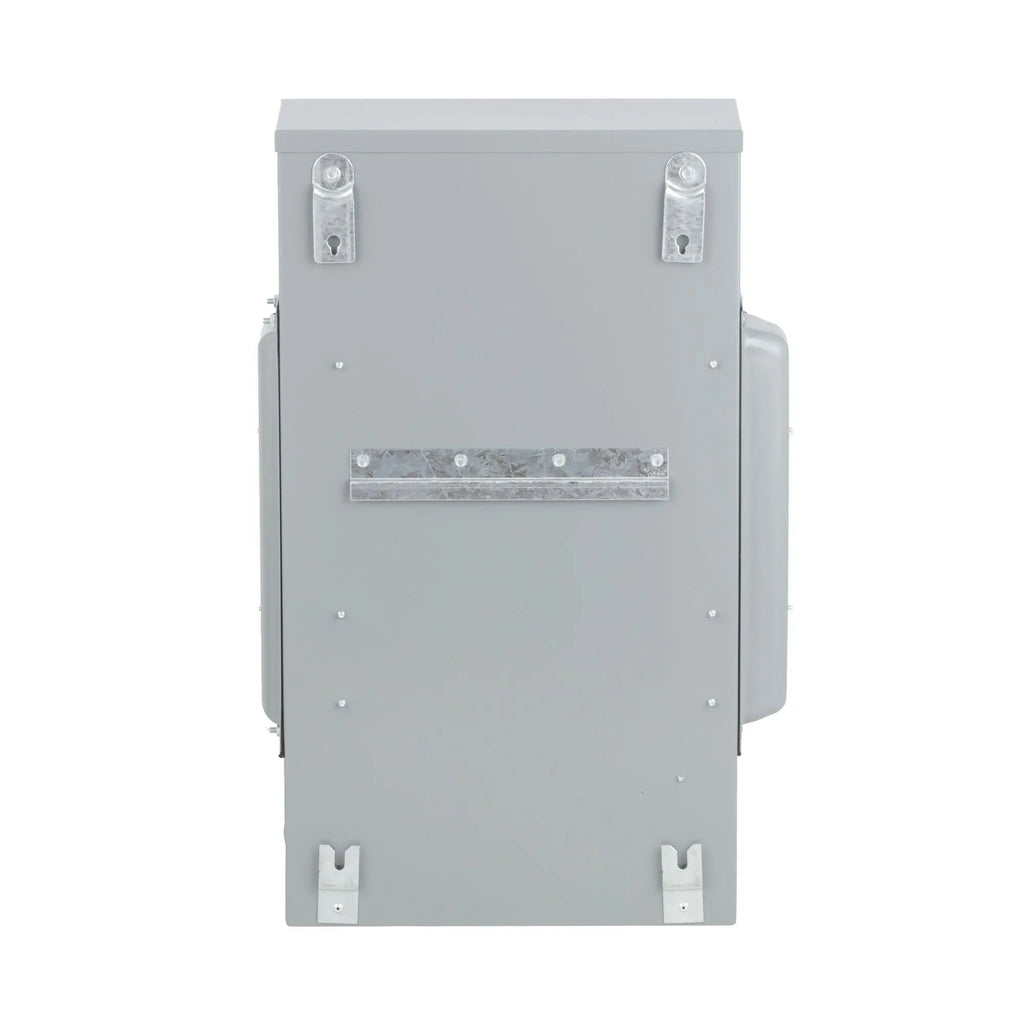

EZM1400TB is a Square D EZ Meter-Pak meter terminal box designed for single-phase service entrance applications with 120/240VAC incoming power from overhead or underground feeds. Main rated current: 400A with an 800A busbar capacity. Enclosure type: NEMA 3R rainproof steel construction suitable for surface mounting. Wire compatibility: Accepts 3/0 AWG to 500 kcmil aluminum or copper conductors for line and neutral connections, with ground lug rated for 6 AWG to 300 kcmil. Terminal connections: Main lugs for secure cable termination in residential and light commercial meter applications.
- Amperage Rating: 400A
- Voltage: 120/240VAC, 1-phase, 3-wire
- Busbar Rating: 800A
- Enclosure: NEMA 3R, Steel
- Wire Size Range: 3/0 AWG to 500 kcmil (line/neutral)
- Ground Lug: 6 AWG to 300 kcmil
- Mounting: Surface mount
- Dimensions: 17 in W x 6.53 in D x 30.46 in H
- Feed Type: Overhead or Underground
- Certification: UL Listed
Specifications
- Part Number: EZM1400TB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Terminal Accessories
- Family : Meter-Pak
- Type : EZ Meter-Pak
- Voltage : 120/240VAC
- Amperage : 400
- Phase : 1
Product Data
- UPC : 785901304852
- GTIN : 00785901304852
- Country of Origin : Mexico
- Dimensions : 30.46 in (773.68 mm) x 17.00 in (431.80 mm) x 6.53 in (165.86 mm) (Height x Width x Depth)
- Weight : 43.001
- Standards : RoHS, REACh
- Certification : UL
