ET116 - Boltswitch Fusible Bolted Pressure Switch 600A 125V

ET116

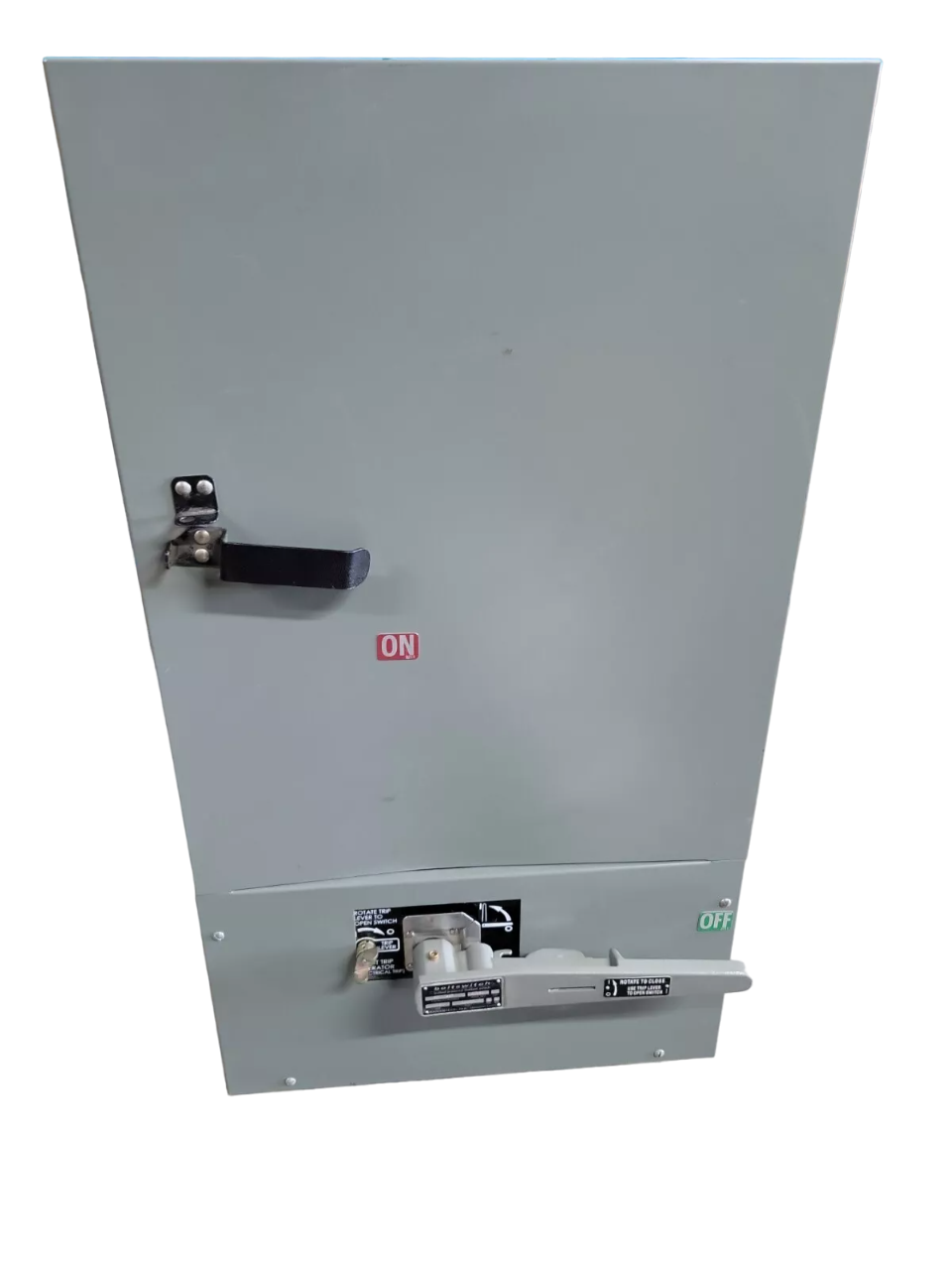

ET116 is a fusible bolted pressure contact switch designed for reliable DC power distribution and battery disconnect applications.

This single-pole switch features a robust bolted pressure contact design with quick make-quick break operator mechanism for positive contact engagement. The switch is dead front with an insulated bar connecting the operator to the cross-bar to keep ground potential out of the arcing zone. The operating handle includes provisions for padlocking in the open position and clearly indicates open and closed positions. All Boltswitch switches carry UL labels and are marked suitable for use on circuits capable of delivering high available fault currents.

• Part Number: ET116
• Amperage Rating: 600A
• Voltage Rating: 125V DC
• Poles: 1
• Interrupt Rating: 50,000A at 125V DC
• Switch Type: Fusible Bolted Pressure Contact
• Operator: Quick Make-Quick Break
• Dead Front Design
• Padlock Provisions for Open Position
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ET116
• Manufacturer : Boltswitch
• Brand : Boltswitch
• Category : Switch
• Item Subcategory : Bolted Pressure
• Family : ET Series
• Type : ET
• Voltage : 125
• Amperage : 600
• Phase : 1
• Poles : 1
• AIC rating : 50kA@125V
• Fuse Class : T
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : TJK

Product Data

• Weight : 100
