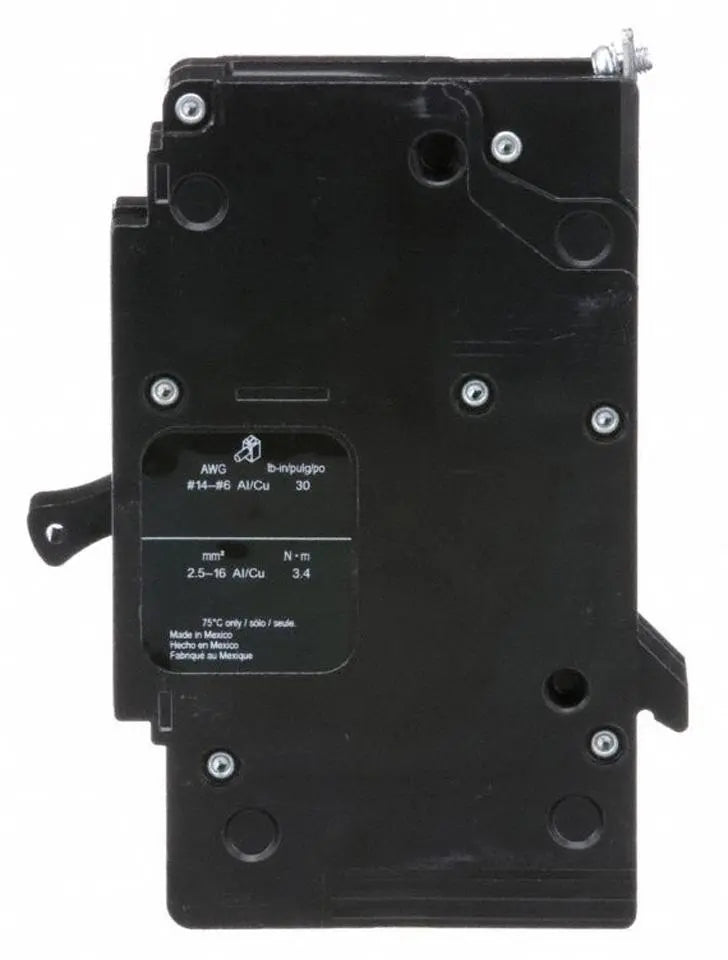

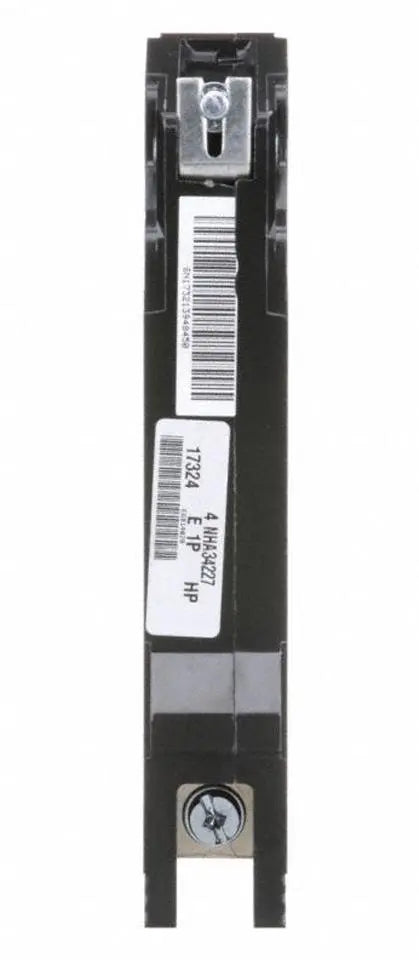

EJB16020 - Square D 20A 600V 1 Pole Bolt-On Circuit Breaker E-Frame 65kA Interrupt Rating

EJB16020

EJB16020 is a Square D 20 amp, 600 volt, 1 pole bolt-on circuit breaker designed for reliable branch circuit protection.

This E-Frame molded case circuit breaker features thermal magnetic trip units and is rated for an interrupt capacity of 65kA at 480V. It is suitable for use in panelboards requiring bolt-on mounting and provides short-circuit and overload protection. The breaker is UL listed for both US and Canada, ensuring compliance with safety standards.

• Amperage: 20 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 480V
• Frame/Series: E-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed (US and Canada)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EJB16020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EJB Series
• Type : EJB
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901238348
• GTIN : 00785901238348
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.4
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 6 aluminum
  AWG 14...AWG 6 copper
