Description
EJ16106

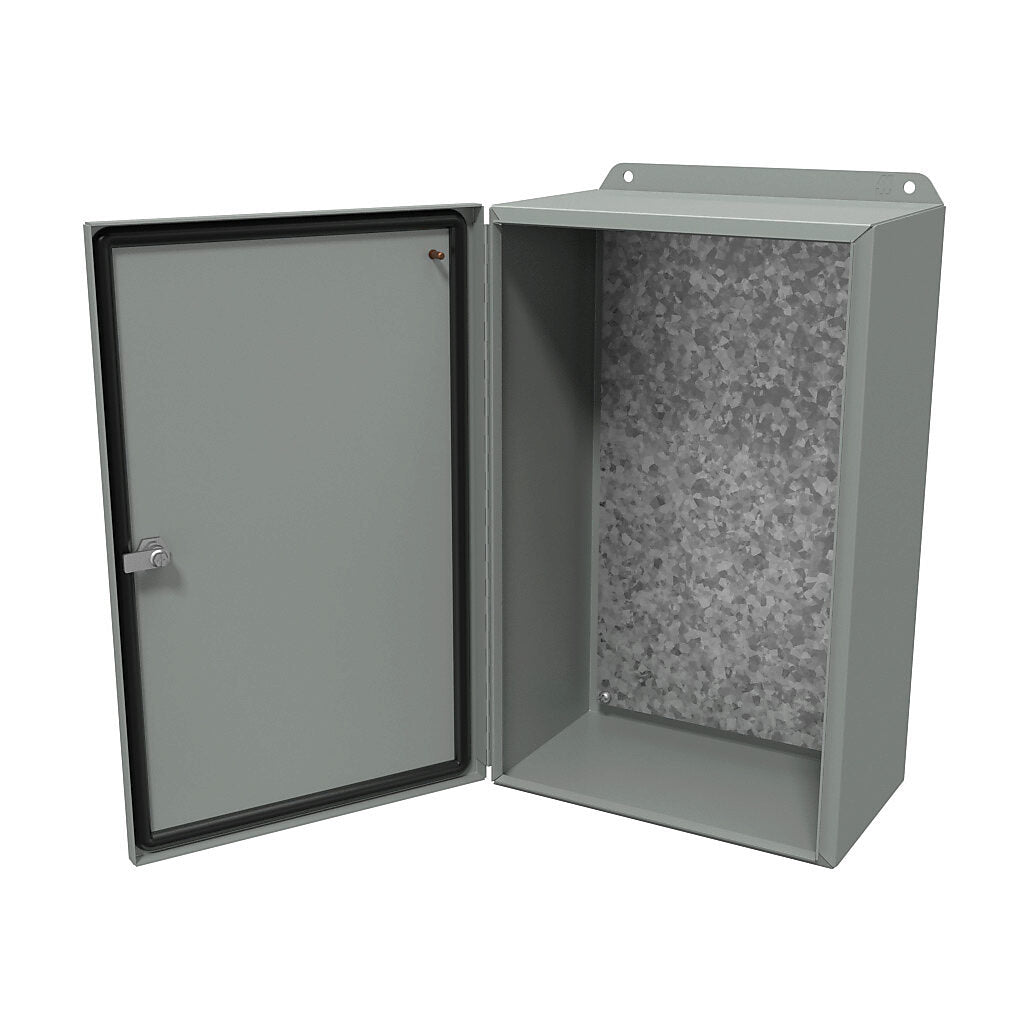

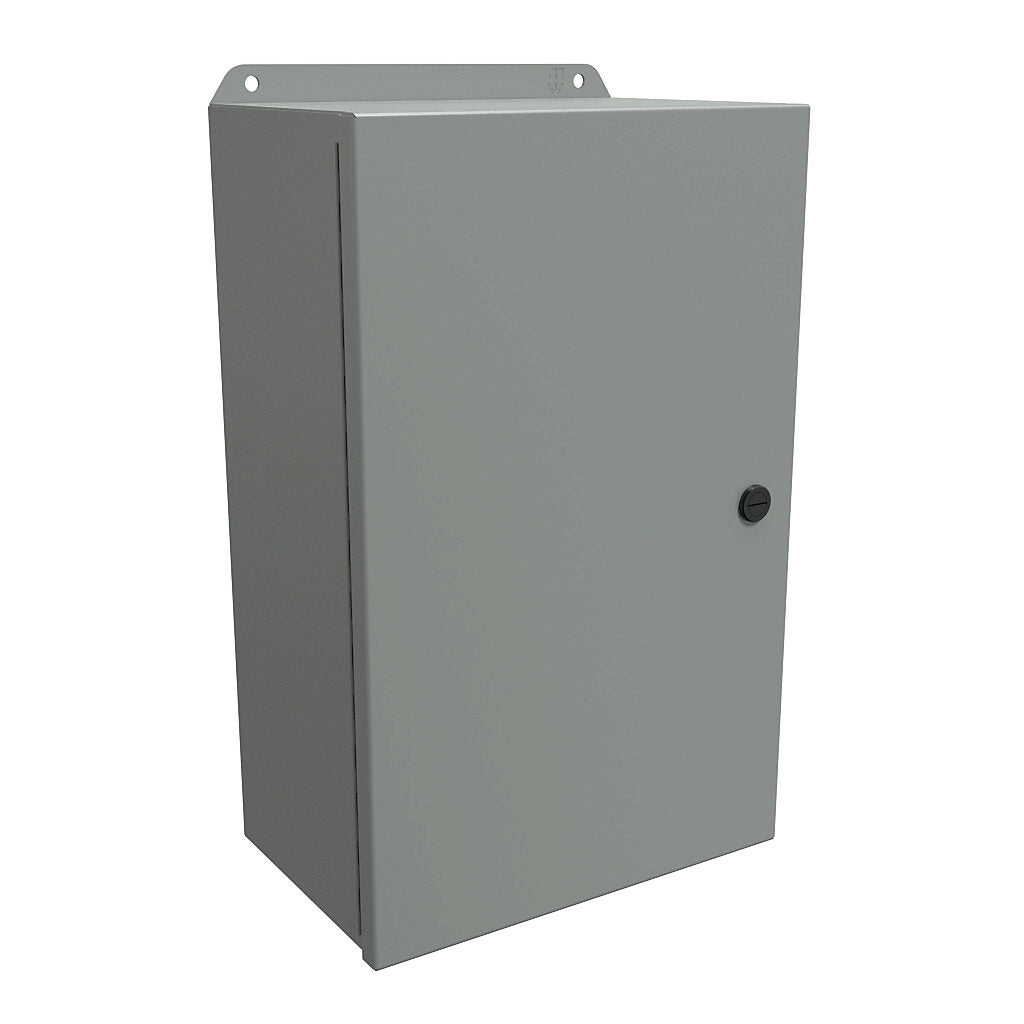

EJ16106 is a Hammond Eclipse Junior Series steel wall mount circuit breaker enclosure designed for reliable protection and mounting of electrical components.EJ16106 features a 16 gauge steel body and cover with a continuously hinged 304 stainless steel door, providing durability and ease of access. It includes a panel and 14 gauge welded brackets for secure wall mounting. The enclosure measures 16 in H x 10 in W x 6 in D and is rated for NEMA 4, 12, and 13 environments, ensuring protection against dust, water, and corrosion. It complies with UL508A standards.
- Key Specifications
- Series: Eclipse Junior
- Dimensions: 16 in H x 10 in W x 6 in D (406 mm x 254 mm x 152 mm)
- Material: 16 gauge steel body and cover
- Door: Continuously hinged 304 stainless steel
- Mounting: Wall mount with 14 gauge welded brackets
- NEMA Rating: 4, 12, 13
- Compliance: UL508A
- Weight: 15 lbs (6.80 kg)
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: EJ16106
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : Eclipse Junior Series
- Type : EJ
Product Data
- UPC : 62398035785
- GTIN : 00623980357850
- Country of Origin : Canada
- Weight : 15
- Certification : UL 508A Type 3R, 4, 12 and 13; CSA Type 3R, 4, 12 and 13; Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 12 and 13; IEC 60529, IP66
