Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

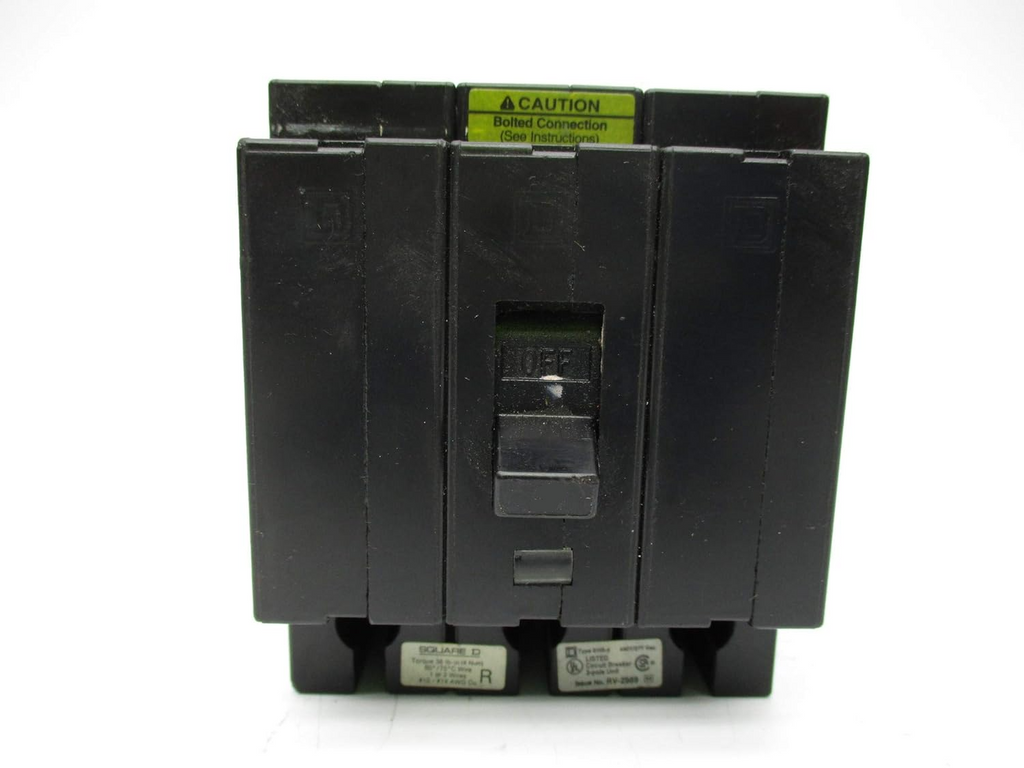

EHB34030PL
EHB34030PL is a 3 pole, 30 amp thermal magnetic molded case circuit breaker designed for 277/480V applications with bolt-on mounting.This Square D EHB34030PL circuit breaker features a 14kA interrupting rating at 277V, thermal magnetic protection with long-time and instantaneous trip functions, and a bolt-on connection type. It is UL and CSA certified and built on the EH frame series for reliable industrial and commercial power distribution.
- Amperage: 30 Amps
- Voltage Rating: 277/480 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 14kA at 277V
- Frame Type: EH Series
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Certifications: UL, CSA
- Connection Type: Bolt-On
- Phase: 3
- Temperature Rating: 40 °C
Specifications
- Part Number: EHB34030PL
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EHB Series
- Type : EHB
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 1
