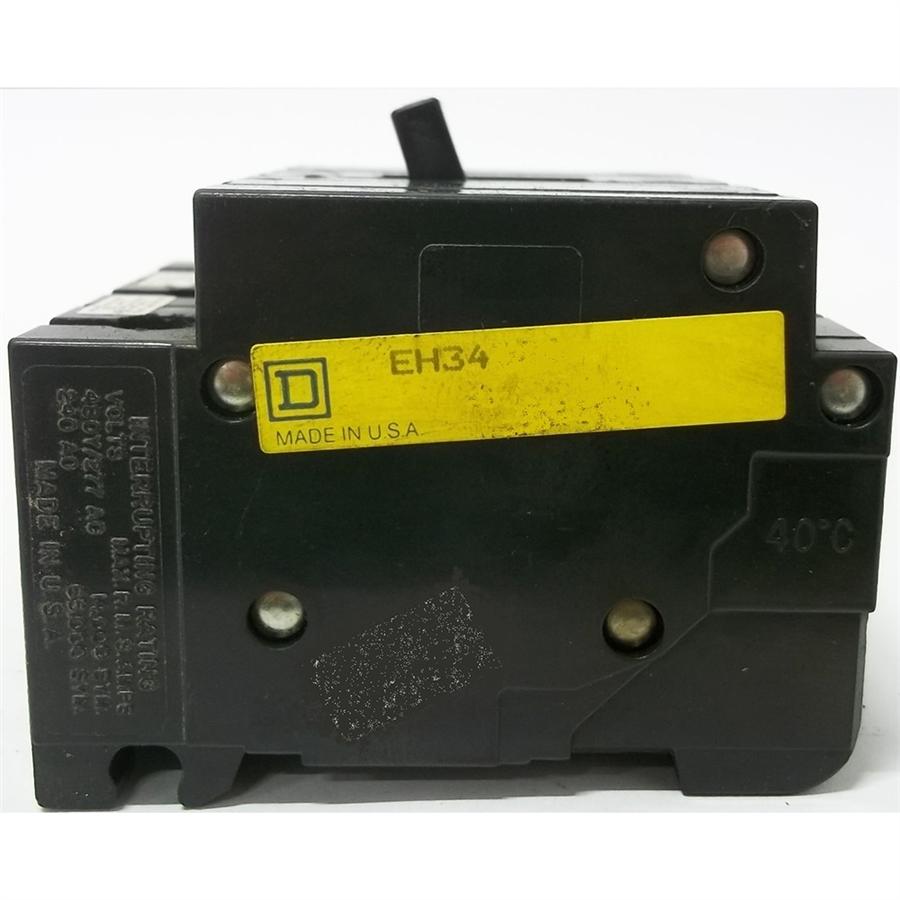

EH34050 - Square D 50A 480Y/277VAC 3 Pole Plug-In Circuit Breaker EH Frame Thermal Magnetic

EH34050

EH34050 is a 3 pole, 50 amp, 480Y/277VAC plug-in circuit breaker from Square D's EH series designed for NEH panelboards.This molded case circuit breaker features thermal magnetic protection with long time and instantaneous trip functions. It has a 14kA interrupting rating at 277V, supports wire gauges from 14 to 2 AWG aluminum or copper, and is rated for operation at 40°C. The breaker is designed for three-phase systems and mounts via plug-in connection in EH frame panelboards.

• Manufacturer: Square D
• Part Number: EH34050
• Series/Frame: EH
• Amperage: 50A
• Voltage: 480Y/277VAC
• Poles: 3
• Interrupting Rating: 14kAIC @ 277V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Mounting Type: Plug-In
• Wire Gauge: 14 to 2 AWG Aluminum/Copper
• Temperature Rating: 40°C
• For Use With: NEH Panelboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EH34050
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EH Series
• Type : EH
• Voltage : 480
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 14kA@277V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Weight : 1
• Wire Size : 14 to 2 AWG Aluminum/Copper
