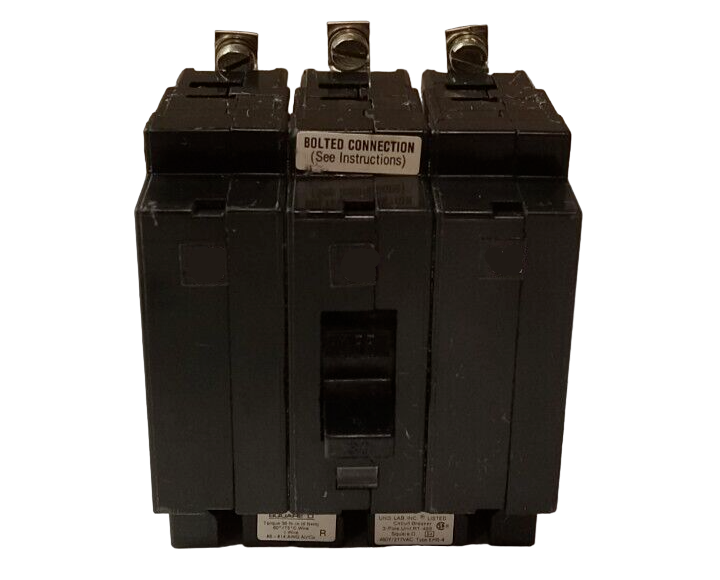

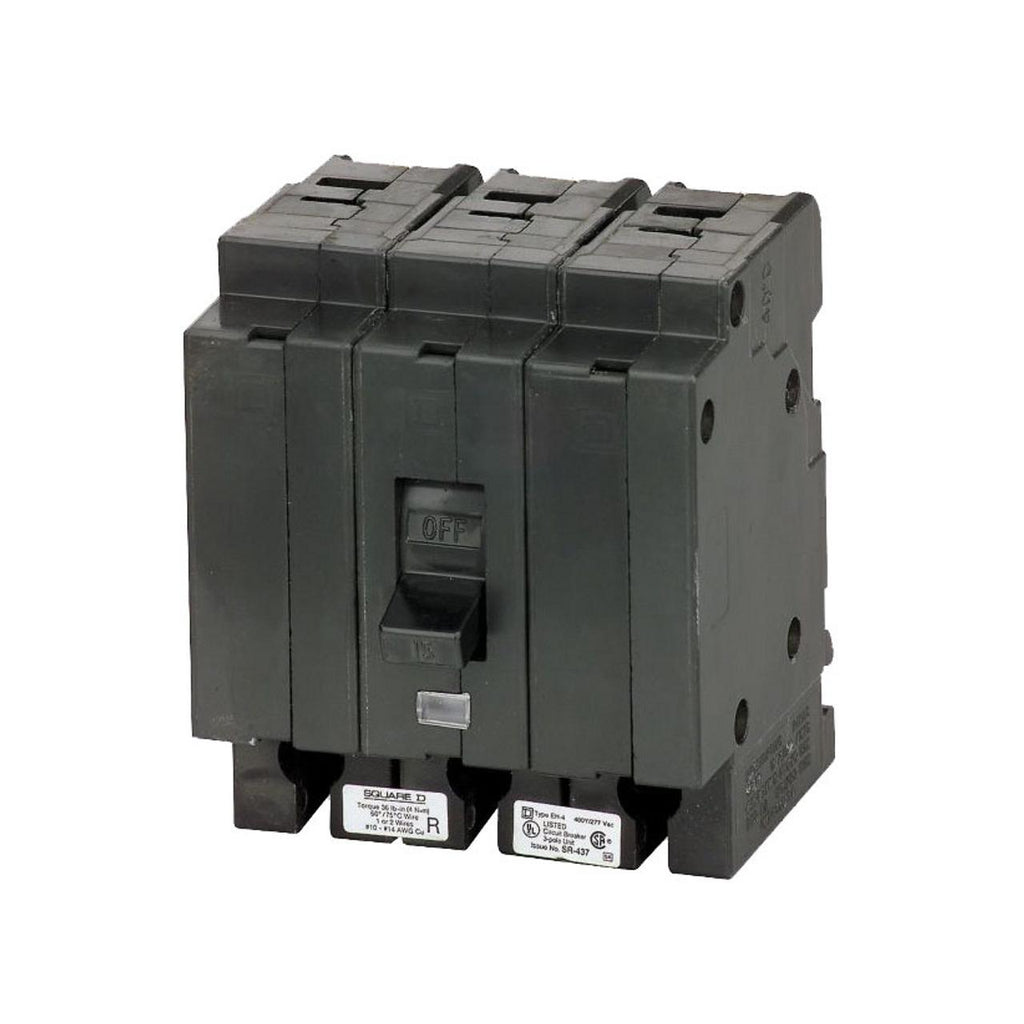

EH34040 - Square D 40 Amp 480Y/277VAC 3 Pole Thermal Magnetic Molded Case Circuit Breaker Plug-In

EH34040

EH34040 is a 3 pole, 40 amp thermal magnetic molded case circuit breaker by Square D designed for 480Y/277VAC applications.This Square D EH34040 circuit breaker features a plug-in mounting type, 14kA interrupting rating at 277V, and includes long time and instantaneous trip functions. It is part of the EH series frame and supports wire gauges from 14 to 2 AWG aluminum or copper. Certified to meet UL and ANSI standards, it is suitable for use with NEH panelboards and rated for operation at 40°C ambient temperature.

• Manufacturer: Square D
• Part Number: EH34040
• Amperage: 40 Amps
• Voltage: 480Y/277VAC
• Poles: 3
• Interrupting Rating: 14kAIC @ 277V
• Series/Frame: EH
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Wire Gauge: 14 to 2 AWG Aluminum/Copper
• Temperature Rating: 40°C
• Certifications: UL 489, ANSI C37

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EH34040
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EH Series
• Type : EH
• Voltage : 480
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 14kA@277V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901533104
• GTIN : 00885630619583
• Weight : 1
• Wire Size : 14 to 2 AWG Aluminum/Copper
