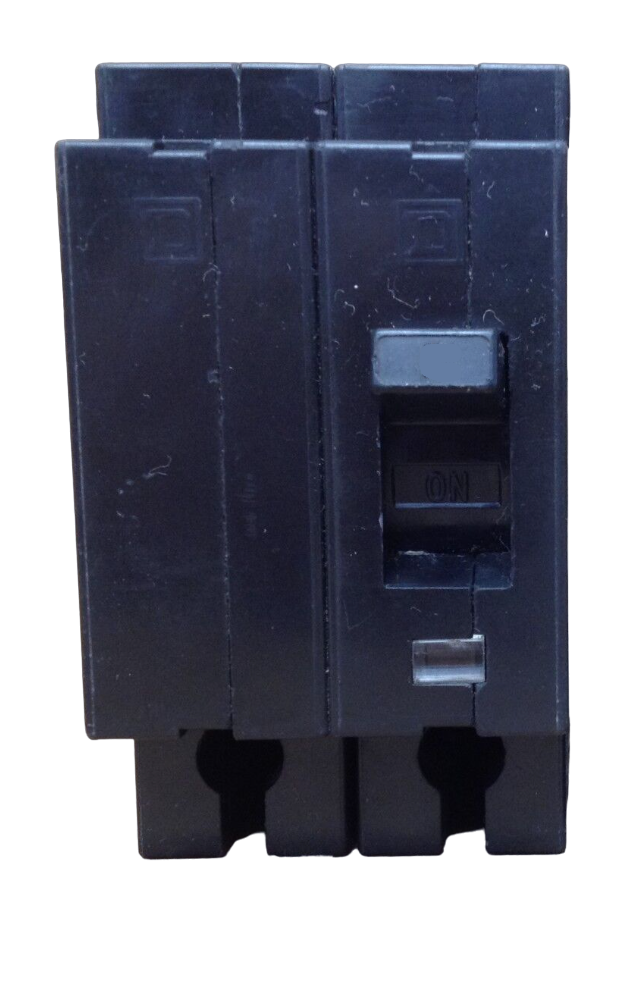

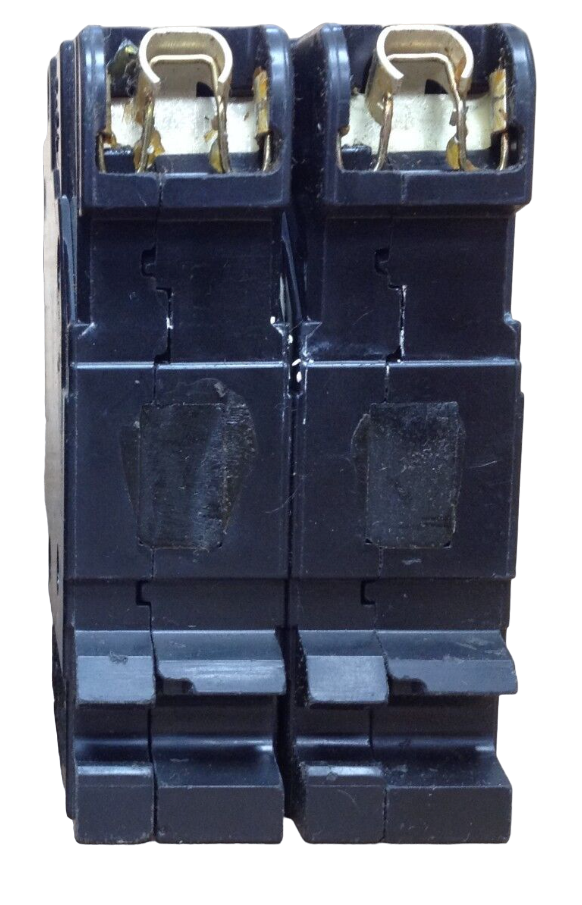

EH24060 - Square D 60A 480Y/277VAC 2 Pole EH Series Plug-In Circuit Breaker 14kA Interrupt Rating

EH24060

EH24060 is a Square D 2 pole circuit breaker rated for 60 amps and 480Y/277VAC voltage with EH series frame and plug-in mounting.This molded case circuit breaker features thermal magnetic protection with long time and instantaneous trip functions. It supports wire gauges from 14 to 2 AWG aluminum or copper and is designed for use with NEH panelboards. The breaker has a 14kA interrupting rating at 480Y/277VAC and a temperature rating of 40°C.

• Manufacturer: Square D
• Part Number: EH24060
• Amperage: 60A
• Voltage: 480Y/277VAC
• Poles: 2
• Series/Frame: EH
• Mounting Type: Plug-In
• Interrupt Rating: 14kA at 480Y/277VAC
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Compatible Panelboard: NEH
• Wire Gauge: 14 to 2 AWG Aluminum/Copper
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EH24060
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EH Series
• Type : EH
• Voltage : 480
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 14kA@277V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Weight : 1
• Wire Size : 14 to 2 AWG Aluminum/Copper
