Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description

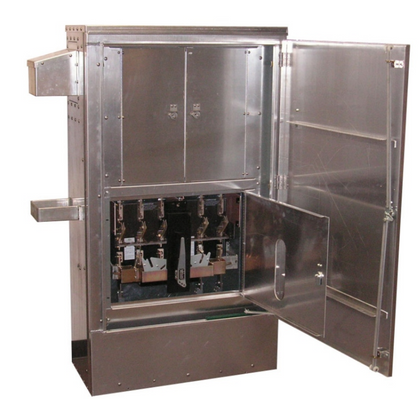

EGT425-5N
EGT425-5N is a 3 pole, 240V, 400A fusible bolted pressure switch designed for reliable service entrance and transfer applications. This Boltswitch model features a robust NEMA 1 enclosure and is suitable for use as a main disconnect or transfer switch in commercial and industrial power systems. The EGT425-5N switch is constructed with patented Quick-Make Quick-Break contacts and a Break-Before-Make operating mechanism for enhanced safety and performance. It is rated for use on circuits capable of delivering up to 200,000 RMS symmetrical amperes with Class T fuses installed, making it ideal for high fault current environments. The switch is suitable for both indoor and outdoor installations and is marked for use as service equipment (S.U.S.E.).
- 3 Pole, 3 Wire configuration
- 400 Amp maximum current rating
- 240 Volt AC maximum voltage rating
- NEMA 1 enclosure
- 200,000 RMS symmetrical amperes interrupting capacity
- Class T fusible design
- Break-Before-Make operating mechanism
- Quick-Make Quick-Break contacts
- Suitable for use as service equipment (S.U.S.E.)
- UL 98 listed
- Indoor/outdoor (Type 3R) construction
- Terminal lugs included
Specifications
- Part Number: EGT425-5N
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : GT Series
- Type : EGT
- Voltage : 240
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : T
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SGHA
Product Data
- Weight : 250
