Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
EGT266-6

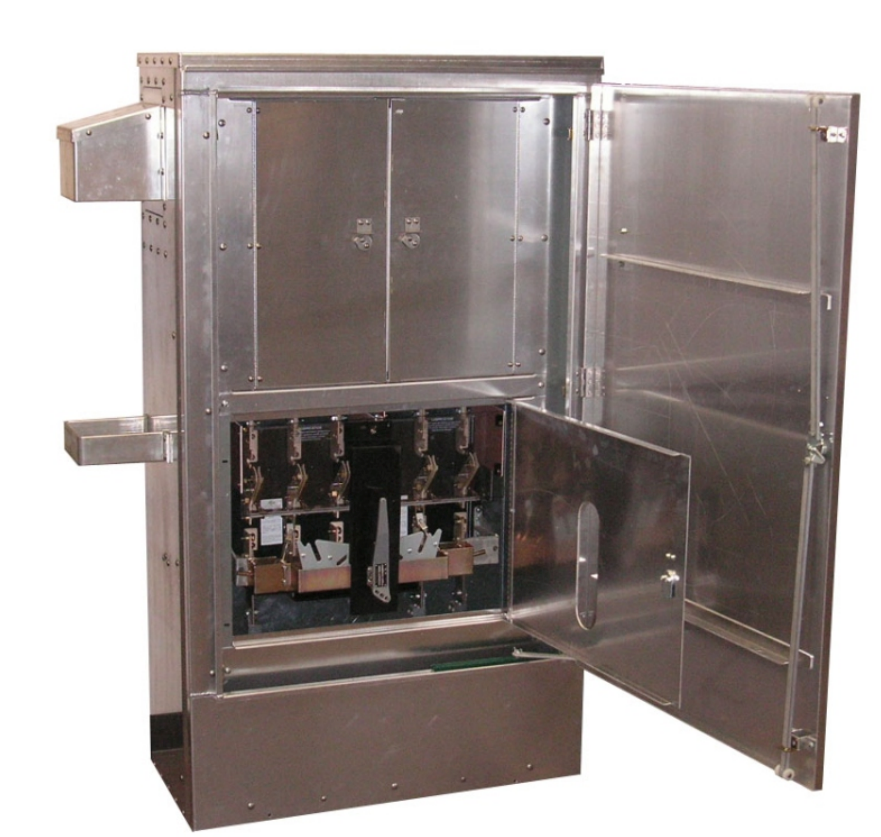

EGT266-6 is a Boltswitch T-Class fusible disconnect switch rated for 600 amperes at 600 volts with a 200,000 ampere interrupting capacity (AIC). This robust bolted pressure contact switch is designed for high-fault-current applications and provides reliable service entrance protection with quick-make, quick-break operation. EGT266-6 features a 2-pole configuration suitable for 3-wire circuits and is constructed in accordance with UL 98 standards for enclosed switches. The switch includes class T fuse compatibility and is marked suitable for use as service equipment (S.U.S.E.). Terminal lugs rated for 350kcmil copper or aluminum conductors are included.
- Amperage: 600 Amp continuous
- Voltage: 600V AC
- Poles: 2-Pole
- Interrupt Rating: 200,000 RMS symmetrical amperes (200kA AIC)
- Fuse Class: Class T
- Operating Mechanism: Quick-Make Quick-Break
- UL Listed: UL 98 Enclosed Switches (File No. E38735)
- Service Equipment Rated: Yes (S.U.S.E.)
- Terminal Lugs: 350kcmil - 6 CU9AL included
Specifications
- Part Number: EGT266-6
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : GT Series
- Type : EGT
- Voltage : 600
- Amperage : 600
- Phase : 1
- Poles : 2
- AIC rating : 200kA@600V
- Fuse Class : T
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : TJK
Product Data
- GTIN : 00804766753329
- Weight : 250
