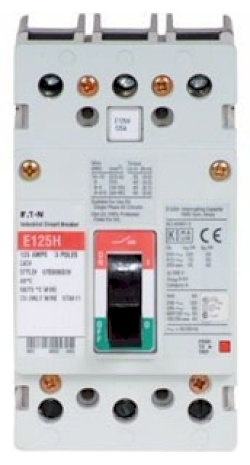

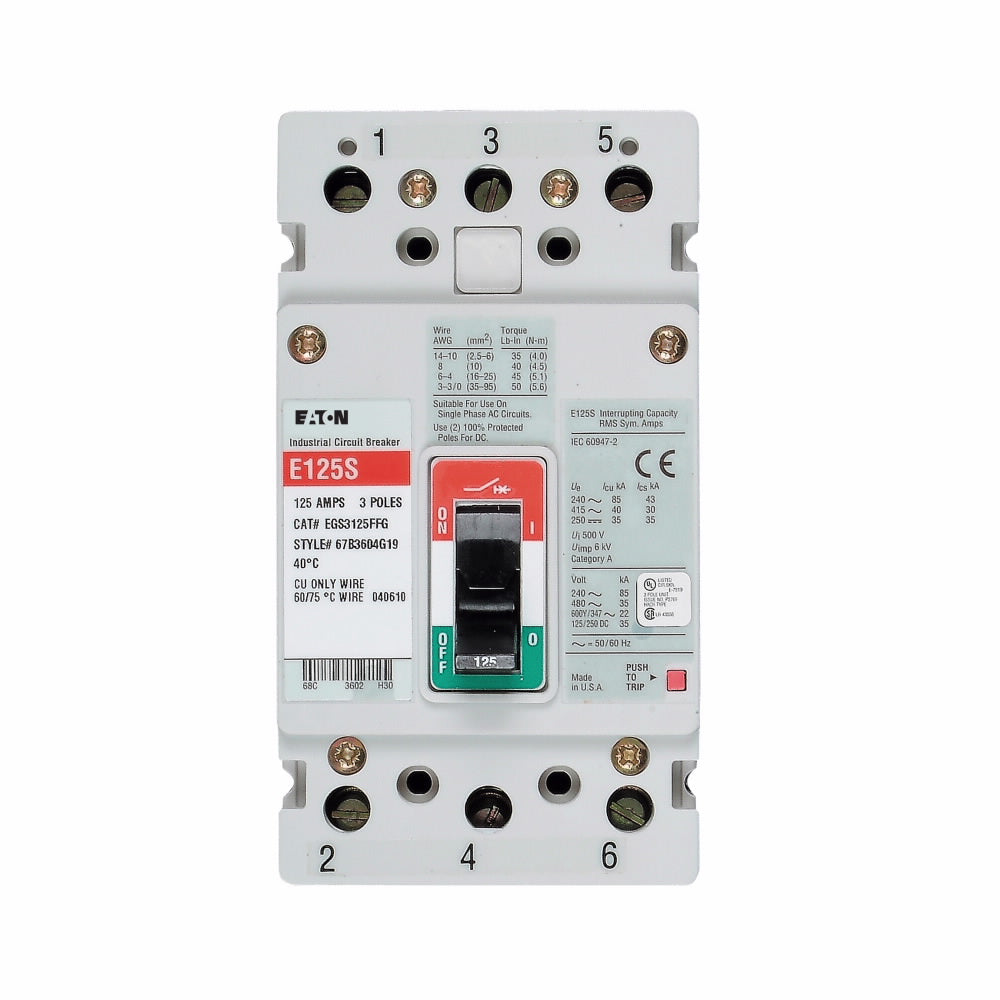

EGS3125FFG - Cutler Hammer 125A 3-Pole 600V AC Molded Case Circuit Breaker EG Frame with Shunt Trip

EGS3125FFG

EGS3125FFG is a Cutler Hammer molded case circuit breaker offering 125 amps, 3 poles, and 600V AC rating for robust power protection.This circuit breaker features a thermal magnetic trip unit and includes a shunt trip accessory (SNT120CPK) for remote tripping capability. It is built on the EG frame, supports bolt-on mounting, and has an interrupting capacity of 35kA at 480V AC. Certified UL Listed and CSA Certified, it is designed for commercial and industrial applications requiring reliable overload and short-circuit protection.

Key Specifications
• Brand: Cutler Hammer (Eaton)
• Model: EGS3125FFG
• Amperage: 125A
• Poles: 3
• Voltage Rating: 600V AC
• Interrupting Capacity: 35kA @ 480V AC
• Frame Type: EG Frame
• Trip Unit: Thermal Magnetic
• Accessory: Shunt Trip SNT120CPK
• Mounting: Bolt-On
• Certifications: UL Listed, CSA Certified
• Breaker Type: Molded Case Circuit Breaker (MCCB)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGS3125FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGS
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782114877241
• GTIN : 00782114877241
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed,CSA Certified,IEC Rated,UL 489,CE Marked
