EGS3100FFG - Cutler Hammer 100 Amp 600Y/347V 3-Pole EG Frame Molded Case Circuit Breaker, 35kAIC @ 480V, Fixed Thermal-Magnetic Trip, UL Listed

EGS3100FFG

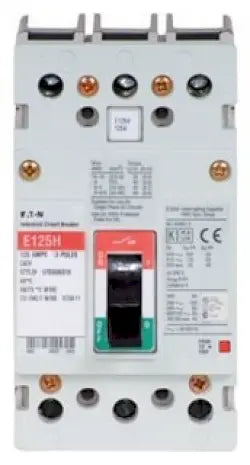

EGS3100FFG is a Cutler Hammer (Eaton) Series G molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.

This 3-pole breaker features a 100 Amp rating, 600Y/347V maximum voltage, and an EG frame. It is panel-mounted, uses a fixed thermal-magnetic trip unit, and offers a 35kA interrupt rating at 480V. The breaker is UL Listed, CSA Certified, and IEC Rated for global compliance.

Key Specifications
• Part Number: EGS3100FFG
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 100 Amp
• Voltage: 600Y/347V AC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: 35kA at 480V, 85kA at 240V, 22kA at 600Y/347V
• Series/Frame: Series G, EG Frame
• Trip Unit: Fixed thermal, fixed magnetic (non-interchangeable)
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked
• Connection: Feed-thru, line and load side lug terminals
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGS3100FFG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGS
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782114877227
• GTIN : 00782114877227
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.9
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
