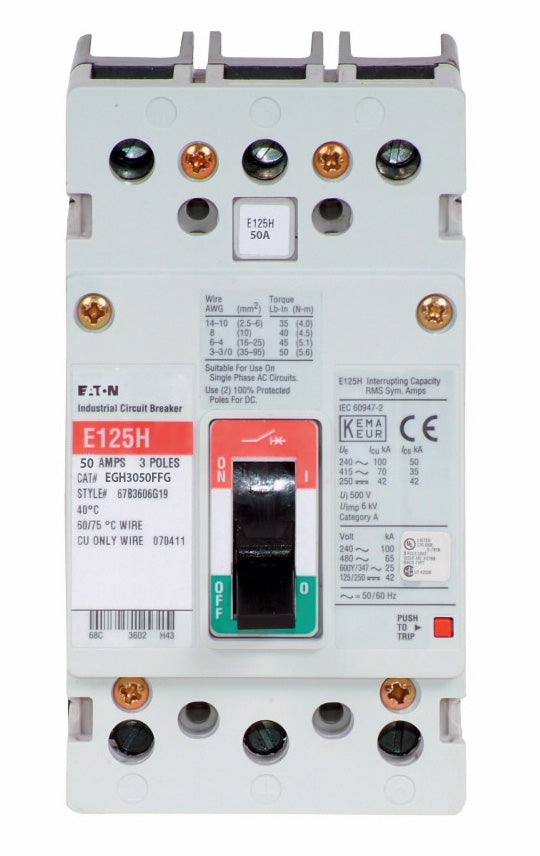

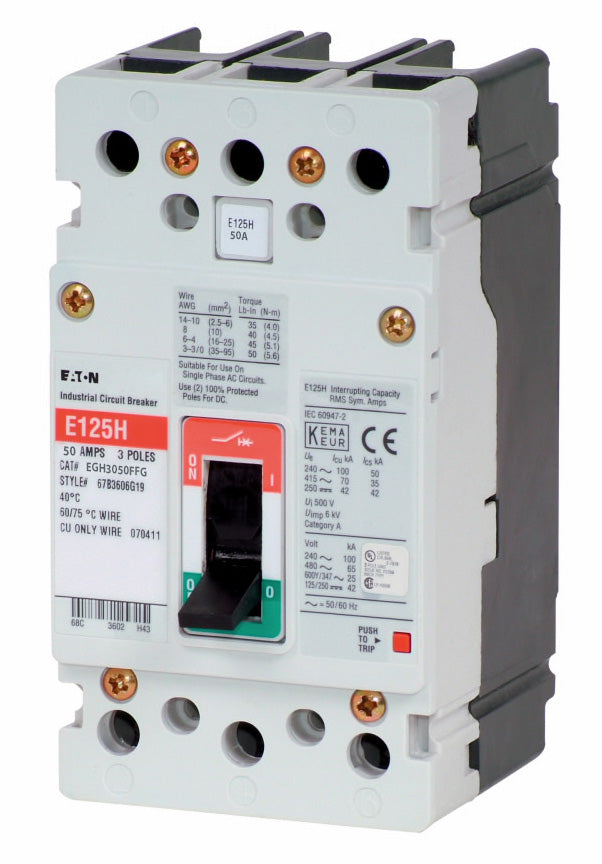

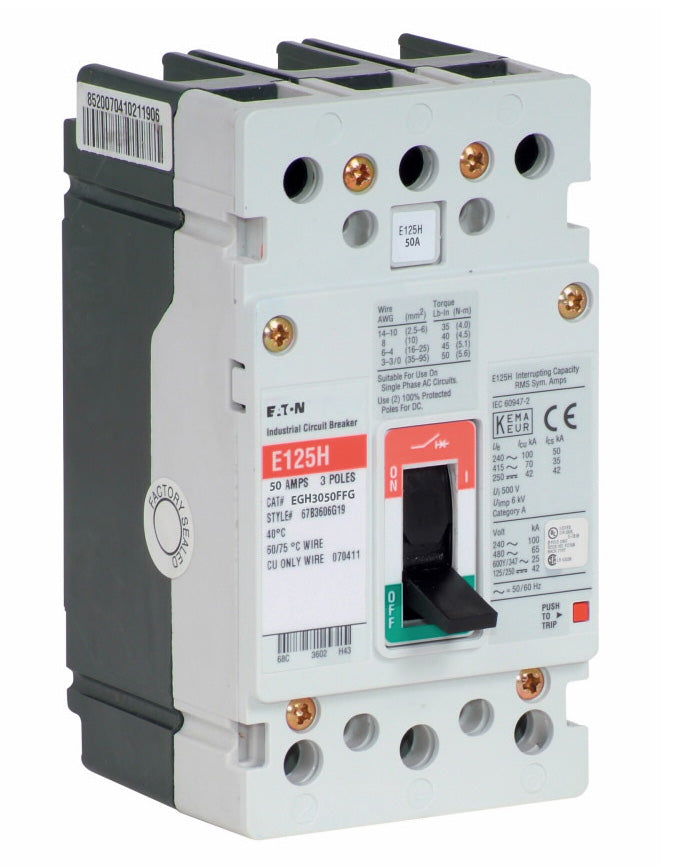

EGH3050FFG - Cutler Hammer 50A 3-Pole 600Y/347V Series G Molded Case Circuit Breaker

EGH3050FFG

EGH3050FFG is a Cutler Hammer Series G molded case circuit breaker designed for reliable power distribution protection.This 3-pole circuit breaker features a 50 ampere rating and a voltage rating of 600Y/347 Vac. It includes a fixed thermal-magnetic trip unit and offers high interrupting capacity with ratings up to 100kA at 240 Vac and 65kA at 480 Vac. The breaker is UL Listed, CSA Certified, IEC Rated, and CE Marked, ensuring compliance with multiple safety standards.

• Amperage: 50 A
• Poles: 3
• Voltage Rating: 600Y/347 Vac
• Interrupt Rating: 100kA @ 240 Vac, 65kA @ 480 Vac
• Series/Frame: Series G (EG Frame)
• Trip Unit: Fixed Thermal-Magnetic
• Mounting Type: Complete breaker (cable in/cable out)
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked
• Type: Molded Case Circuit Breaker
• Manufacturer: Cutler Hammer (Eaton)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGH3050FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGH
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114877562
• GTIN : 00782114877562
• Country of Origin : United States
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
