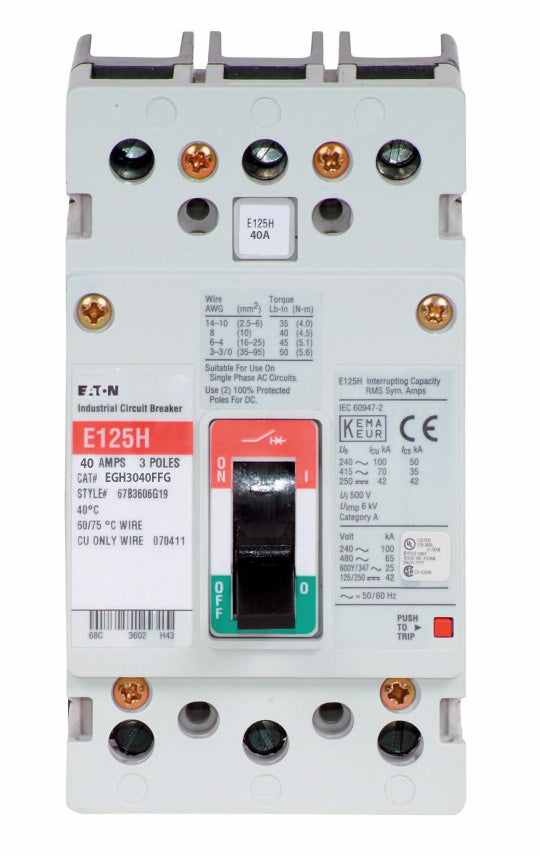

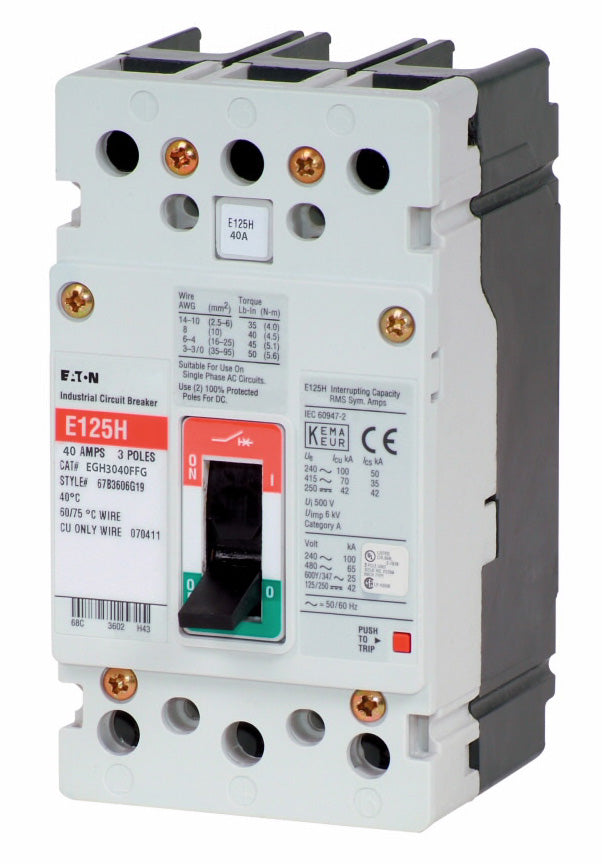

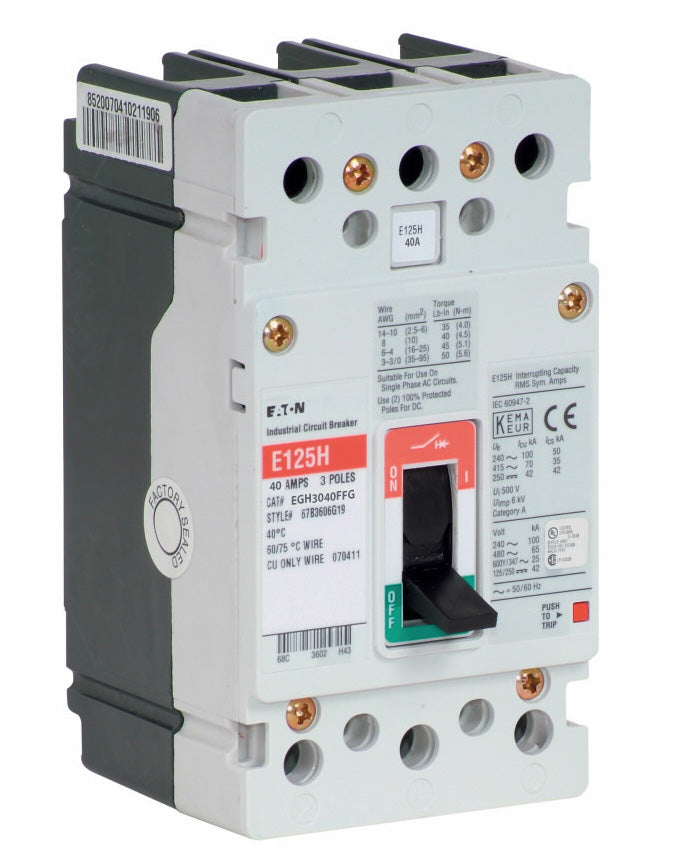

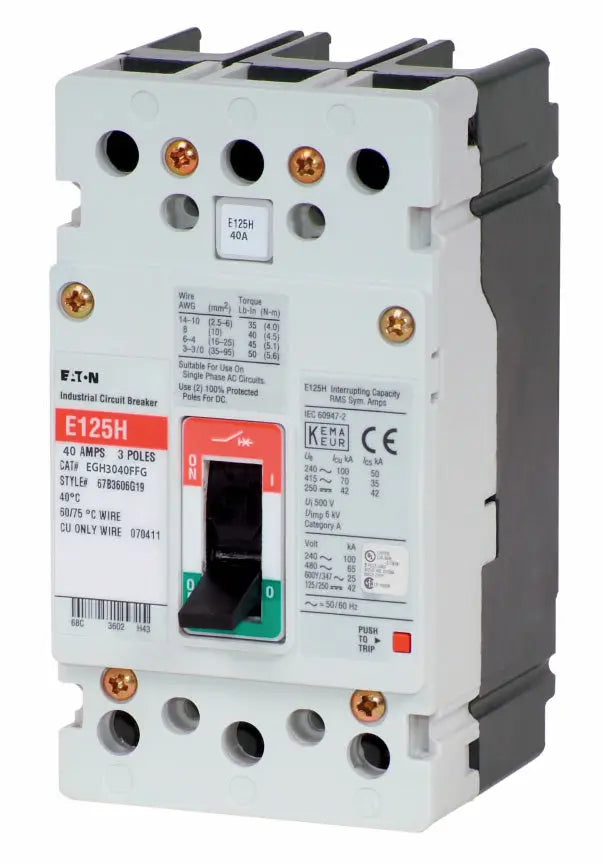

EGH3040FFG - Cutler Hammer 40A 600V 3-Pole Molded Case Circuit Breaker Series G

EGH3040FFG

EGH3040FFG is a Cutler Hammer 3-pole molded case circuit breaker rated for 40 amps and 600 volts, designed for reliable power distribution protection.This circuit breaker features a fixed thermal and fixed magnetic trip unit, suitable for 3-phase applications. It belongs to the Series G EG-frame type, with a high interrupting capacity of 65kA at 480VAC and 100kA at 240VAC. The breaker includes line and load side lug terminals and is UL, CSA, IEC, and CE certified. It mounts via magnetic or DIN rail options and weighs approximately 3 lbs.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: EGH3040FFG
• Series: G
• Frame Type: EG
• Amperage: 40A
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Interrupt Rating: 65kA @ 480VAC, 100kA @ 240VAC, 25kA @ 600VAC
• Mounting: Magnetic / DIN Rail
• Terminals: Line and Load Lug
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGH3040FFG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGH
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114877548
• GTIN : 00782114877548
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
