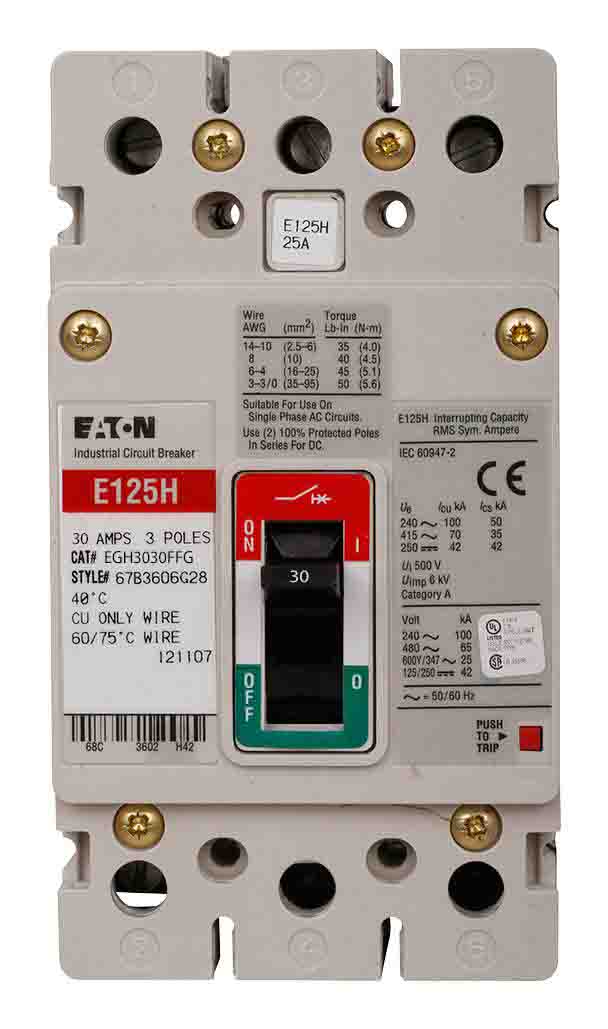

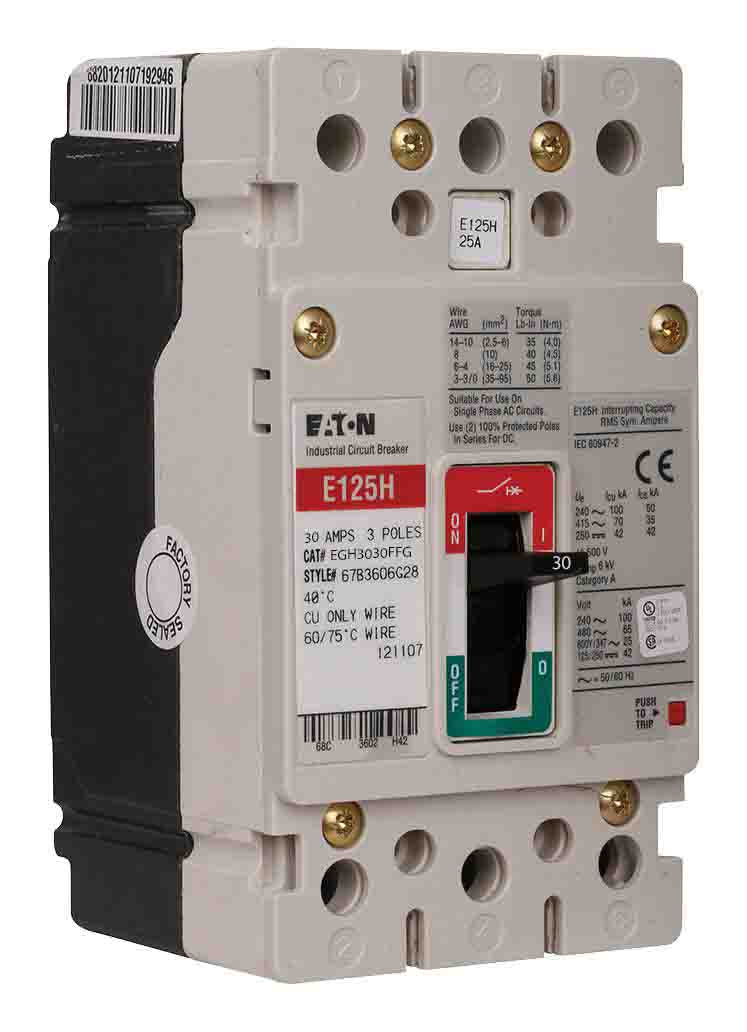

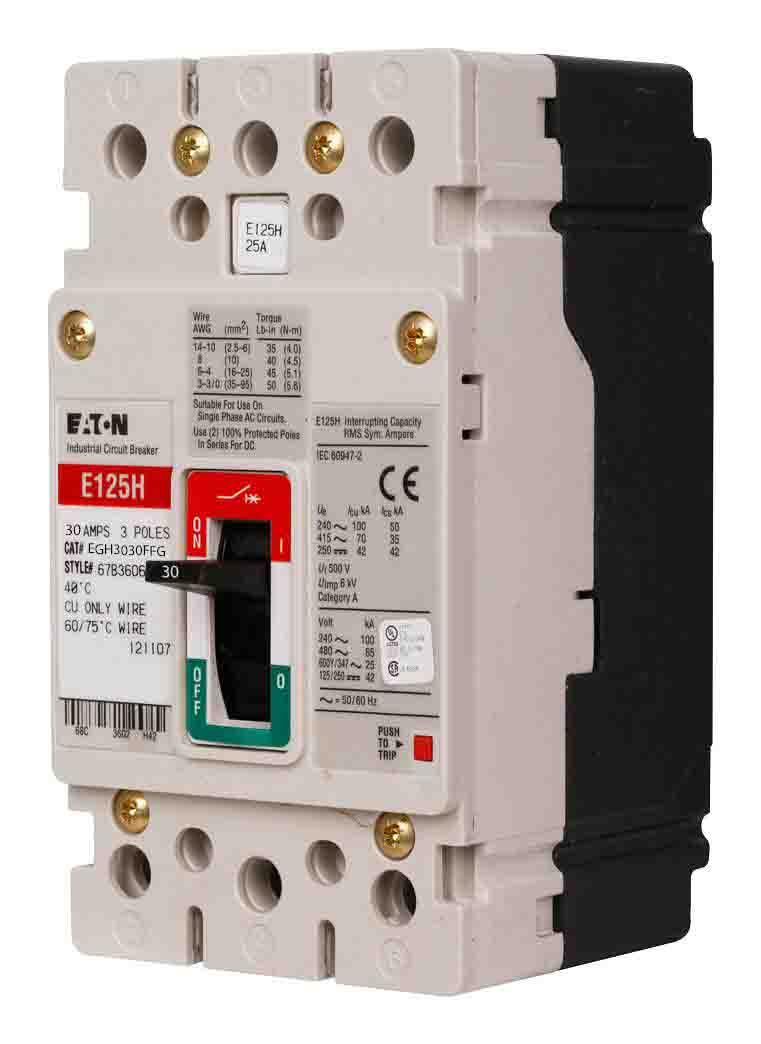

EGH3030FFG - Cutler Hammer Series G Molded Case Circuit Breaker 30A 3P 600V Fixed Thermal Magnetic Trip

EGH3030FFG

EGH3030FFG is a Cutler Hammer Series G molded case circuit breaker designed for reliable protection in commercial and industrial applications. This three-pole breaker features a fixed thermal and fixed magnetic trip unit, providing dependable overcurrent protection for electrical systems. The breaker is rated for 30 amps and 600 volts, with a robust EG-frame construction and feed-thru mounting for easy installation. It is suitable for use in a wide range of power distribution panels and switchgear. The EGH3030FFG offers high interrupt ratings, including 100 kAIC at 240VAC and 65 kAIC at 480VAC, ensuring safety and reliability in demanding environments. The molded glass-polyester case provides durability and resistance to harsh conditions. This breaker is designed to meet industry standards for molded case circuit breakers and is ideal for applications requiring a compact, high-performance solution.

• Part Number: EGH3030FFG
• Manufacturer: Cutler Hammer
• Series/Frame: Series G, EG-frame
• Amperage: 30A
• Poles: 3
• Voltage: 600V
• Mounting Type: Feed-Thru
• Interrupt Rating: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Case Material: Glass-Polyester
• Standards: SABS 156
• Application: Commercial, Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGH3030FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGH
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114877517
• GTIN : 00782114877517
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.7
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
