EGH2125FFB - Cutler Hammer 125A 600V 2 Pole Molded Case Circuit Breaker Fixed Thermal/Fixed Magnetic Trip

EGH2125FFB

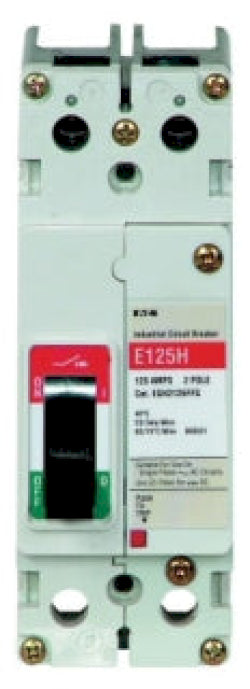

EGH2125FFB is a 2 pole, 125 amp, 600V molded case circuit breaker from Cutler Hammer's Series G, featuring fixed thermal and fixed magnetic trip for reliable protection in commercial and industrial applications. This molded case circuit breaker is designed for bolt-on mounting and offers a high interrupt rating of 65kA at 480V, making it suitable for demanding electrical environments. The EGH2125FFB is part of the EG frame series and provides long time and instantaneous trip functions for robust circuit protection.

• Part Number: EGH2125FFB
• Manufacturer: Cutler Hammer
• Amperage Rating: 125A
• Voltage Rating: 600V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 480V
• Series/Frame: Series G, EG Frame
• Interrupting Capacity: 35kA @ 600Y/347V
• Frequency: 50/60 Hz
• Terminal Type: Line & Load Side Lug
• Trip Unit: Fixed Thermal/Fixed Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGH2125FFB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGH
• Voltage : 600
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685232881
• GTIN : 00786685232881
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 2 in (Length/Depth x Height x Width)
• Weight : 1.83
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
