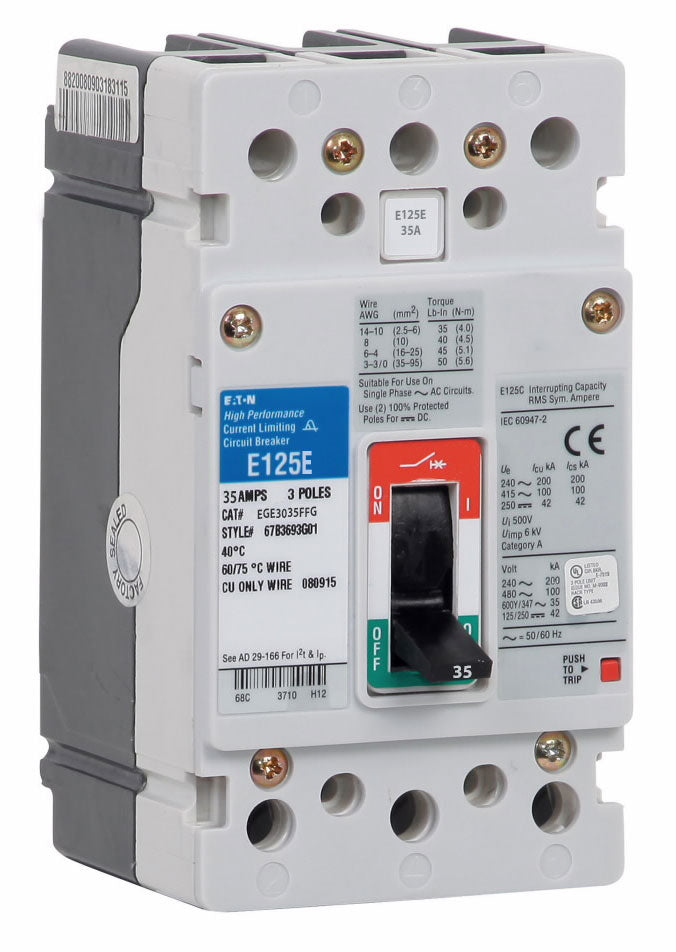

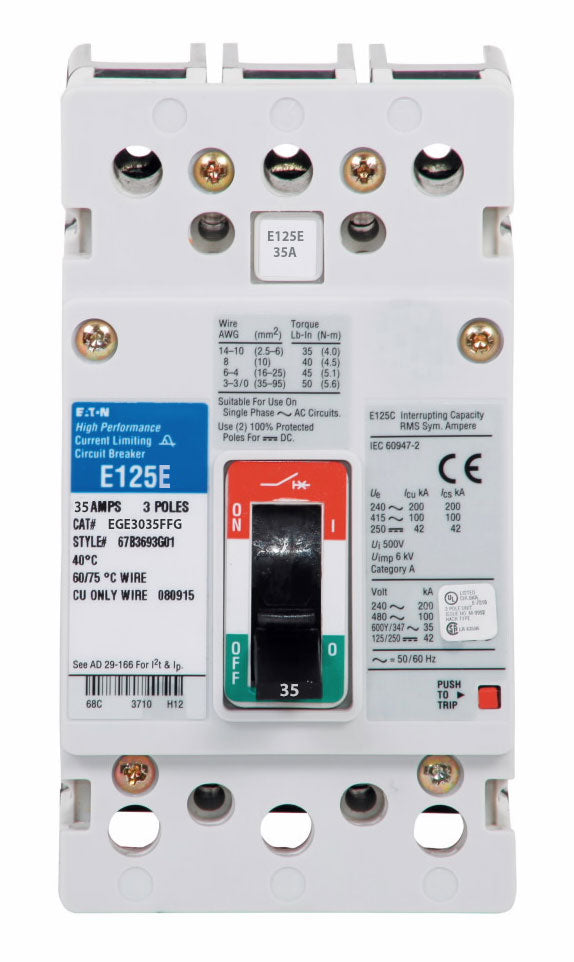

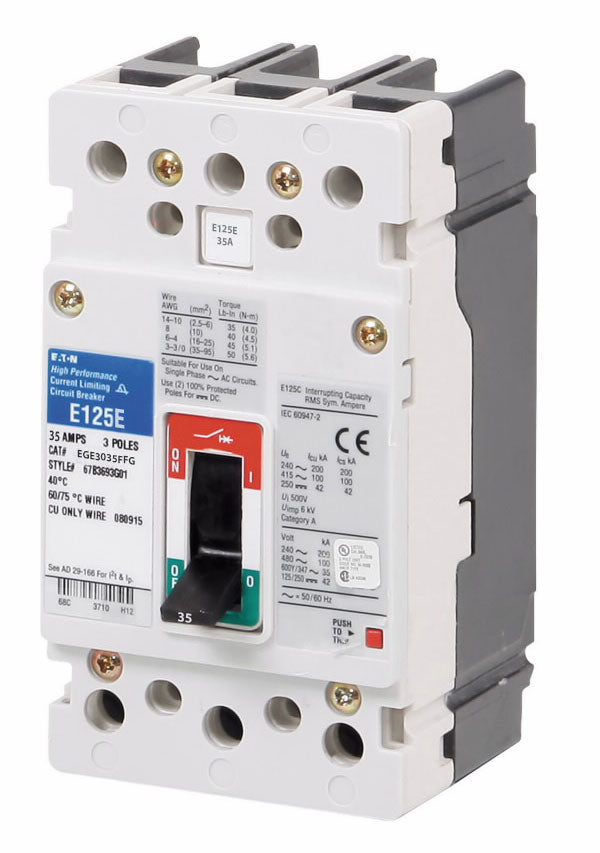

EGE3035FFG - Cutler Hammer 35A 600V 3-Pole Series G Molded Case Circuit Breaker

EGE3035FFG

EGE3035FFG is a Cutler Hammer Series G molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.This 3-pole circuit breaker features a 35 ampere rating and is rated for 600Y/347 Vac operation. It includes fixed thermal and fixed magnetic trip units for dependable overcurrent protection. The breaker has interrupt ratings of 35 kA at 240 Vac, 25 kA at 480 Vac, and 18 kA at 600Y/347 Vac, suitable for a variety of power distribution systems. It supports line and load connections and operates at 50/60 Hz frequency.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: EGE3035FFG
• Series: G (EG frame)
• Poles: 3
• Amperage: 35 A
• Voltage Rating: 600Y/347 Vac
• Interrupt Rating: 35 kA at 240 Vac, 25 kA at 480 Vac, 18 kA at 600Y/347 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Frequency: 50/60 Hz
• Mounting: Line and load terminals
• Certifications: UL Listed, CSA Certified, IEC Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGE3035FFG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGE
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114876732
• GTIN : 00782114876732
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : IEC Rated,CSA Certified,UL Listed,CE Marked
