Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
EGC3125FFG

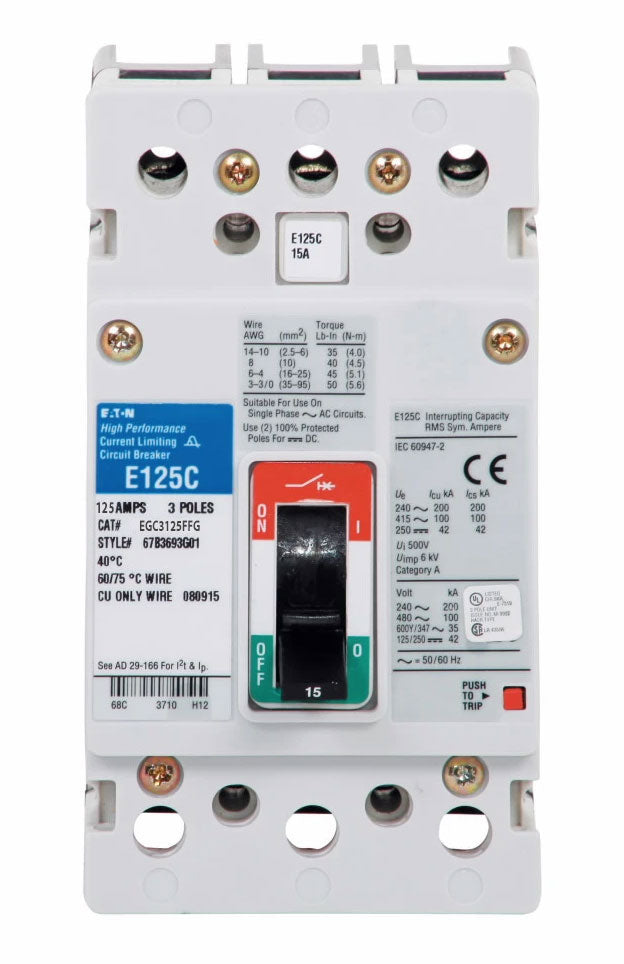

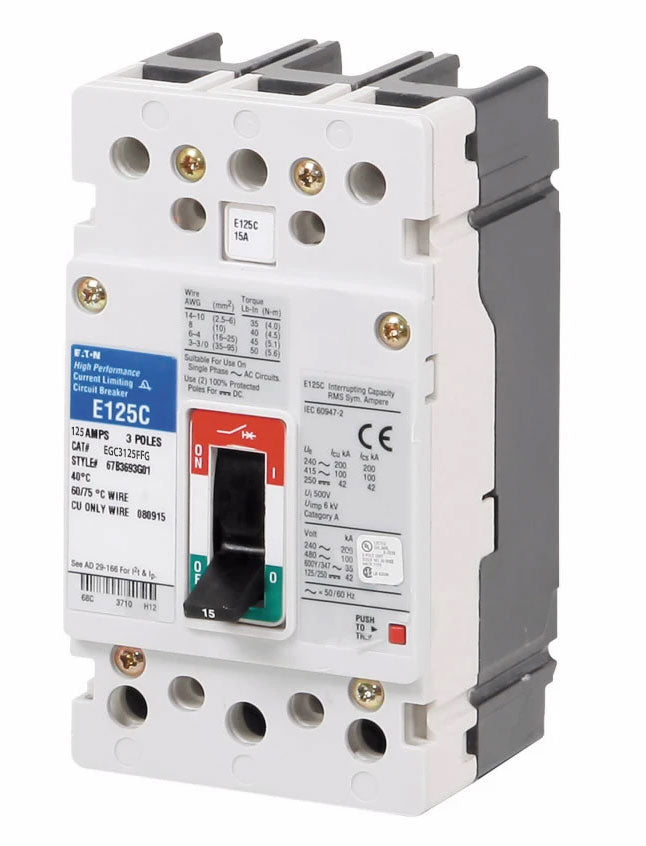

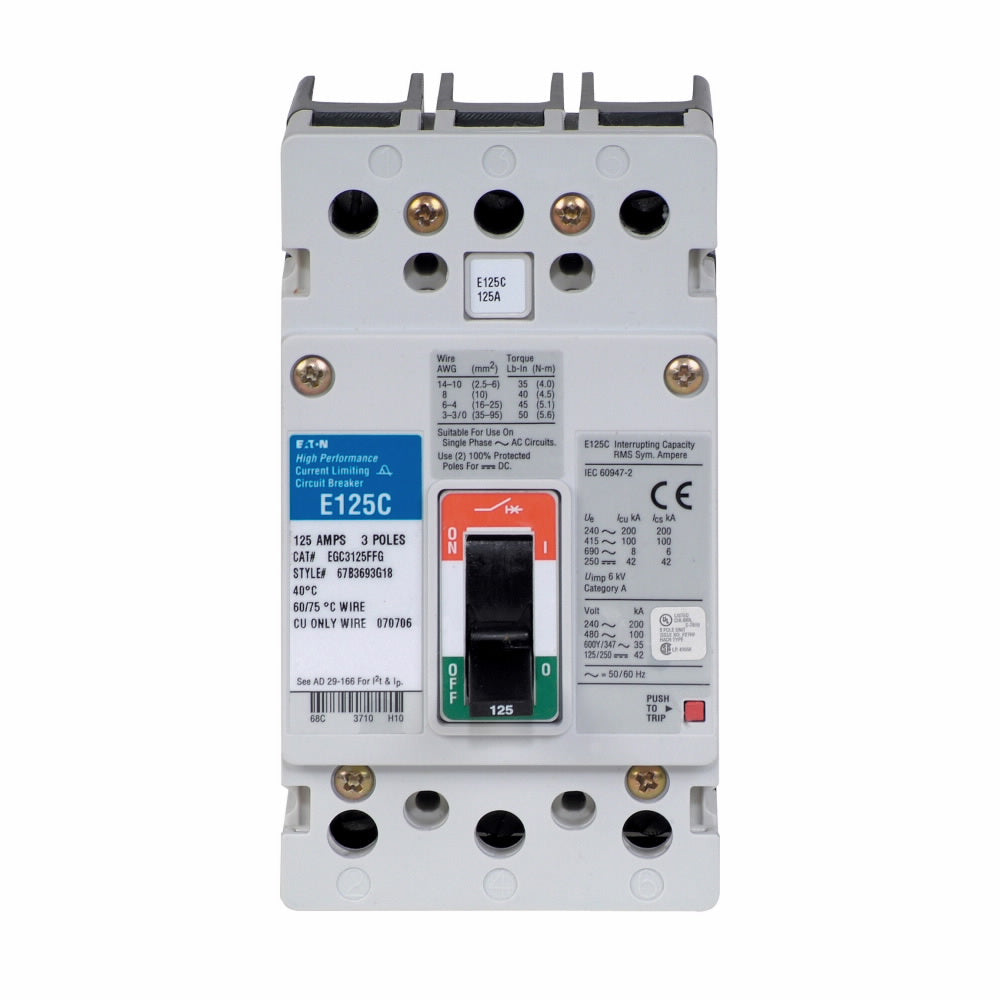

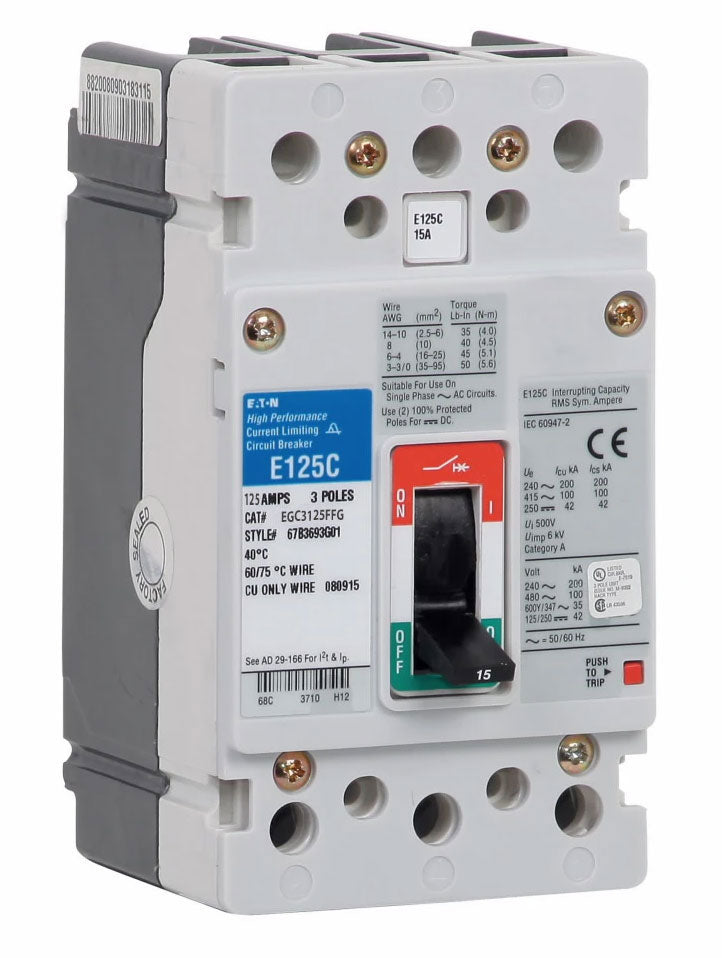

EGC3125FFG is a Cutler Hammer Series G molded case circuit breaker rated for 125 amps and 600Y/347 VAC voltage with 3 poles.This circuit breaker features a fixed thermal and fixed magnetic trip unit designed for reliable protection in electrical distribution systems. It has a high interrupt rating of up to 200 kA at 240 VAC and 100 kA at 480 VAC, suitable for demanding industrial applications. The breaker is part of the EG frame and supports fixed mounting.
- Key Specifications
- Amperage: 125 Amps
- Voltage Rating: 600Y/347 VAC
- Poles: 3
- Interrupt Rating: 200 kA at 240 VAC, 100 kA at 480 VAC
- Trip Unit: Fixed Thermal/Fixed Magnetic
- Series/Frame: Series G, EG Frame
- Mounting Type: Fixed
- Certifications: Eaton Cutler Hammer standard certifications
- Part Number: EGC3125FFG
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : EGC
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 786685140094
- GTIN : 00786685140094
- Country of Origin : Dominican Republic
- Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
