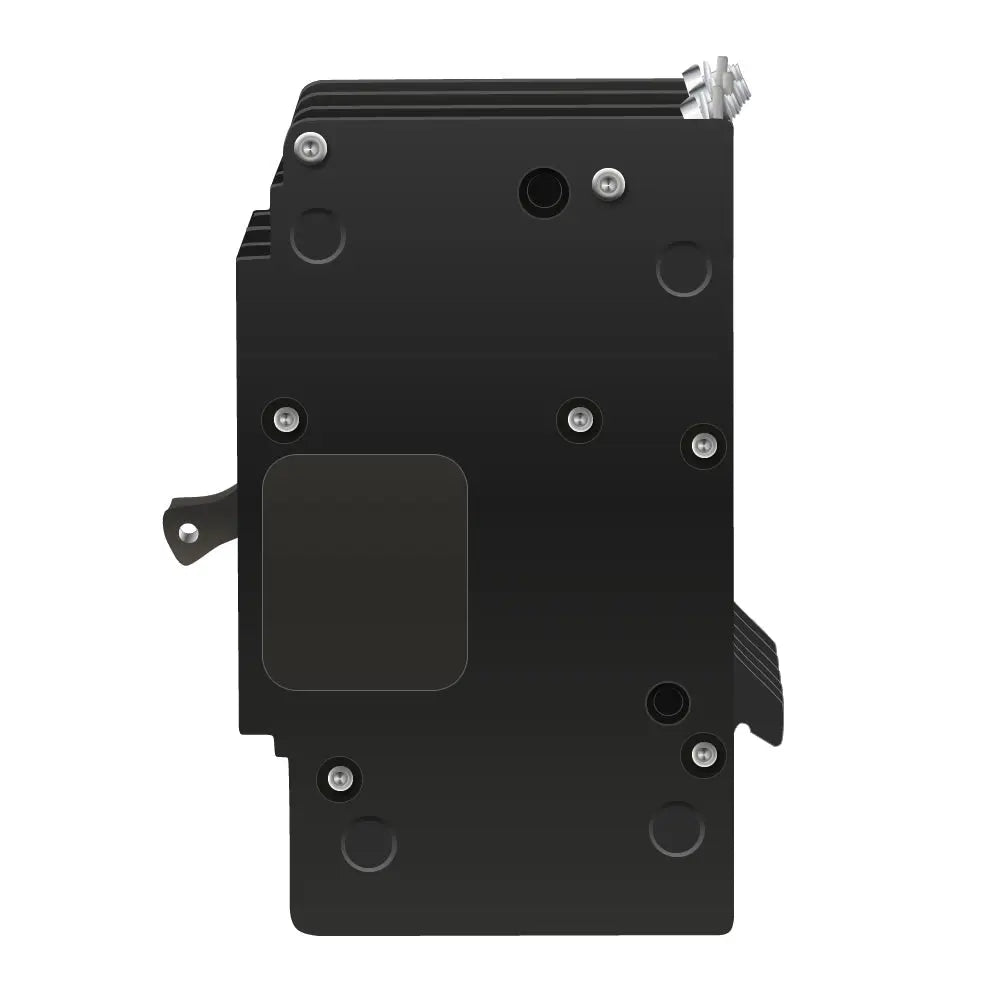

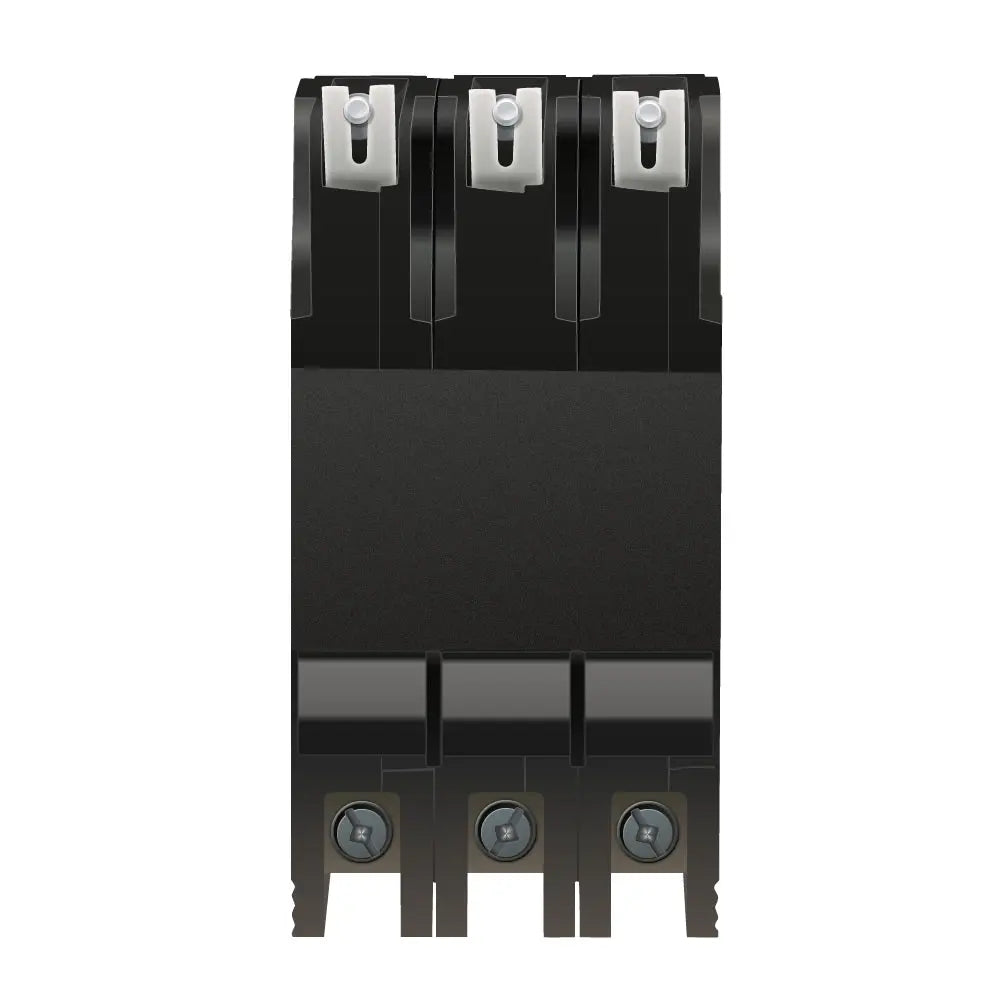

EGB36080 - Square D 80A 3-Pole E-Frame Circuit Breaker 600Y/347 VAC Bolt-On Mount

EGB36080

EGB36080 is a Square D 80 Amp, 3-pole E-Frame circuit breaker designed for 600Y/347 VAC applications with bolt-on mounting.This circuit breaker provides superior overload and short circuit protection with a thermal-magnetic trip unit. It is rated for use in lighting panelboards and features a 65 kA interrupt rating at 240 VAC and 35 kA at 480Y/277 VAC. The breaker is HACR rated and calibrated for 40 degrees Celsius operation. It includes a signal indicator to show when a trip has occurred and is designed for reliable performance in Square D NF panelboards.

Key Specifications
• Amperage: 80 Amp
• Poles: 3
• Voltage Rating: 600Y/347 VAC
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480Y/277 VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Series/Frame: E-Frame
• HACR Rated
• Signal Trip Indicator
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: EGB36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 480
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78590157864
• GTIN : 00785901578642
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.64
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
