EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series

Save $644.44
SKU: EGB36020-New
Condition: New
Price:
$486.56 $1,131.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

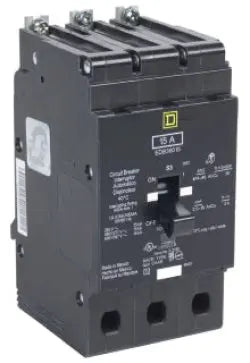

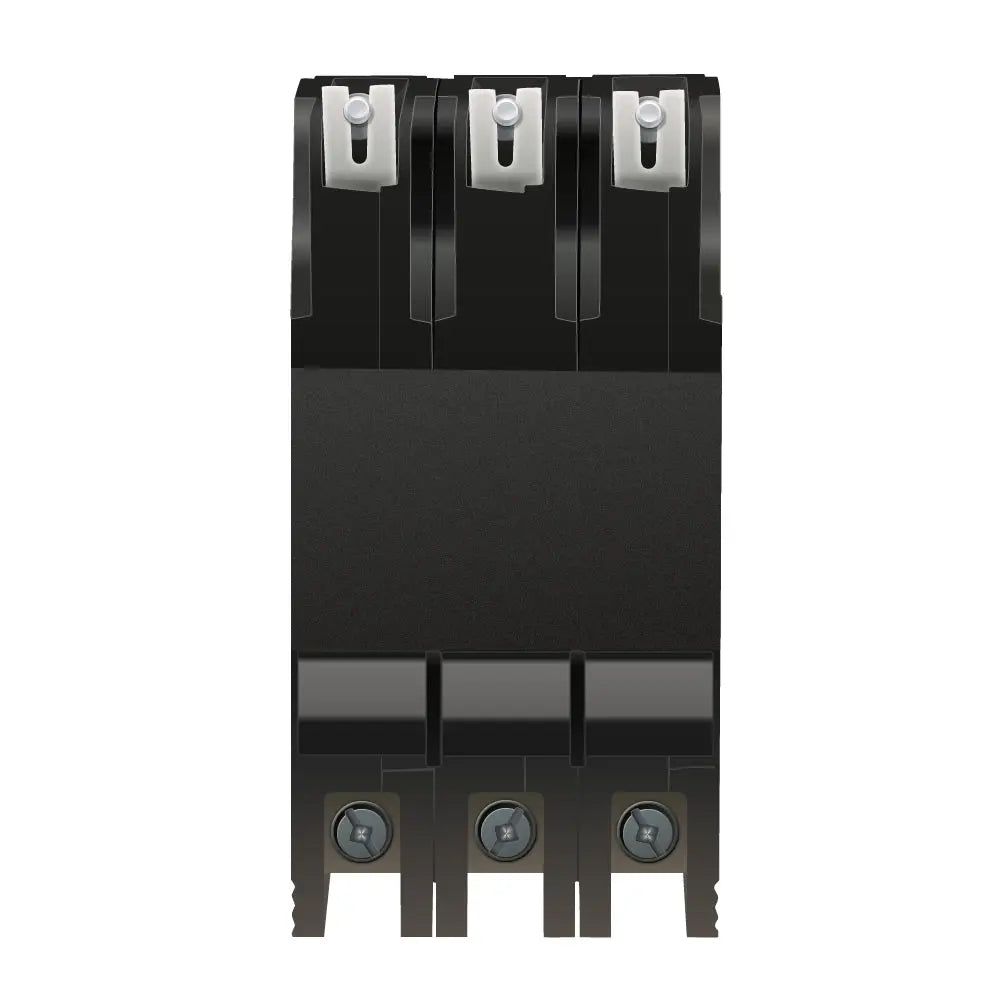

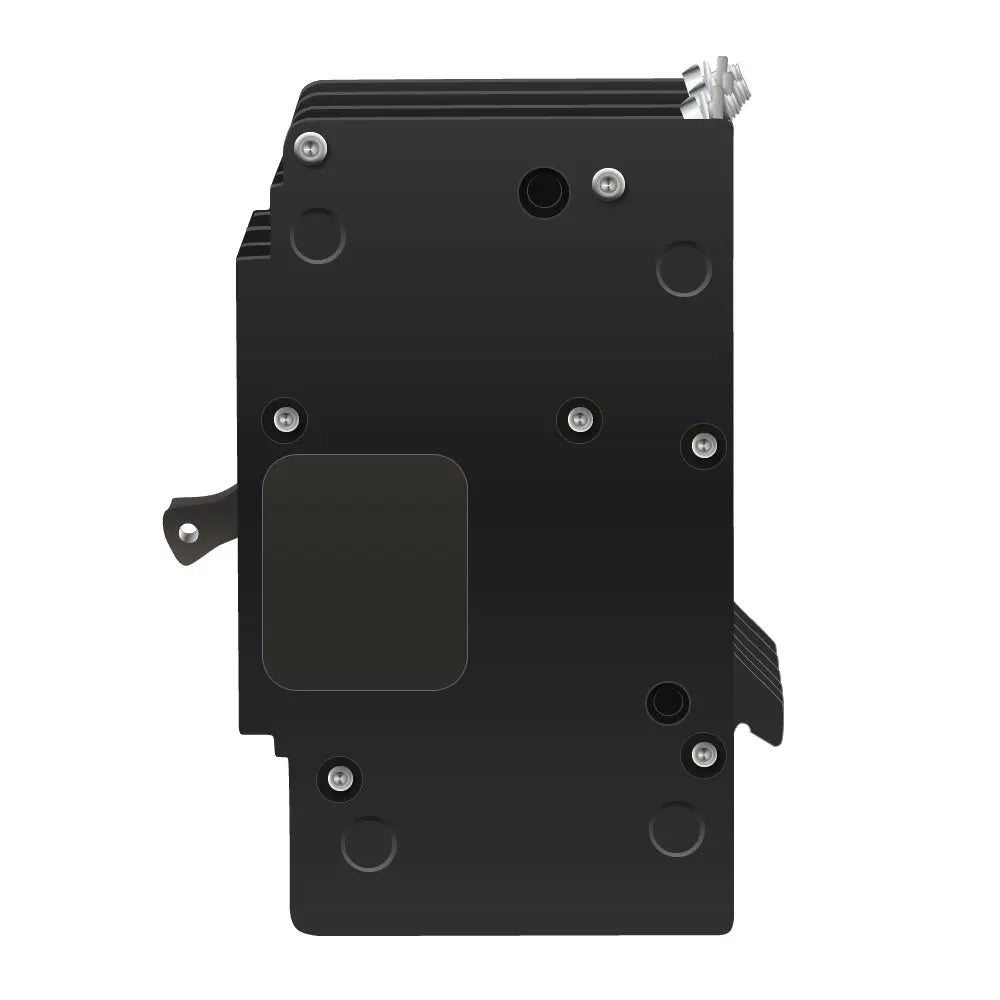

EGB36020 - Schneider Electric/ Square D Bolt-On 20 Amp 3 Pole Circuit Breaker - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EGB36020 - Schneider Electric/ Square D Bolt-On 20 Amp 3 Pole Circuit Breaker - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply
EGB36020 - Square D 20A 3-Pole Bolt-On Molded Case Circuit Breaker 600Y/347V EGB Series - Essential Electric Supply

Description

EGB36020


EGB36020 is a 3-pole, 20A molded case circuit breaker from the Square D EGB series, designed for bolt-on installation in NF panelboards. This breaker features a thermal-magnetic trip unit and is rated for 600Y/347V AC systems, providing reliable protection for commercial and industrial applications. The EGB36020 is built with an E-Frame module and offers a short-circuit interrupting rating of 18 kA at 600Y/347V AC. It is suitable for use in lighting, HID, and HACR-rated circuits, and includes a trip indicator for local signaling. The breaker is UL listed for both US and Canada, and features aluminum lugs for electrical connection.
  • Part Number: EGB36020
  • Manufacturer: Square D
  • Series: EGB
  • Frame: E-Frame
  • Poles: 3
  • Amperage: 20A
  • Voltage: 600Y/347V AC
  • Mounting Type: Bolt-On
  • Interrupt Rating: 18 kA @ 600Y/347V AC
  • Trip Unit: Thermal-Magnetic
  • Protection: Short-Circuit / Overload
  • Certifications: UL Listed (US & Canada)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: EGB36020
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : EGB Series
  • Type : EGB
  • Voltage : 480
  • Amperage : 20
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : G; E-Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901234838
  • GTIN : 00785901234838
  • Country of Origin : Mexico
  • Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
  • Weight : 3.79
  • Panel Type : NF panelboard
  • Standards : cULus
  • Certification : cULus
  • Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
