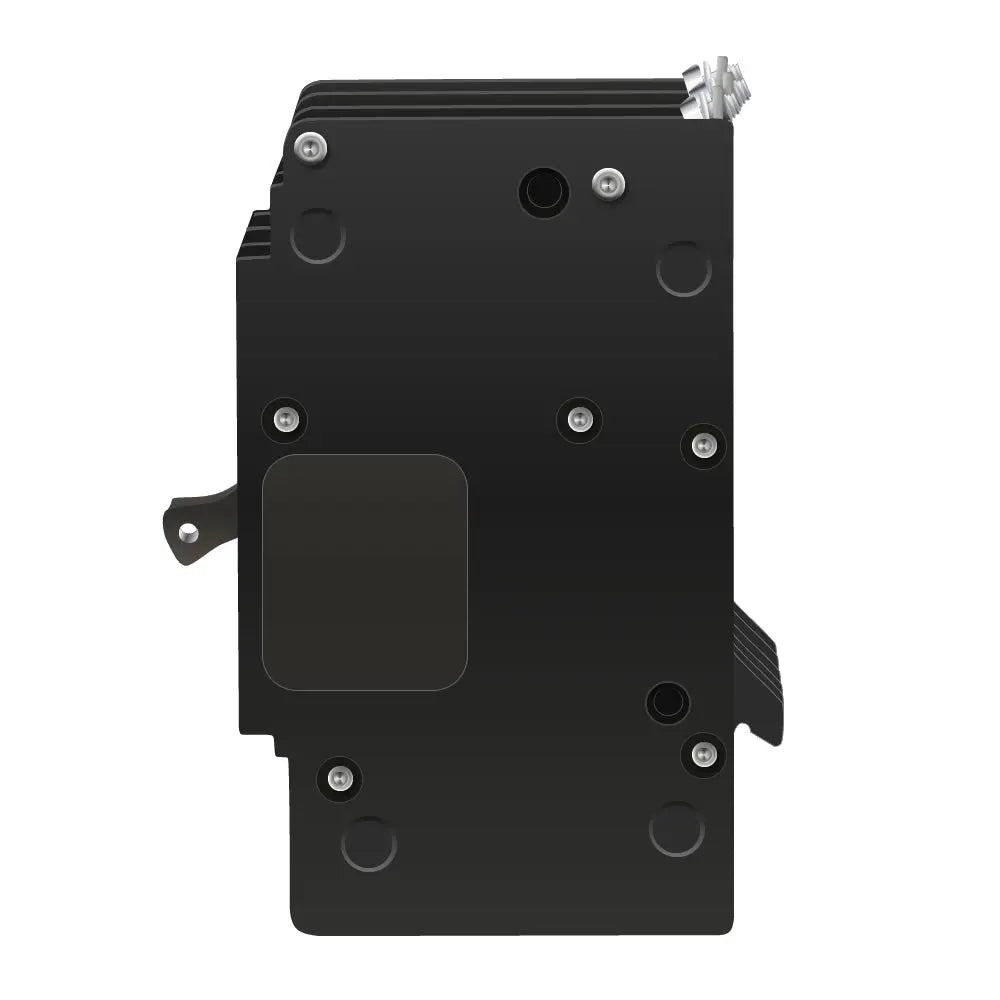

EGB36070 - Square D E-Frame 70A 3 Pole Bolt-On Circuit Breaker 600V 35kA

EGB36070

EGB36070 is a 3 pole, 70 amp, bolt-on circuit breaker from Square D's E-Frame series, designed for reliable branch circuit protection in commercial and industrial applications. This breaker features a thermal-magnetic trip unit and is rated for 600Y/347V AC systems. It is suitable for use in panelboards requiring a compact, high-performance solution with a 35kA interrupt rating at 480Y/277V AC. The EGB36070 is engineered for durability and safety, supporting bolt-on mounting for secure installation. Its thermal-magnetic trip mechanism provides both overload and short-circuit protection, making it ideal for a wide range of electrical distribution needs.

• Part Number: EGB36070
• Manufacturer: Square D
• Series/Frame: E-Frame
• Amperage: 70A
• Number of Poles: 3
• Voltage Rating: 600Y/347V AC
• Interrupt Rating: 35kA @ 480Y/277V AC
• Mounting Type: Bolt-On
• Tripping Mechanism: Thermal-Magnetic
• UL Listed (US and Canada)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 480
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901412328
• GTIN : 00785901412328
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.64
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
