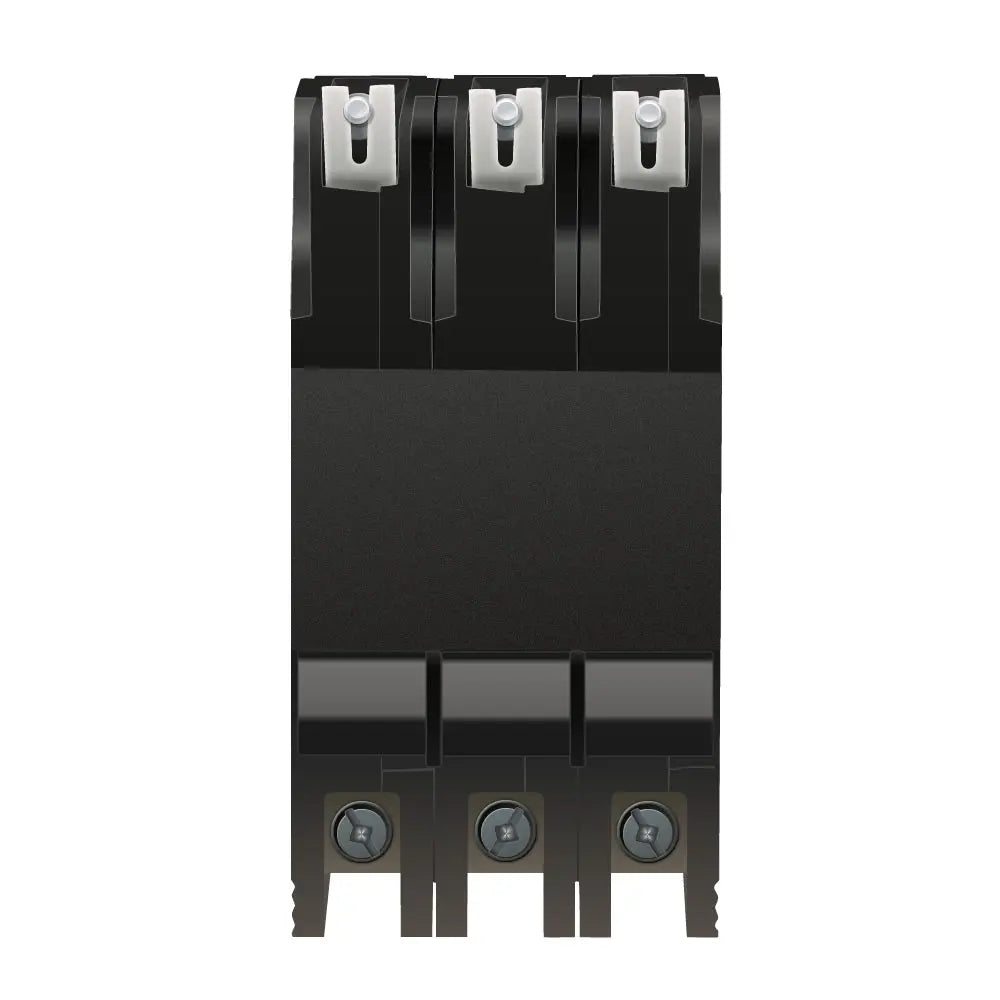

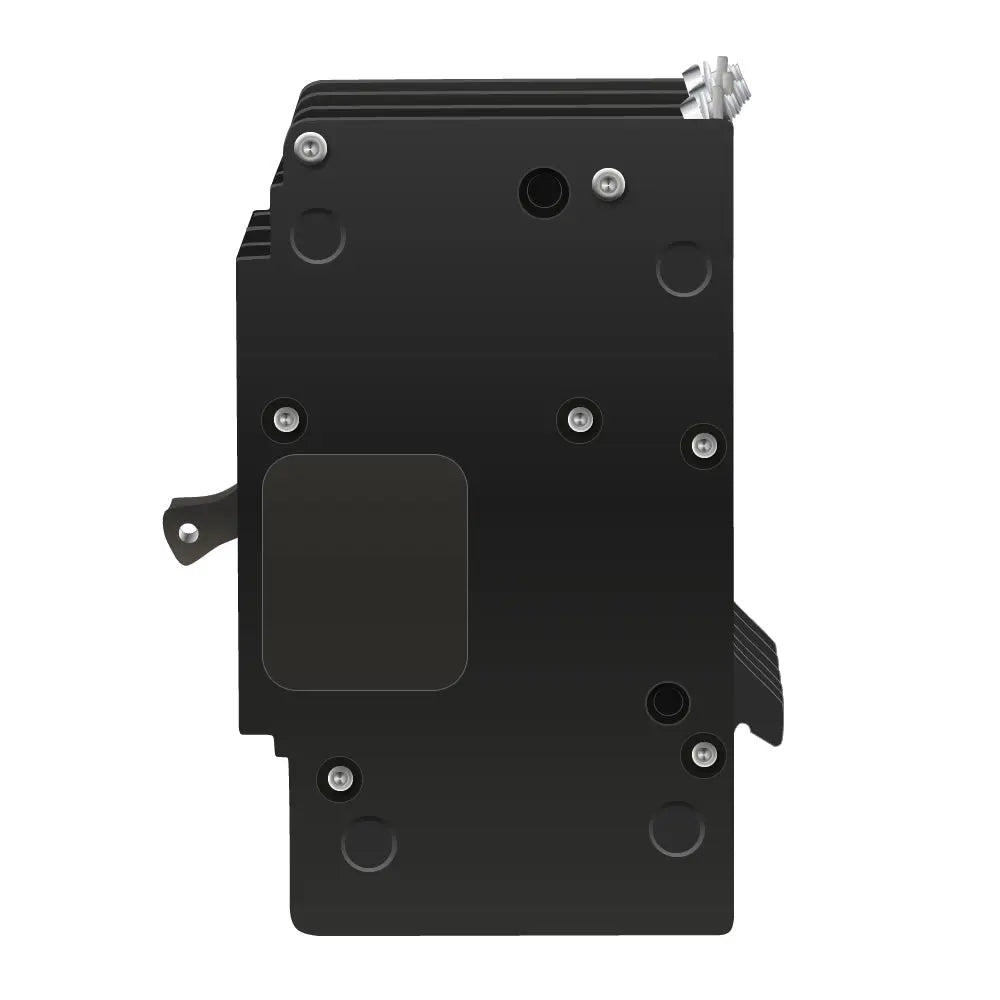

EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker

Save $644.44
SKU: EGB36030-New
Condition: New
Price:
$486.56 $1,131.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

EGB36030 - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EGB36030 - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply
EGB36030 - Square D 30 Amp 600Y/347 VAC 3 Pole E-Frame Bolt-On Circuit Breaker - Essential Electric Supply

Description

EGB36030


EGB36030 is a Square D 3 pole, 30 amp, 600Y/347 VAC molded case circuit breaker designed for bolt-on mounting in Square D NF panelboards.This E-Frame breaker features thermal magnetic trip units with long-time and instantaneous trip functions, providing reliable short-circuit and overload protection. It has a high interrupting capacity rated at 65 kA at 240 VAC and 35 kA at 480Y/277 VAC, suitable for commercial and industrial applications. The breaker supports aluminum and copper lugs and includes a trip indicator for local signaling.
  • Amperage: 30 Amp
  • Voltage: 600Y/347 VAC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480Y/277 VAC
  • Series/Frame: E-Frame (EGB Series)
  • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
  • Connection: Aluminum and Copper Lugs
  • Application: HID-Rated, HACR-Rated
  • Dimensions (HxWxD): 5.66 x 2.94 x 4.05 inches
  • Certifications: UL Listed (Canada and US)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: EGB36030
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : EGB Series
  • Type : EGB
  • Voltage : 480
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : G; E-Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901234418
  • GTIN : 00785901234418
  • Country of Origin : Mexico
  • Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
  • Weight : 3.71
  • Panel Type : NF panelboard
  • Standards : cULus
  • Certification : cULus
  • Wire Size : AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
