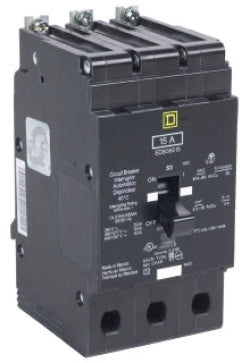

EGB36015 - Square D 15A 600Y/347V 3-Pole Bolt-On Molded Case Circuit Breaker E-Frame Thermal Magnetic Trip

EGB36015

EGB36015 is a 3-pole, 15 amp bolt-on molded case circuit breaker from Square D designed for 600Y/347V AC systems with thermal magnetic trip protection.This Square D EGB36015 circuit breaker features a thermal-magnetic trip unit for reliable short-circuit and overload protection. It is part of the EGB series with an E-frame design, suitable for bolt-on mounting in Square D NF panelboards. The breaker supports aluminum and copper lug connections and is rated for 18 kA interrupt capacity at 600Y/347V AC. It includes a trip indicator for local signaling and is HACR and HID rated for lighting applications.

Key Specifications
• Amperage: 15A
• Voltage: 600Y/347V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18 kA at 600Y/347V AC
• Series/Frame: EGB Series, E-Frame
• Trip Unit: Thermal Magnetic
• Connection: Aluminum and Copper Lugs
• Application: HID-Rated, HACR-Rated
• Dimensions: 5.66" x 2.94" x 4.05"
• Certifications: UL Listed, cULus, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: EGB36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 480
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : G; E-Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901234463
• GTIN : 00785901234463
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.781
• Panel Type : NF panelboard
• Standards : cULus
• Certification : cULus
• Wire Size : AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
