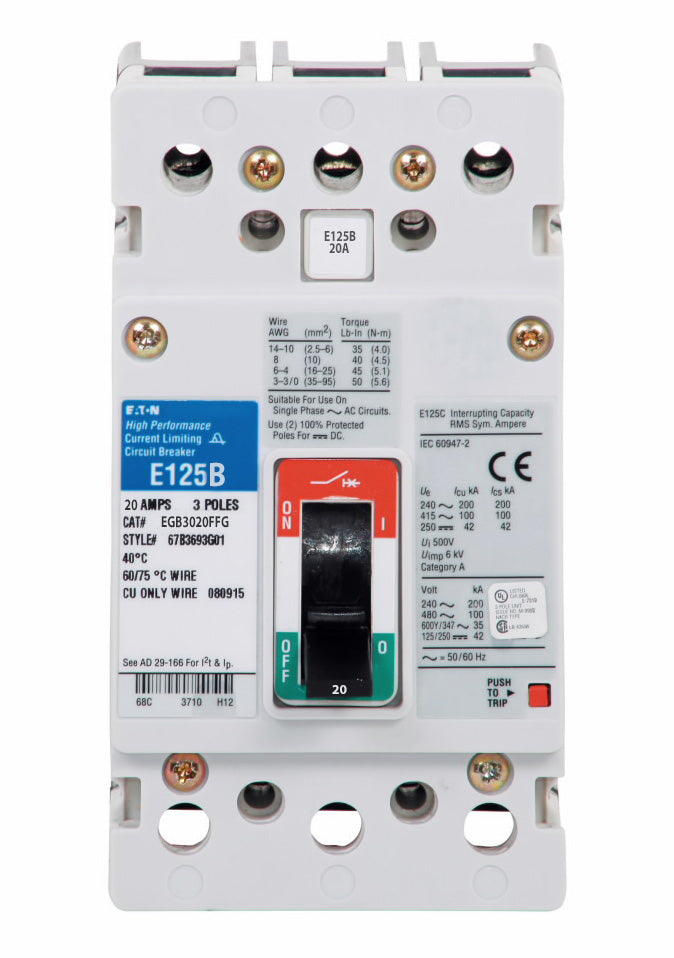

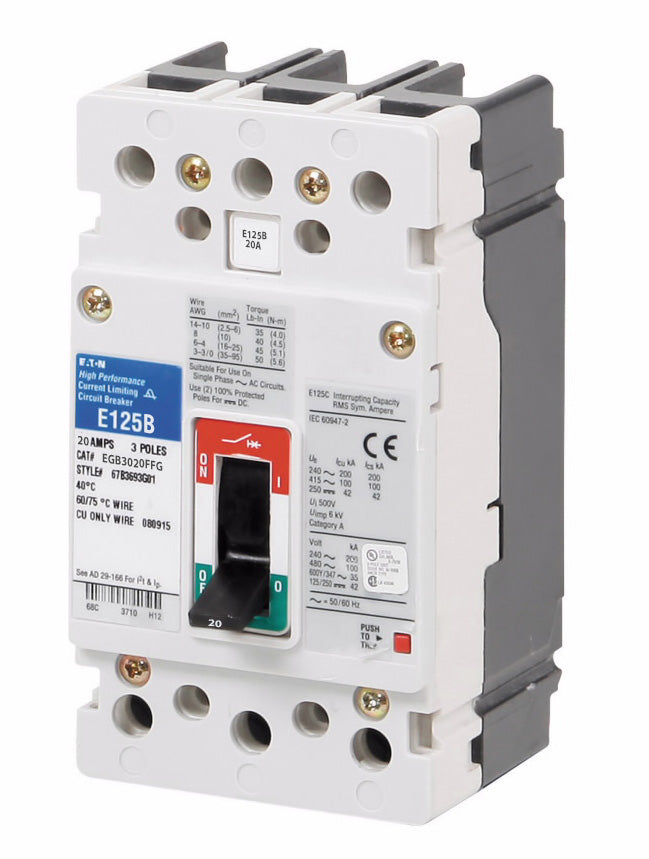

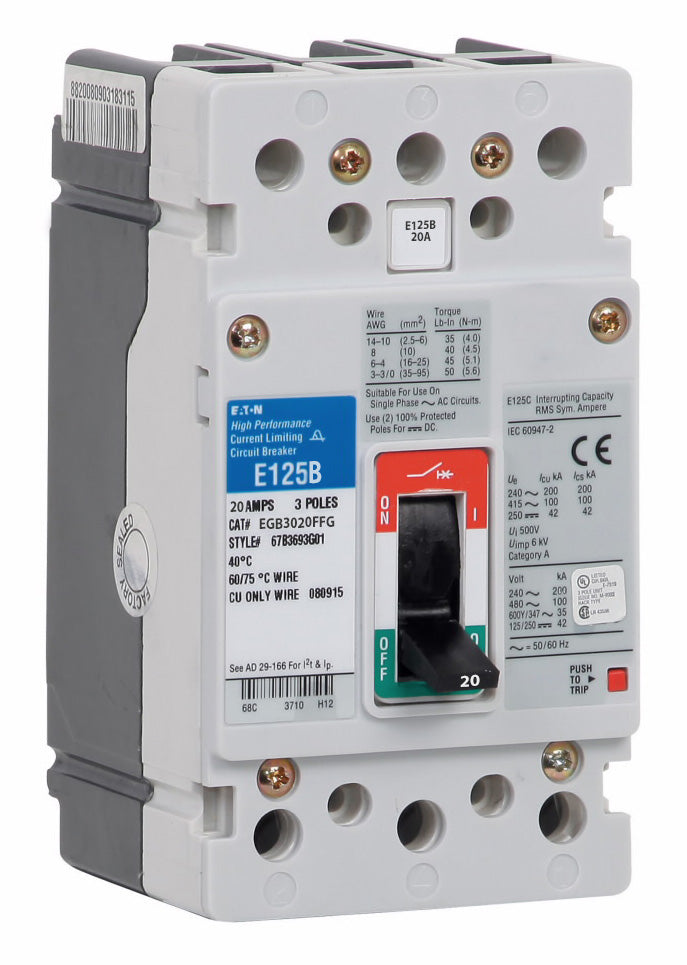

EGB3020FFG - Cutler Hammer 20A 480V 3-Pole Molded Case Circuit Breaker Series G

EGB3020FFG

This circuit breaker features thermal magnetic trip units with long-time and instantaneous trip functions, a feed-thru connection type, and a standard interrupt rating of 18 kA at 480 VAC and 25 kA at 240 VAC. It is designed for three-phase applications and includes line and load side lug terminals. The breaker frame type is EGB and it complies with industry standards for safety and performance.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 480 VAC (600Y/347 VAC max)
• Poles: 3
• Frame/Series: EGB / Series G
• Interrupt Rating: 18 kA @ 480 VAC, 25 kA @ 240 VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Connection Type: Feed-Thru
• Phase: 3-Phase
• Mounting Type: Molded Case
• Weight: Approx. 3 lbs
• Dimensions: 5.5" x 3" x 2.99"
• Certifications: Meets applicable industry safety standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: EGB3020FFG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGB
• Voltage : 480
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 782116131303
• GTIN : 00782116131303
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed,CSA Certified,IEC Rated,CE Marked
