Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
EGB2070FFG

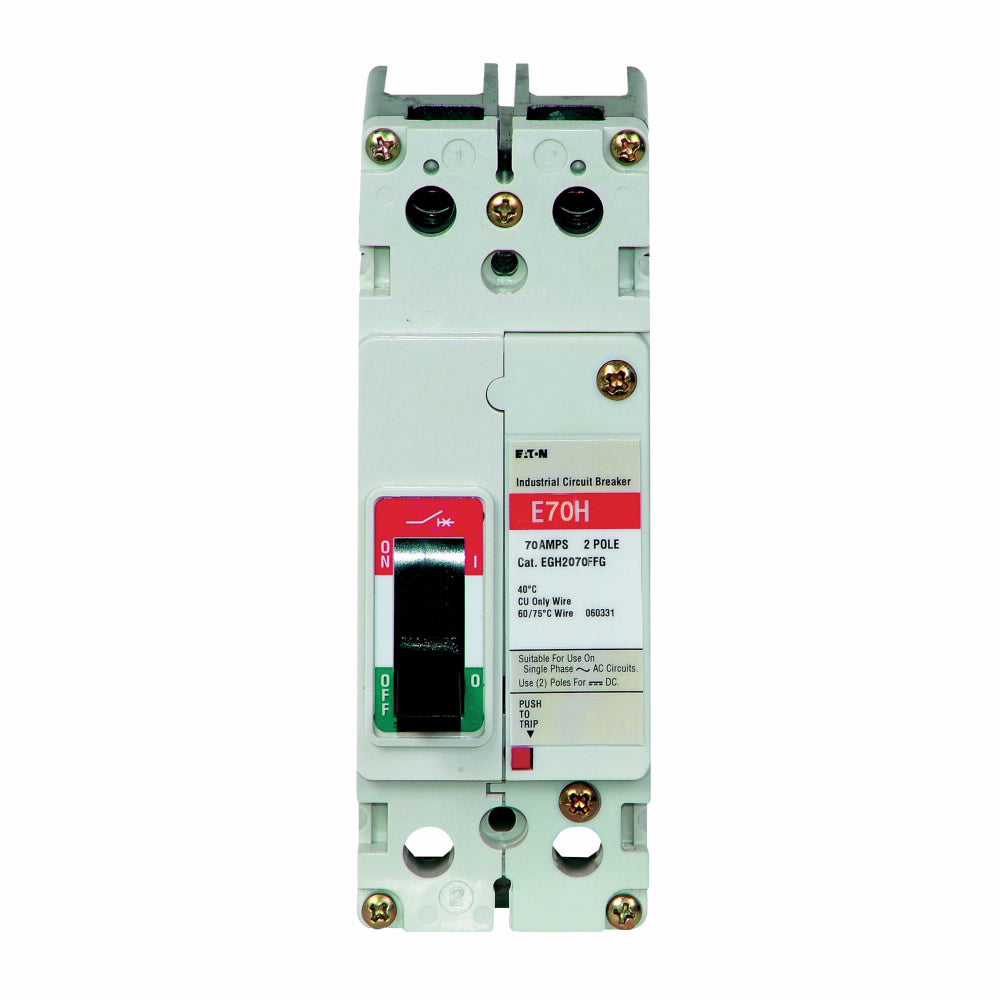

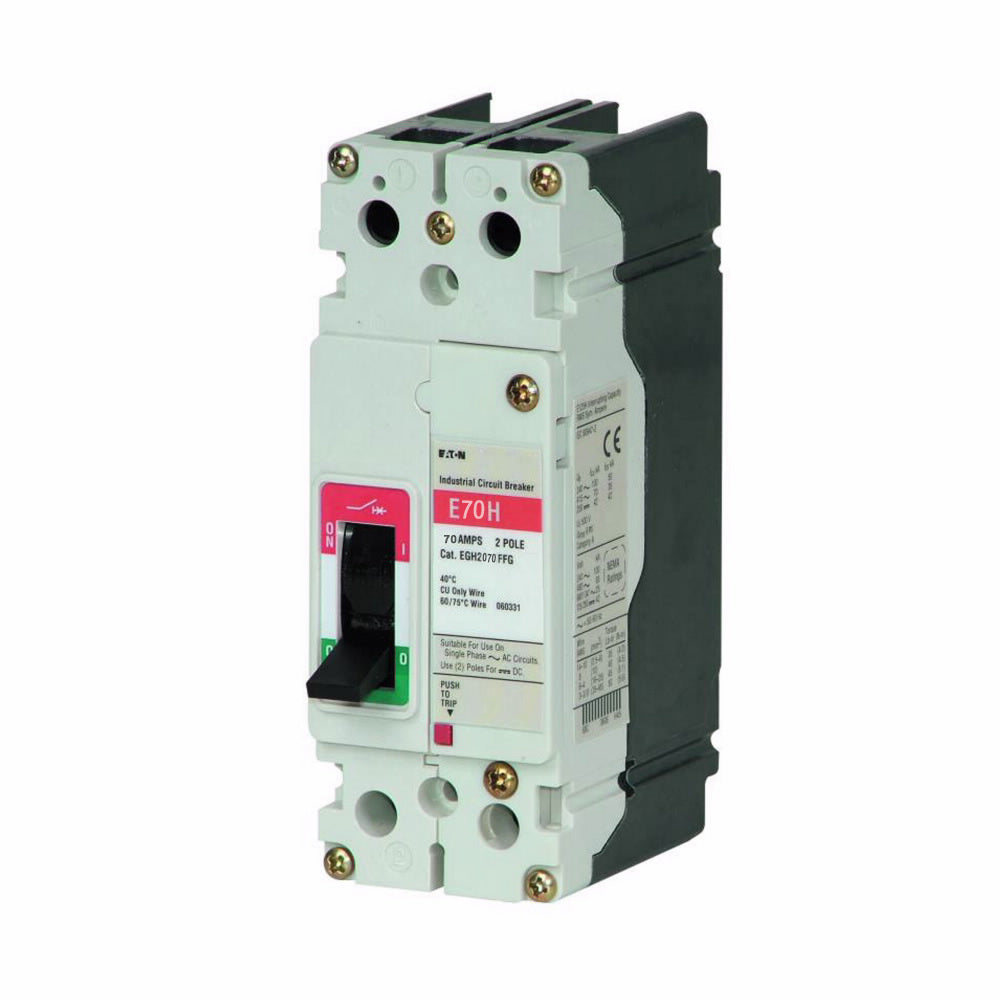

EGB2070FFG is a Cutler Hammer 2-pole molded case circuit breaker rated for 70 amps and 480 volts AC, designed for panel mounting.
This EGB2070FFG breaker belongs to the EG frame series and features fixed thermal and fixed magnetic trip units. It provides reliable protection with an interrupt rating of 18 kA at 480 VAC and 25 kA at 240 VAC. The breaker is suitable for 50/60 Hz applications and includes feed-thru connection capability.
- Key Specifications
- Amperage: 70 A
- Voltage Rating: 480 VAC (600Y/347 VAC)
- Poles: 2
- Frame Type: EG Series
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Interrupt Rating: 18 kA at 480 VAC, 25 kA at 240 VAC
- Mounting Type: Panel Mount
- Frequency: 50/60 Hz
- Connection Type: Feed-Thru
- Manufacturer: Cutler Hammer (Eaton)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: EGB2070FFG
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : EGB
- Voltage : 480
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786685018522
- GTIN : 00786685018522
- Country of Origin : Dominican Republic
- Dimensions : 2.99 in x 5.5 in x 2 in (Length/Depth x Height x Width)
- Weight : 2
- Certification : IEC Rated,UL Listed,CSA Certified,CE Marked
