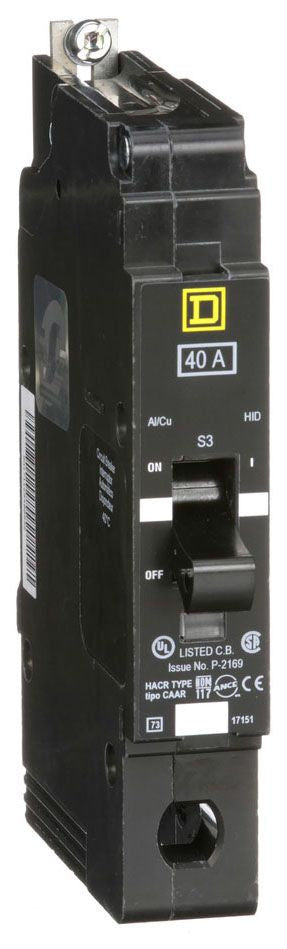

EGB14040 - Square D 40A 277VAC 1-Pole E-Frame Bolt-On Circuit Breaker Thermal Magnetic Trip

Save $165.20
SKU: EGB14040-New
Condition: New
Price:
$89.80 $255.00
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

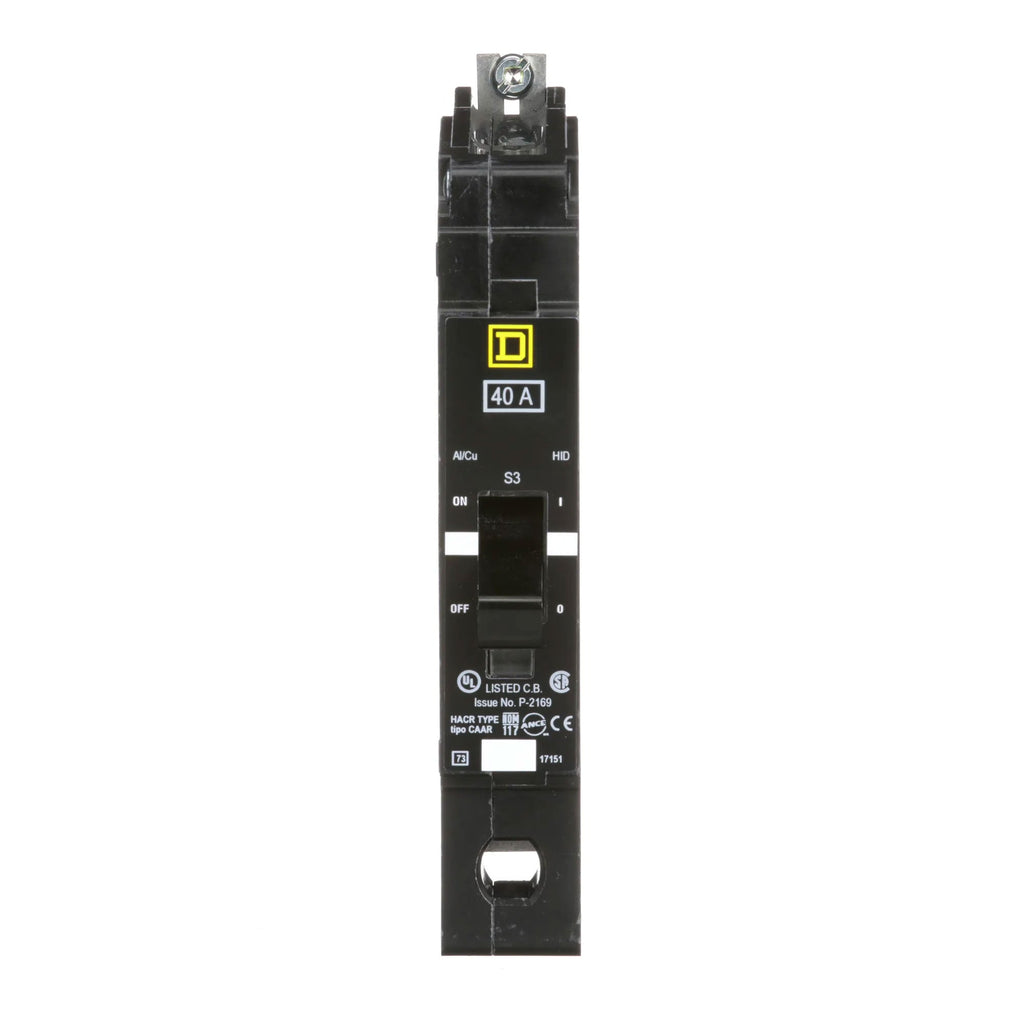

EGB14040 - Schneider Electric/ Square D Bolt-On 40 Amp 1 Pole Circuit Breaker - Essential Electric Supply
EGB14040 - Square D 40A 277VAC 1-Pole E-Frame Bolt-On Circuit Breaker Thermal Magnetic Trip - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EGB14040 - Schneider Electric/ Square D Bolt-On 40 Amp 1 Pole Circuit Breaker - Essential Electric Supply
EGB14040 - Square D 40A 277VAC 1-Pole E-Frame Bolt-On Circuit Breaker Thermal Magnetic Trip - Essential Electric Supply

Description

EGB14040


EGB14040 is a Square D 40 Amp, 277 VAC, 1-pole miniature circuit breaker with thermal magnetic trip and bolt-on mounting.This Square D E-Frame molded case circuit breaker features a 40 Amp amperage rating, 277 VAC voltage rating, and 1 pole for single-phase applications. It has a thermal magnetic trip unit with an 1800 A trip range and interrupt ratings of 35 kA at 277 VAC and 65 kA at 120 VAC. The breaker supports wire sizes from 14 to 2/0 AWG with lug connections and is constructed with thermoset composite resin. It is UL listed and CSA certified, designed for bolt-on mounting, and rated for operation at 40 degrees Celsius.
    Key Specifications
    • Amperage: 40 A
    • Voltage: 277 VAC
    • Poles: 1
    • Frame: E-Frame
    • Trip Type: Thermal Magnetic
    • Interrupt Rating: 35 kA @ 277 VAC, 65 kA @ 120 VAC
    • Mounting Type: Bolt-On
    • Wire Size: 14 to 2/0 AWG
    • Connection Type: Lug
    • Frequency: 50/60 Hz
    • Certifications: UL Listed, CSA Certified
    • Operating Temperature: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: EGB14040
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : EGB Series
  • Type : EGB
  • Voltage : 277
  • Amperage : 40
  • Phase : 1
  • Poles : 1
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : G; E-Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901311102
  • GTIN : 00785901311102
  • Country of Origin : Mexico
  • Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
  • Weight : 1.3
  • Panel Type : NF panelboard
  • Standards : cULus
  • Certification : cULus
  • Wire Size : AWG 14 to AWG 2/0, AWG 12 to AWG 2/0, Cu/Al

Accesories

Part Manufacture Sub Category
ECB2HT
