EGB14020EPD - Square D 20A 1 Pole 277V EGB Series Molded Case Circuit Breaker, Bolt-On, Thermal Magnetic Trip, 35kA Interrupt, UL Listed

EGB14020EPD

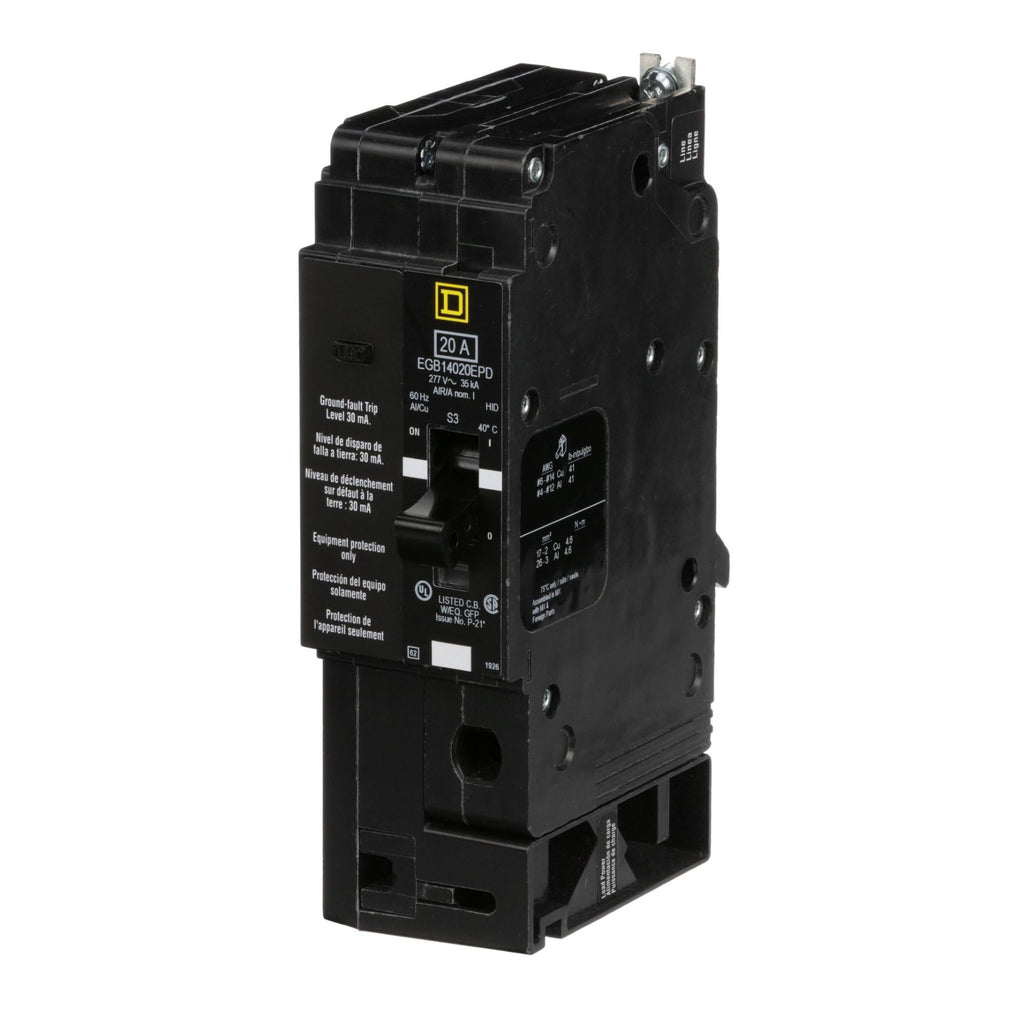

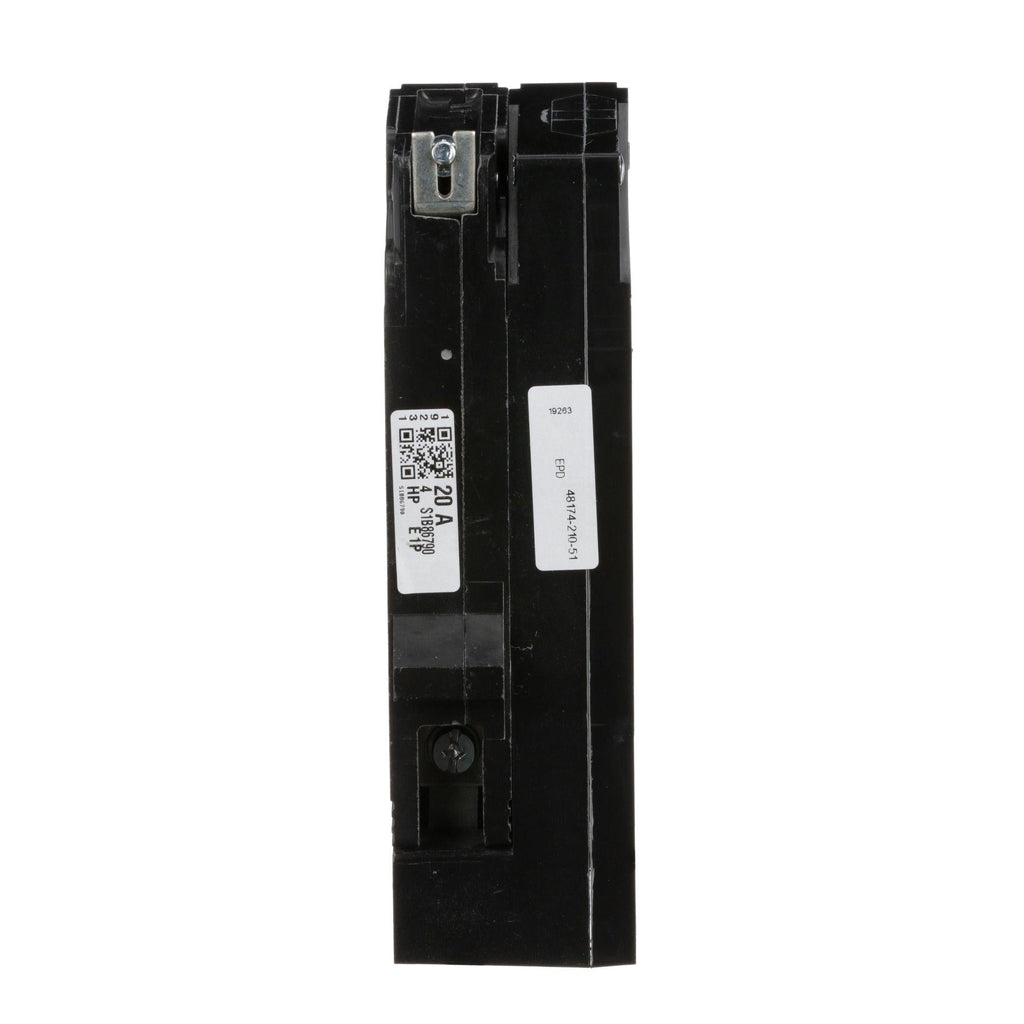

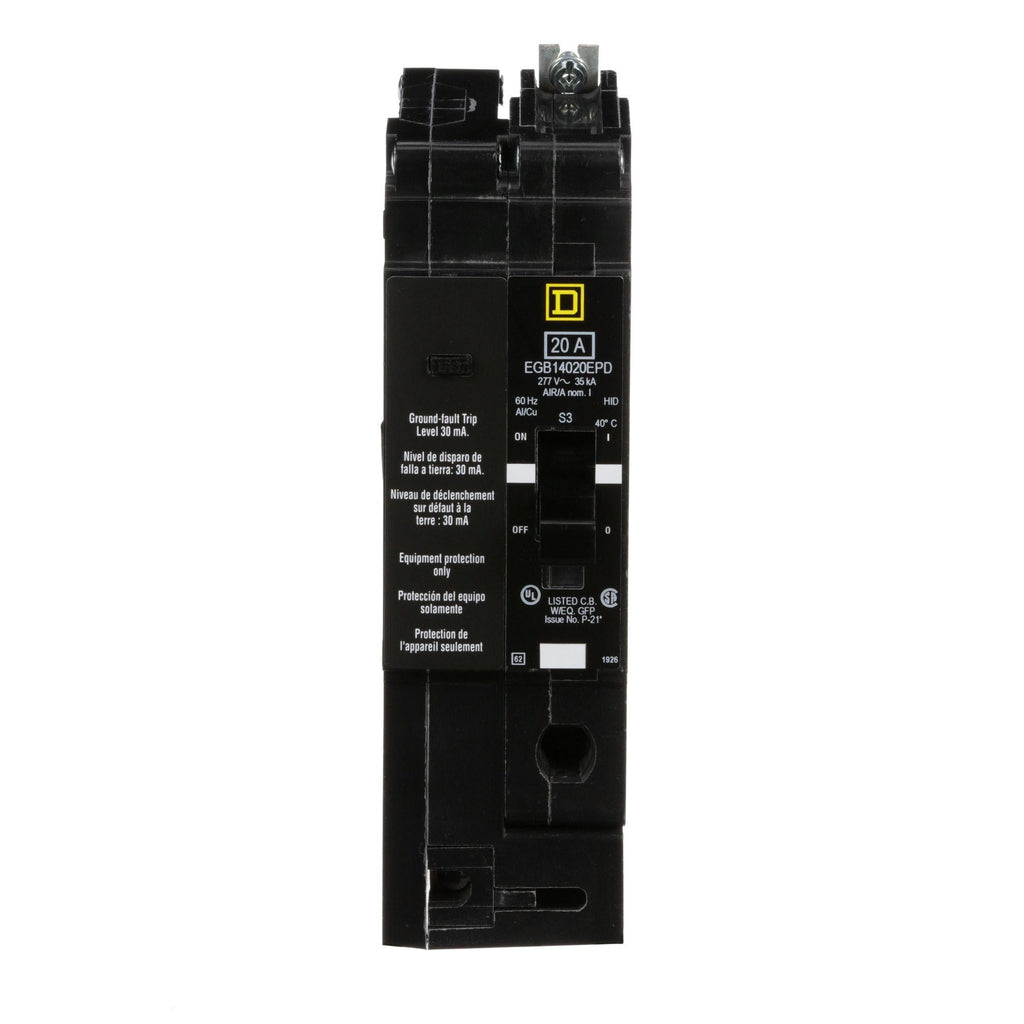

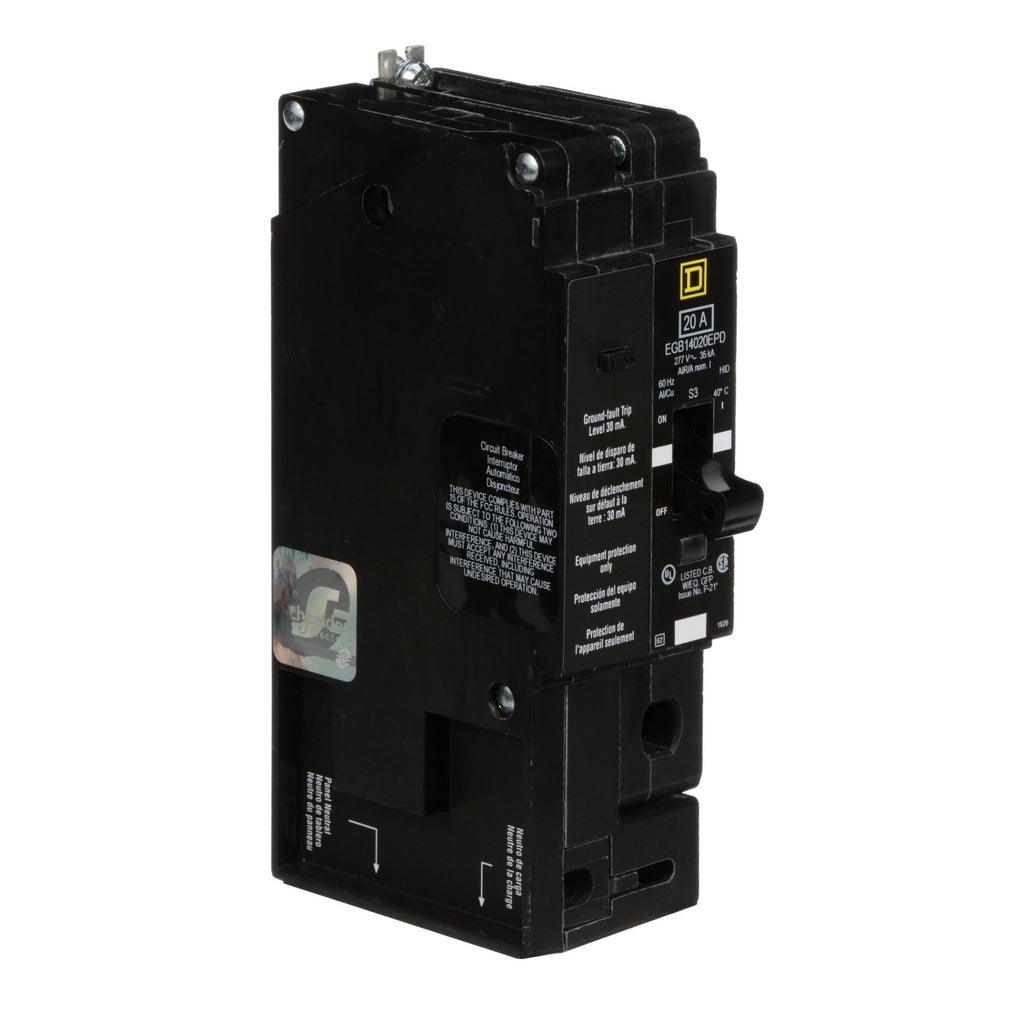

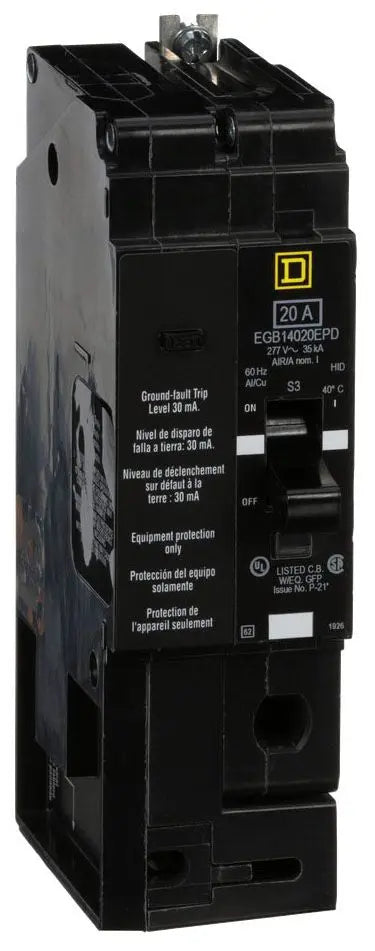

EGB14020EPD is a Square D molded case circuit breaker designed for reliable overload and short circuit protection in lighting panelboard applications.

This 1-pole, 20A breaker operates at 277V AC and features a thermal-magnetic trip unit with both long-time and instantaneous protection. It is part of the EGB series, uses a bolt-on mounting connection, and is compatible with Square D NF panelboards. The breaker is UL listed, CSA approved, and rated for 35kA interrupting capacity at 277V AC (65kA at 120V AC). It accepts 14–6 AWG copper or 12–4 AWG aluminum wire and includes a signal indicator for trip status.

Key Specifications
• Part Number: EGB14020EPD
• Manufacturer: Square D
• Amperage: 20A
• Voltage: 277V AC
• Poles: 1
• Mounting Type: Bolt-On
• Series/Frame: EGB
• Trip Unit: Thermal Magnetic (LI – Long-Time & Instantaneous)
• Interrupt Rating: 35kA at 277V AC, 65kA at 120V AC
• Certifications: UL Listed, CSA Approved
• Wire Size: 14–6 AWG Copper, 12–4 AWG Aluminum
• Dimensions: 6.64" H x 1.96" W x 4.05" D
• Weight: 2 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB14020EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : G; E-Frame
• Temp Rating : 104 °F (40 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 6 AWG (Cu), 4 AWG (Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901470458
• GTIN : 00785901470458
• Country of Origin : Mexico
• Dimensions : 6.64 in (168.66 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.053
• Panel Type : NF panelboard
• Standards : cULus
• Certification : cULus
• Wire Size : AWG 14...AWG 6 copper,AWG 12...AWG 4 aluminium
