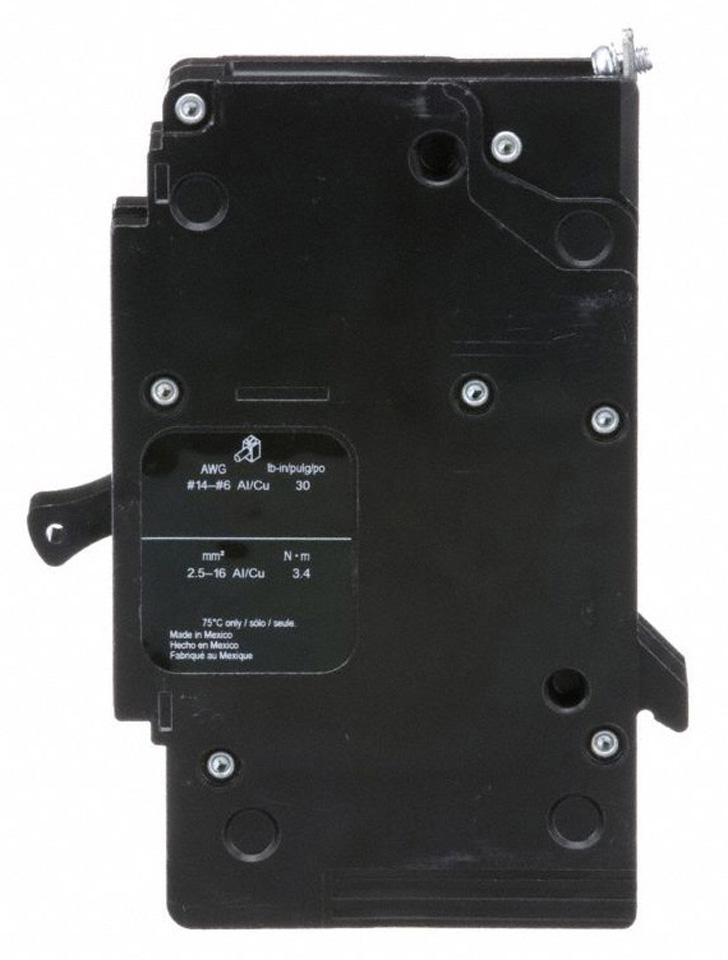

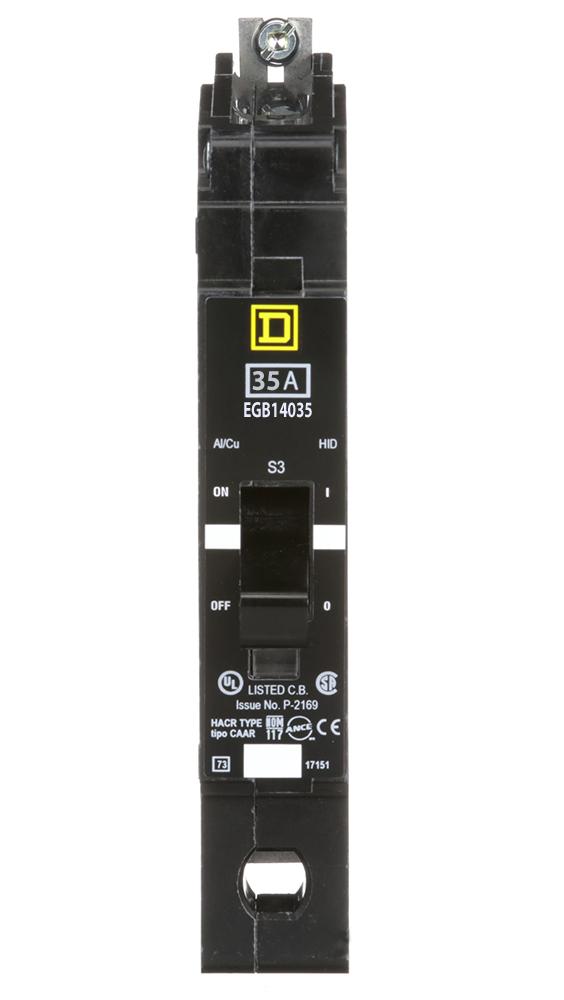

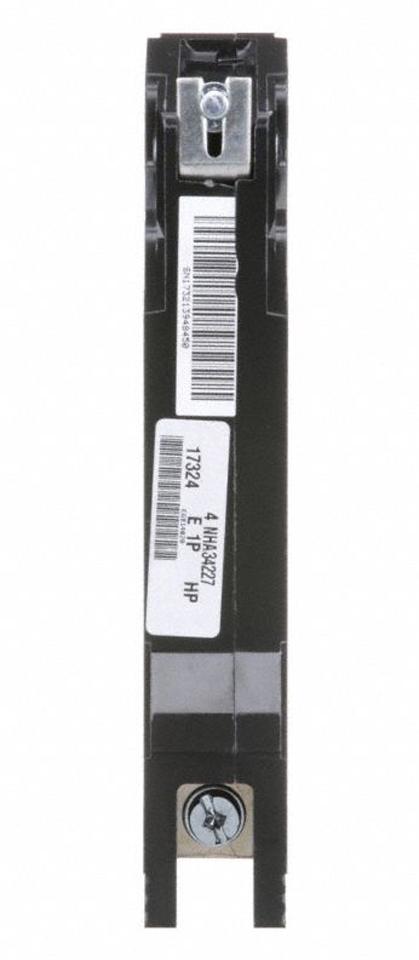

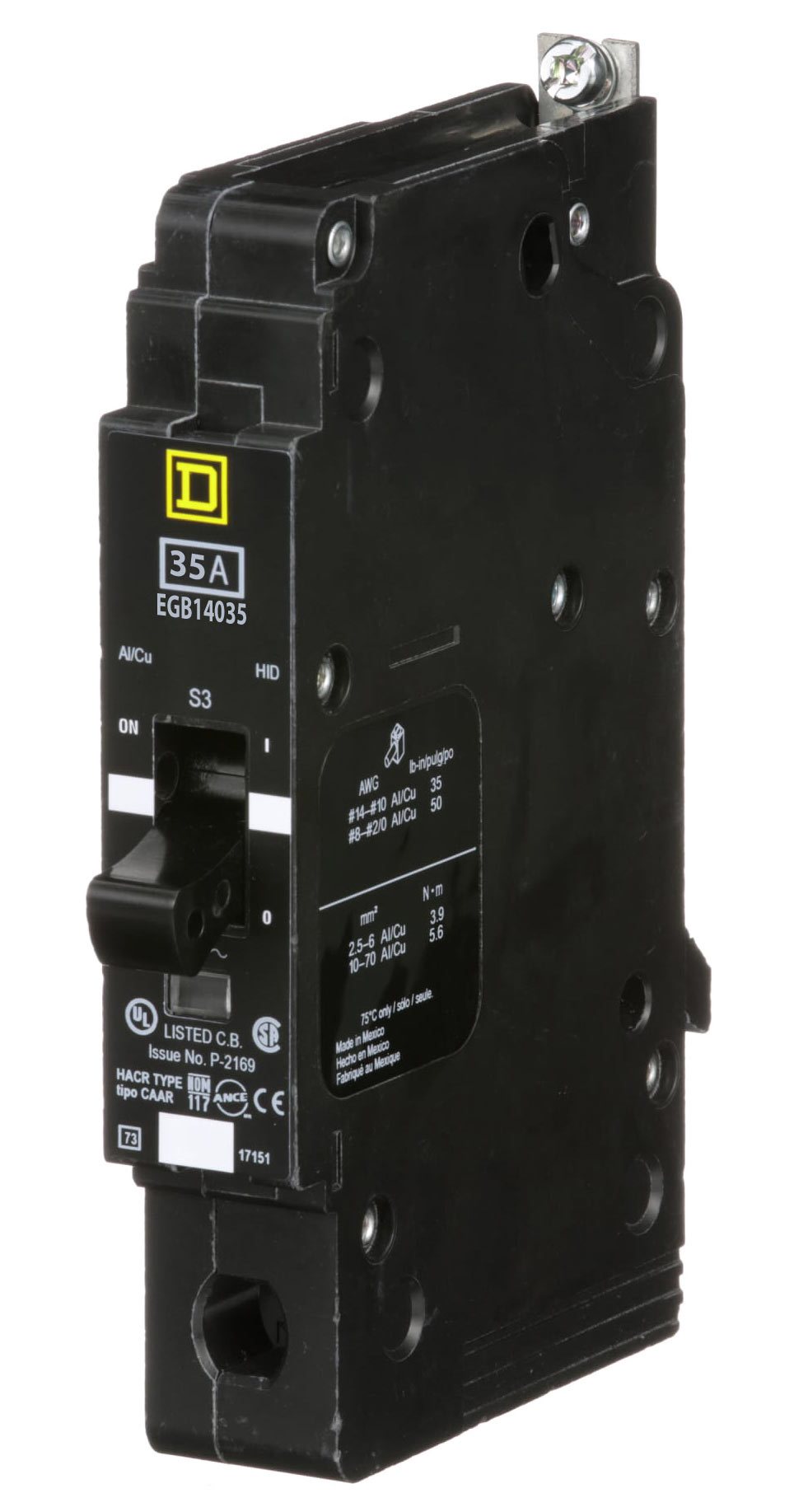

EGB14035 - Square D 35A 277V 1-Pole Bolt-On Thermal Magnetic Circuit Breaker E-Frame

EGB14035

EGB14035 is a Square D 35 Amp, 277 Volt, 1-Pole thermal magnetic molded case circuit breaker designed for bolt-on mounting.

This circuit breaker features an E-Frame design and provides reliable branch circuit protection with a thermal magnetic trip unit. It supports a maximum interrupt rating of 65kA at 120VAC and 35kA at 277VAC, ensuring high fault current interruption capability. The breaker is UL listed for use in both the US and Canada and is suitable for use in NF merchandised panelboards.

• Manufacturer: Square D
• Part Number: EGB14035
• Amperage: 35 Amps
• Voltage Rating: 277 VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Frame Type: E-Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65kA @ 120VAC, 35kA @ 277VAC
• Certifications: UL Listed (US and Canada)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB14035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 277
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901335184
• GTIN : 00785901335184
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.279
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
