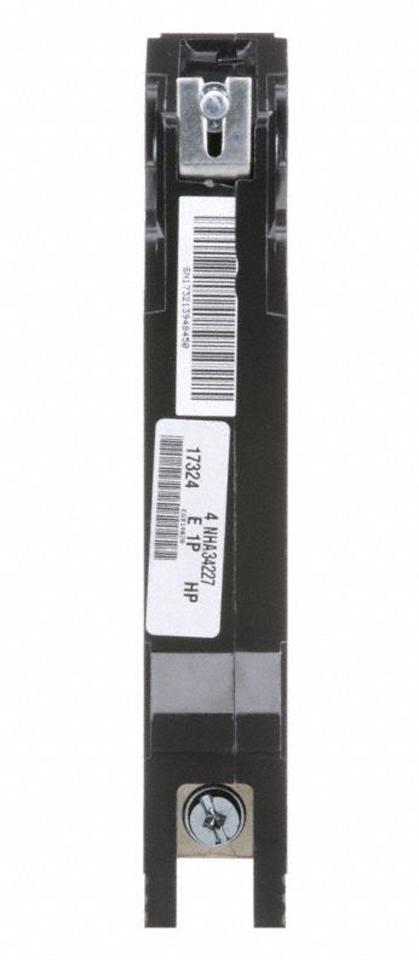

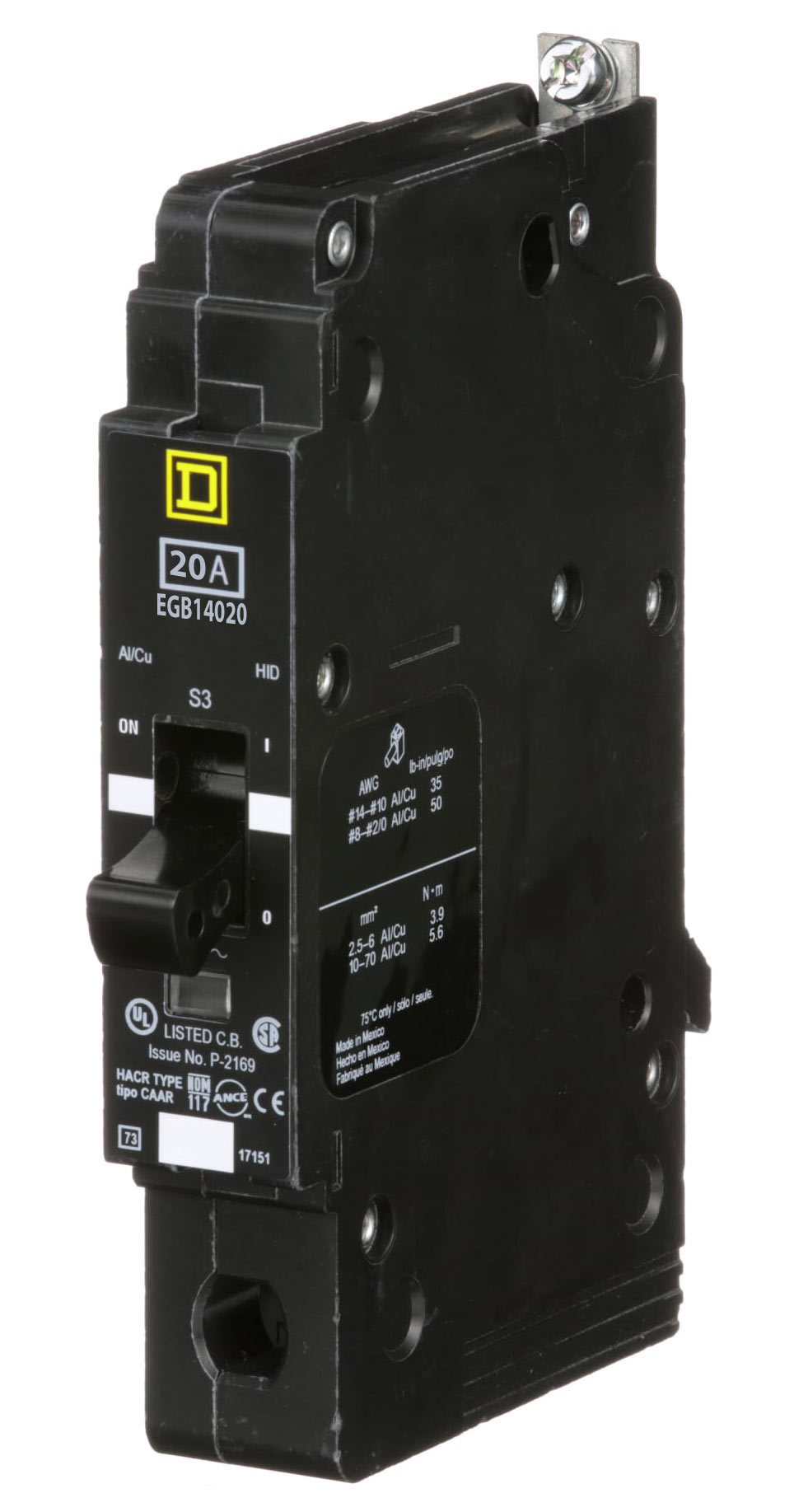

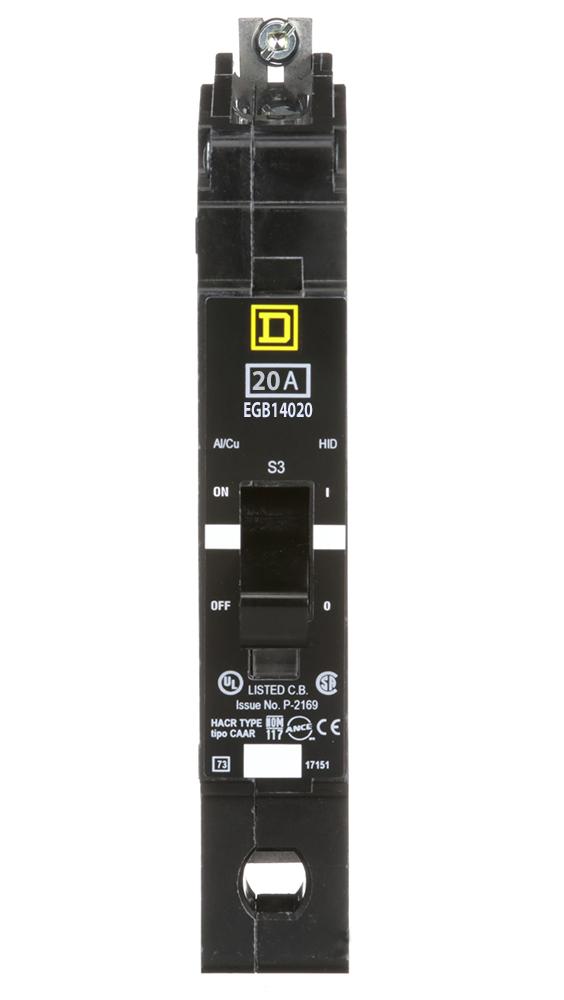

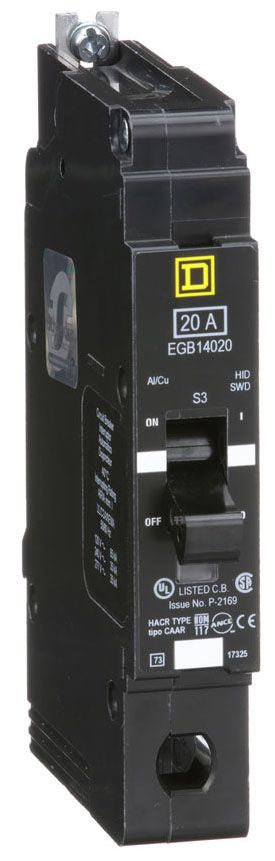

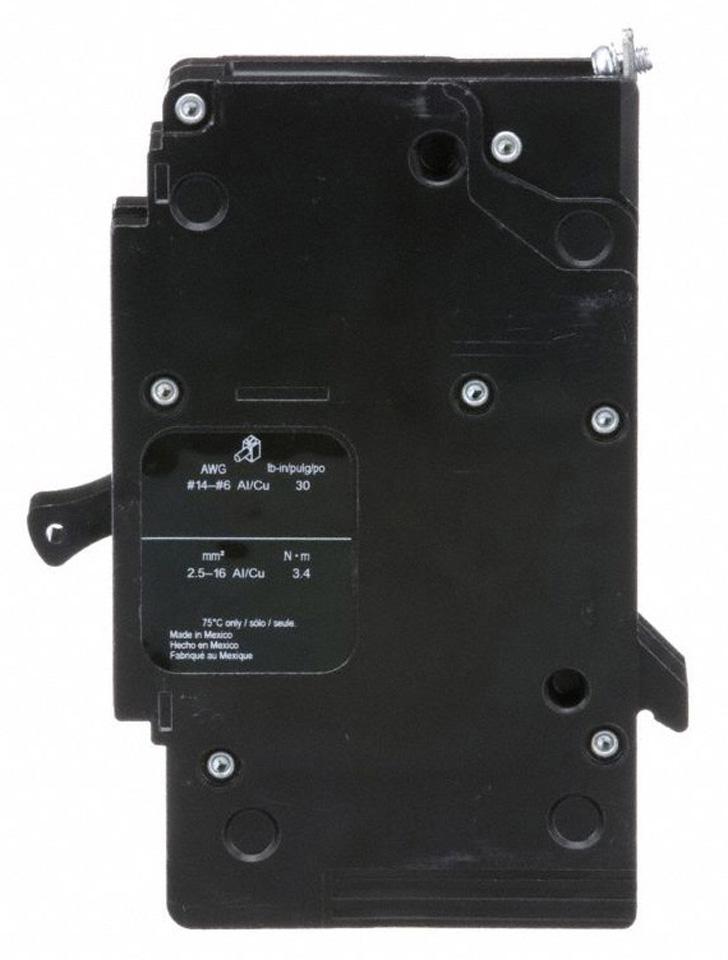

EGB14020 - Square D 20A 1-Pole 277V EGB Series Bolt-On Molded Case Circuit Breaker, 65kA Interrupt, Thermal-Magnetic Trip, UL/CSA Certified

EGB14020

EGB14020 is a Square D 20A, 1-pole, 277VAC bolt-on molded case circuit breaker designed for superior overload and short-circuit protection in lighting panelboards.

This EGB Series breaker features a thermal-magnetic trip unit for reliable long-time and instantaneous protection, with a robust E-Frame design and bolt-on mounting for secure installation. It is UL listed, CSA certified, and HOM compliant, ensuring safety and compliance for commercial and industrial applications.

Key Specifications
• Amperage: 20A
• Voltage: 277VAC (65kA max interrupt at 120V, 35kA at 277V)
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA max (120V), 35kA (277V)
• Series/Frame: EGB (E-Frame)
• Trip Unit: Thermal-Magnetic (LI – Long-Time & Instantaneous)
• Certifications: UL, CSA, cULus, HACR, HID
• Connection: Aluminum lugs
• Wire Range: AWG 14–6 (Cu), AWG 12–6 (Al)
• Actuator: Toggle
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB14020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : G; E-Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901072973
• GTIN : 00785901072973
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.35 lb
• Panel Type : NF panelboard
• Standards : cULus
• Certification : cULus
• Wire Size : AWG 14 to AWG 6, AWG 12 to AWG 6, Copper/Aluminum
