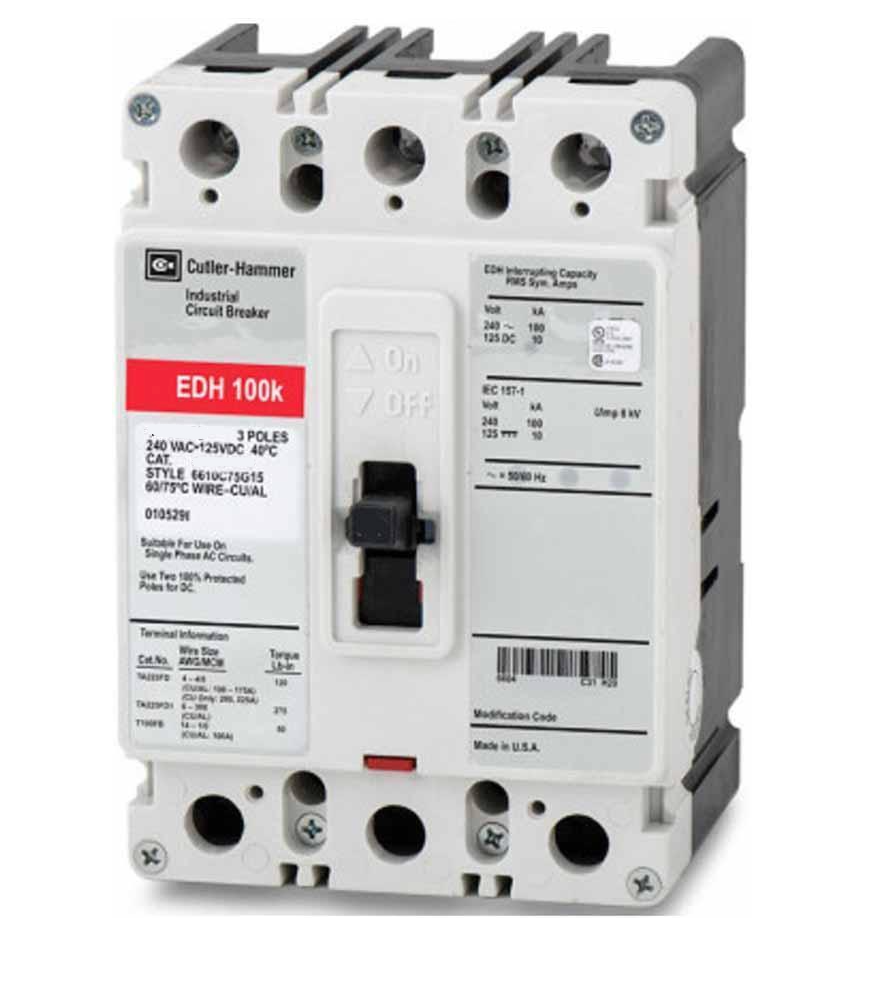

EDH3175W - Eaton Series C 3 Pole 175 Amp 240V Molded Case Circuit Breaker

EDH3175W

EDH3175W is a Series C molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This three-pole breaker features a fixed thermal magnetic trip unit and is rated for 175 amps at 240 volts. The EDH3175W is built for F-frame mounting and is suitable for applications requiring high interrupt capacity and robust performance. The EDH3175W is part of Eaton's Series C family, known for durability and consistent operation. It is designed for use in panelboards and switchgear where dependable circuit protection is essential. The breaker does not include terminals, making it ideal for busbar connections. Its compact design and high interrupt rating make it suitable for demanding environments.

• Part Number: EDH3175W
• Manufacturer: Eaton
• Series: Series C
• Frame: F-frame
• Poles: 3
• Amperage: 175 A
• Voltage: 240 VAC
• Interrupt Rating: 100 kAIC @ 240 VAC
• Mounting Type: F-frame
• Terminal Type: Busbar (No Lugs)
• Trip Unit: Fixed Thermal Magnetic
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: EDH3175W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDH
• Voltage : 240
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679455586
• GTIN : 00786679455586
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
