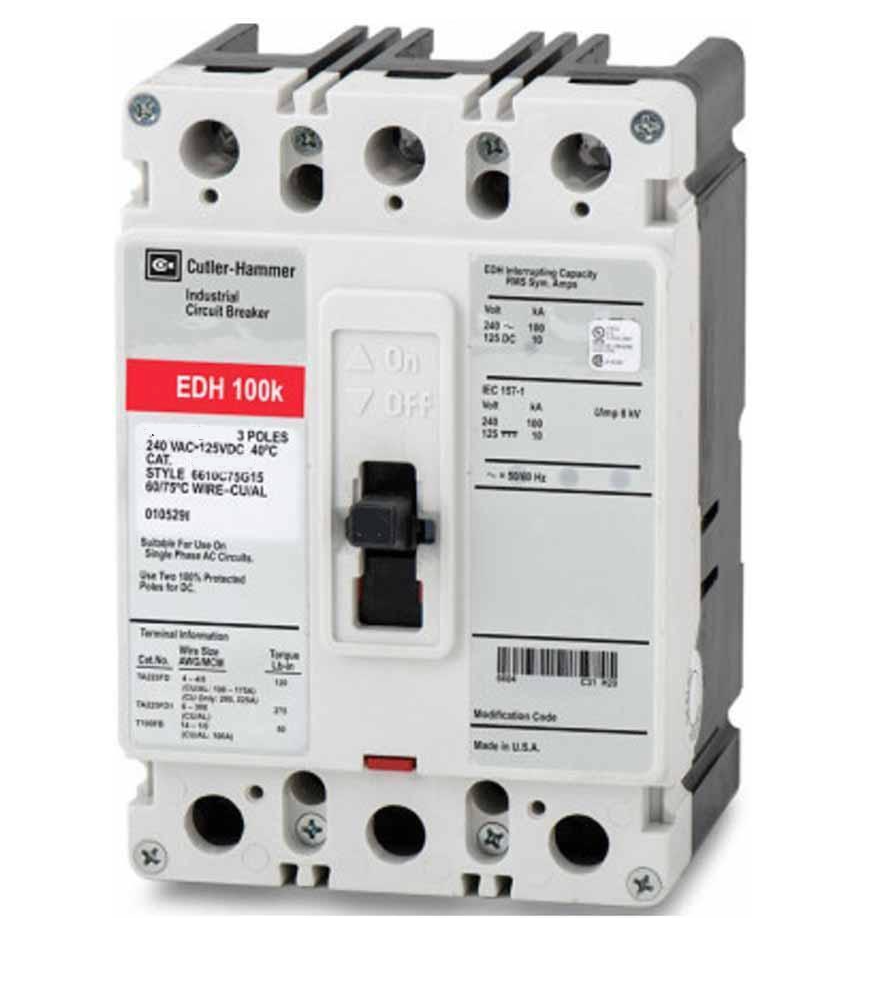

EDH3125W - Eaton 125A 240VAC 3 Pole Molded Case Circuit Breaker F-Frame Series C

EDH3125W

EDH3125W is a three-pole molded case circuit breaker from Eaton, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 125A current rating and is rated for 240VAC and 125VDC, making it suitable for a wide range of applications. The EDH3125W is part of Eaton's Series C F-frame lineup, offering a robust design with fixed thermal and fixed magnetic trip units. Its bolt-on mounting ensures secure installation and easy replacement. The breaker is engineered for high interrupt capacity and dependable performance in demanding environments.

• Part Number: EDH3125W
• Manufacturer: Eaton
• Series: Series C
• Frame: F-Frame
• Poles: 3
• Amperage Rating: 125A
• Voltage Rating: 240VAC, 125VDC
• Mounting Type: Bolt-On
• Interrupt Rating: 100kA @ 240V
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Circuit Breaker Type: Molded Case
• Application: Commercial and Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: EDH3125W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDH
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679455708
• GTIN : 00786679455708
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed
