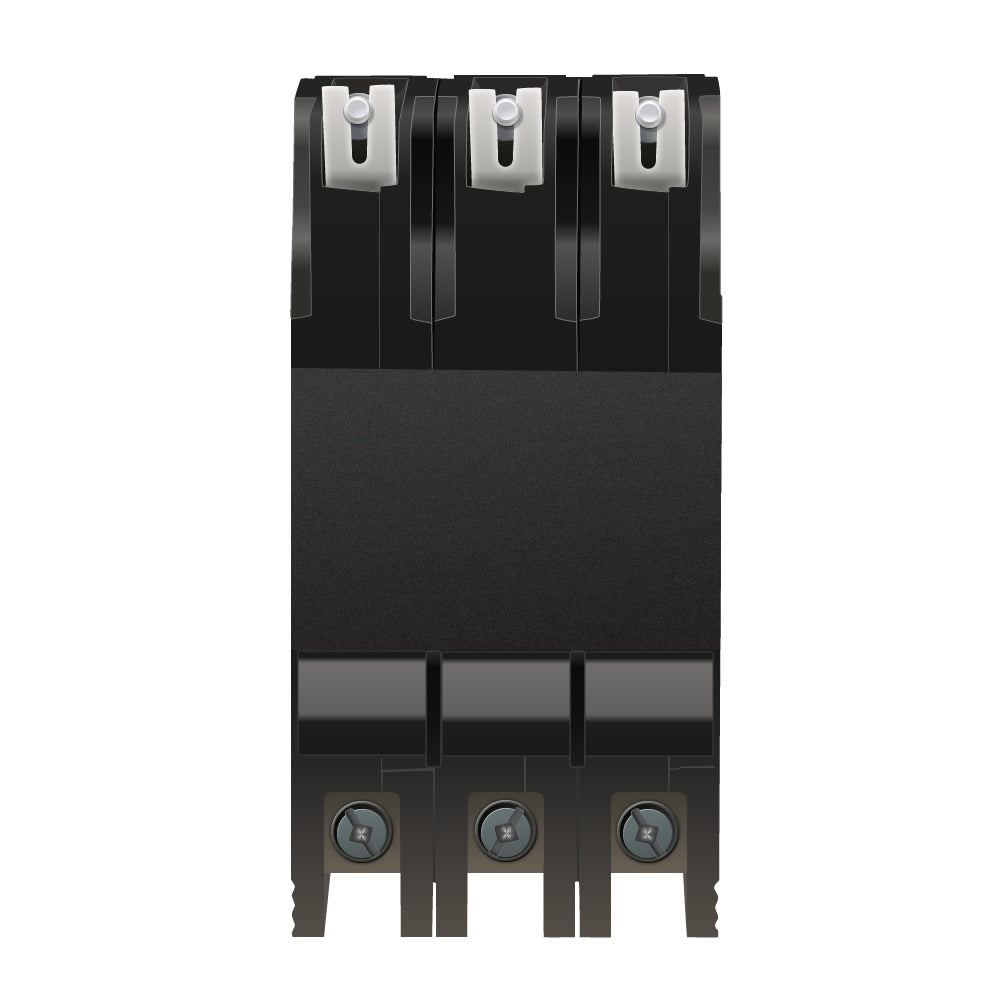

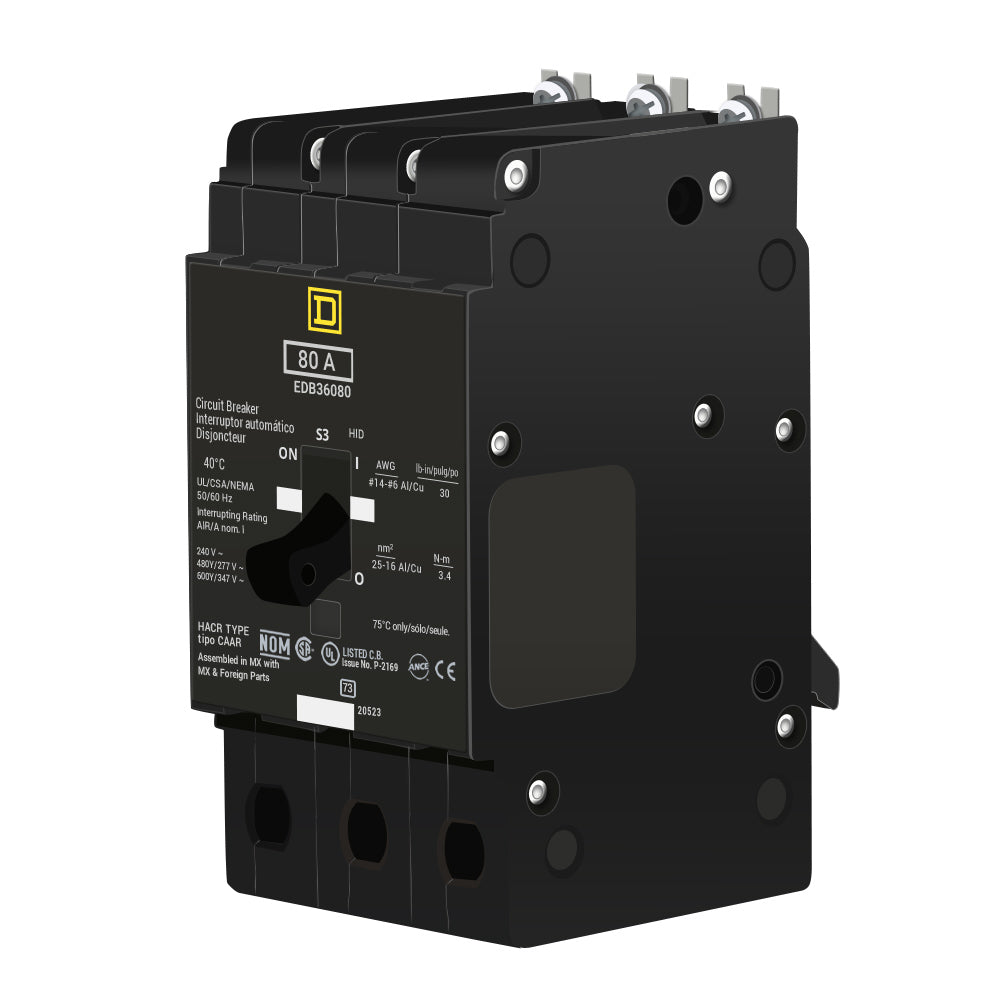

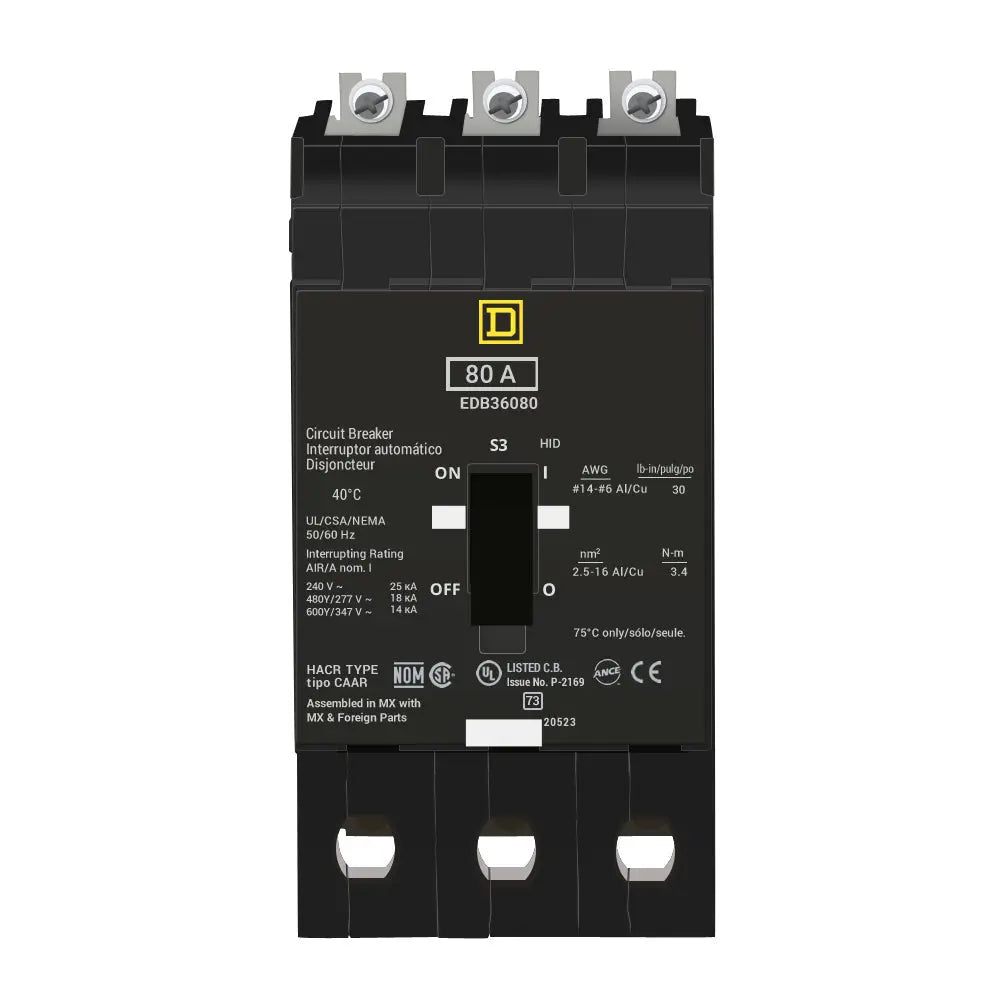

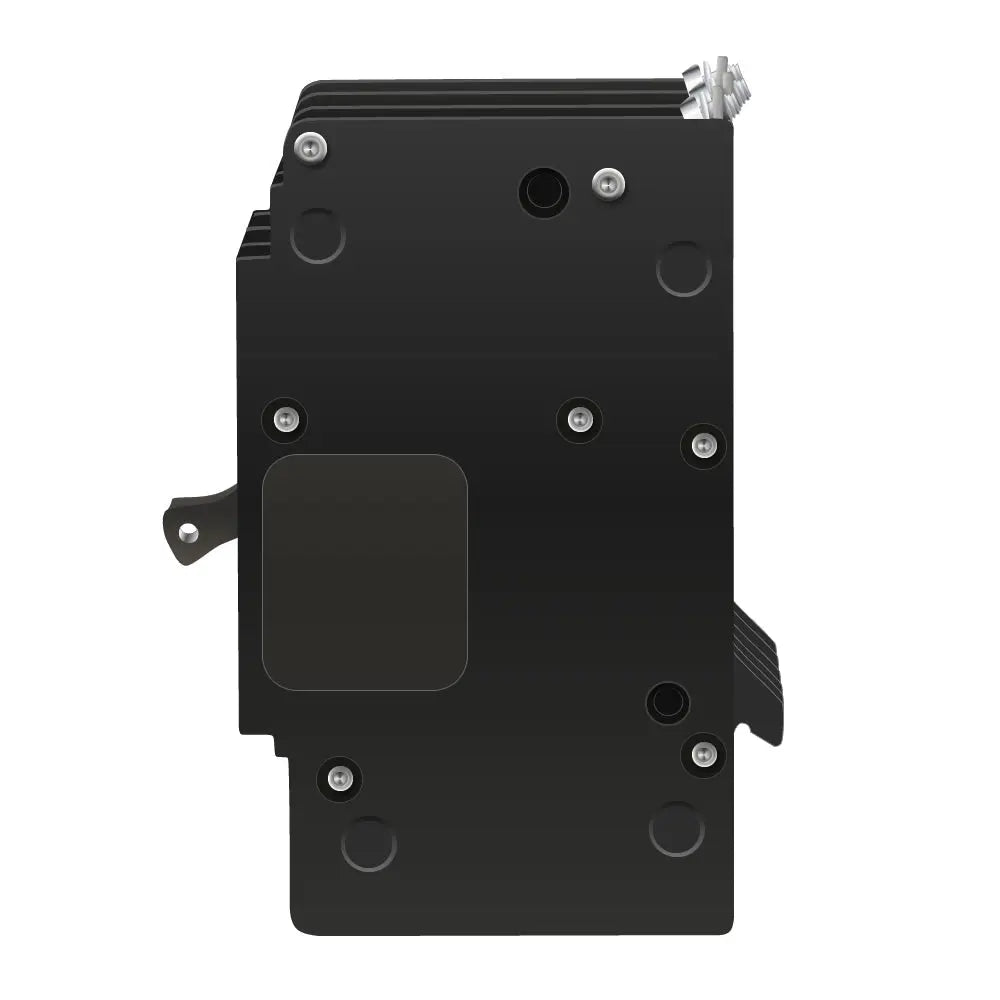

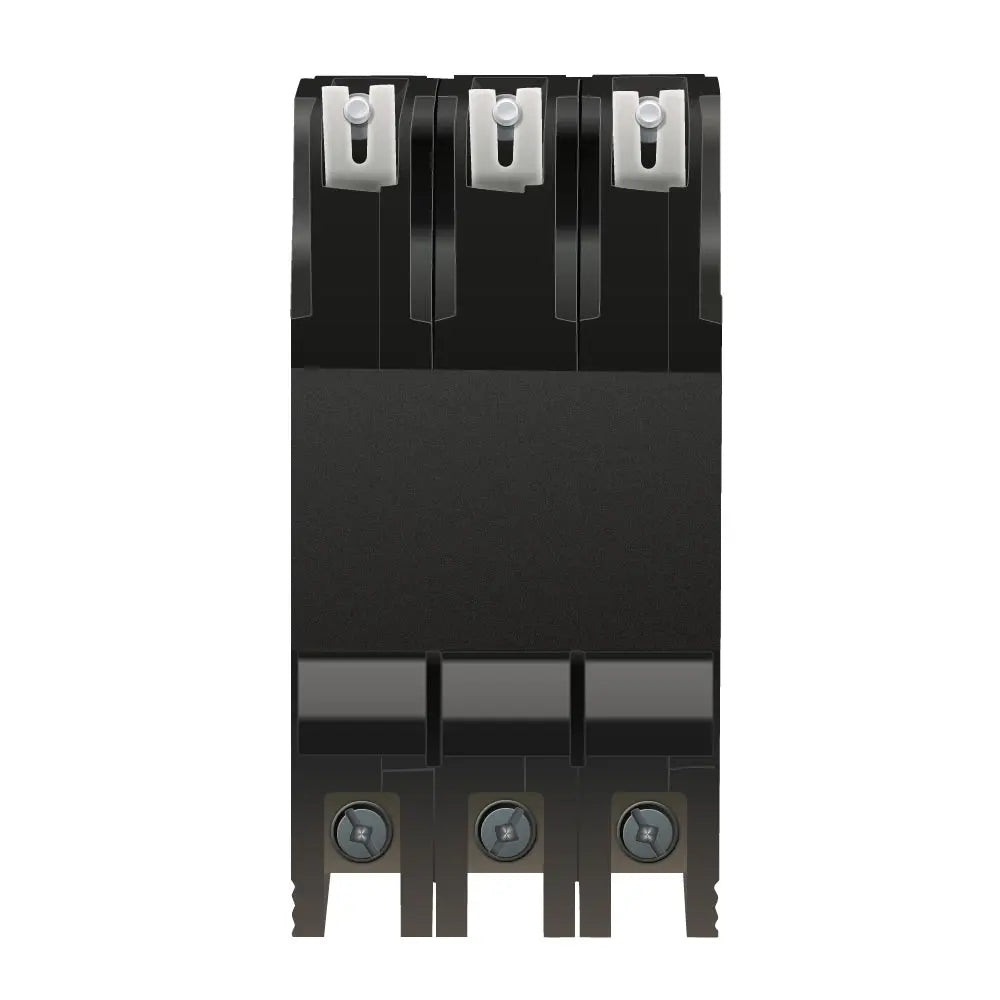

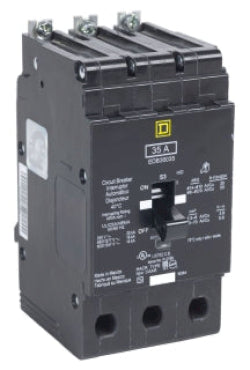

EDB36080 - Square D 80 Amp 600Y/347V 3-Pole Bolt-On Molded Case Circuit Breaker E-Frame

EDB36080

EDB36080 is a Schneider Electric E-Frame molded case circuit breaker rated at 80A, 3-pole, with bolt-on mounting for lighting panelboards.This thermal-magnetic circuit breaker provides superior overload and short-circuit protection with Visi-Trip indicator for faster troubleshooting. It features aluminum lugs accepting AWG 12-2/0 aluminum or AWG 14-2/0 copper wires, HACR-rated, and is calibrated for 40 degrees C operation at maximum voltage of 600Y/347 VAC.

• Part Number: EDB36080
• Manufacturer: Schneider Electric
• Amperage: 80A
• Poles: 3
• Voltage: 600Y/347 VAC
• Frame/Series: E-Frame / EDB
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
• Wire Range: AWG 12-2/0 Al, AWG 14-2/0 Cu
• Application: HID/HACR Rated
• Certifications: UL Listed, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901235088
• GTIN : 00785901235088
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.6
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
