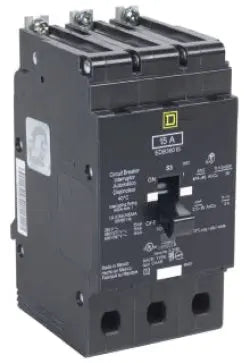

EDB36015 - Square D 15A 600Y/347VAC 3-Pole EDB Series Bolt-On Molded Case Circuit Breaker, 14kA Interrupt, Thermal Magnetic Trip, UL/CSA/CULus Listed

EDB36015

EDB36015 - Schneider Electric E-Frame molded case circuit breaker, 15A, 3-pole, thermal-magnetic trip for overload and short-circuit protection in lighting panelboards.This bolt-on miniature circuit breaker features a 600Y/347 VAC rating, E-Frame design, Visi-Trip indicator for faster troubleshooting, and aluminum/copper lug terminals. It provides superior protection with thermal-magnetic trip unit, hold current of 270A, and trip current of 875A, calibrated for 40 deg C operation.

• Part Number: EDB36015
• Manufacturer: Schneider Electric
• Amperage Rating: 15A
• Voltage Rating: 600Y/347 VAC
• Number of Poles: 3
• Frame Size: E-Frame
• Mounting Type: Bolt-On
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 18/25 kA
• Frequency: 50/60 Hz
• Wire Size: 12-6 AWG Al / 14-6 AWG Cu
• Special Features: Visi-Trip indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901233930
• GTIN : 00785901233930
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.609
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
