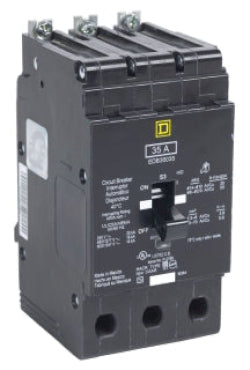

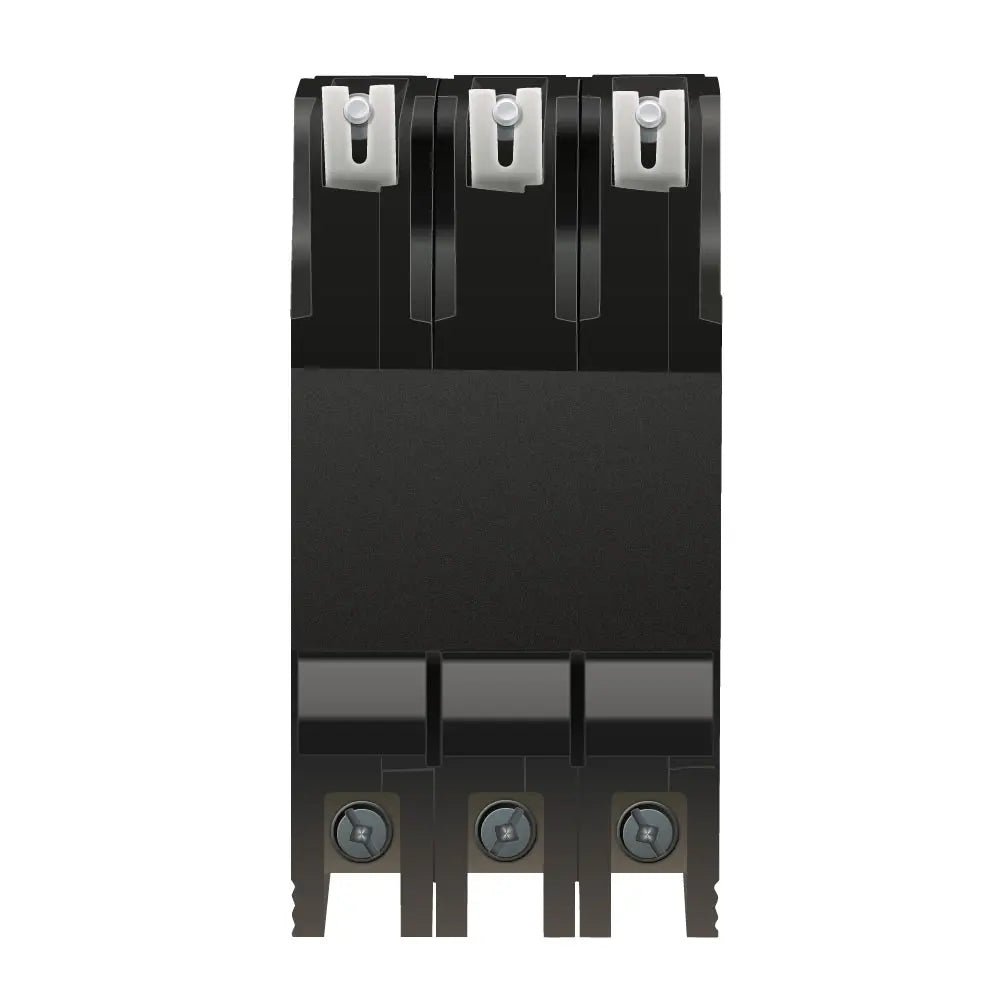

EDB36060 - Square D E-Frame 3 Pole 60A 600Y/347VAC Bolt-On Circuit Breaker, 25kA Max, HACR-Rated, Thermal Magnetic Trip

EDB36060

EDB36060 - Schneider Electric 3-pole E-Frame molded case circuit breaker rated at 60A, 600Y/347V AC with thermal-magnetic protection and bolt-on mounting.The EDB36060 is a miniature circuit breaker from the EDB series in the E-Frame family, designed for lighting panelboards with superior overload and short-circuit protection. It features Visi-Trip trip indication, thermal-magnetic trip unit with LI functions, and aluminum lugs compatible with AWG 12-6 aluminum or AWG 14-6 copper wires. Calibrated for 40C operation and rated for HID and HACR applications.

• Part Number: EDB36060
• Manufacturer: Schneider Electric
• Amperage: 60A
• Voltage: 600Y/347V AC
• Poles: 3
• Frame/Series: E-Frame / EDB
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14kA @ 600Y/347V AC
• Certifications: UL Listed, CSA
• Connection: Aluminum Lugs
• Application: HID-Rated / HACR-Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901235620
• GTIN : 00785901235620
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.596
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
